6. Hydrostride™ and Grab Bar Installation
6.
Hydrostride™ and Grab Bar Installation
By this point in the installation, the mounting kit should be installed, 1-1/2" (38mm) conduit should be routed, and
Hydrostride should be assembled and ready to be mounted on the pool wall.

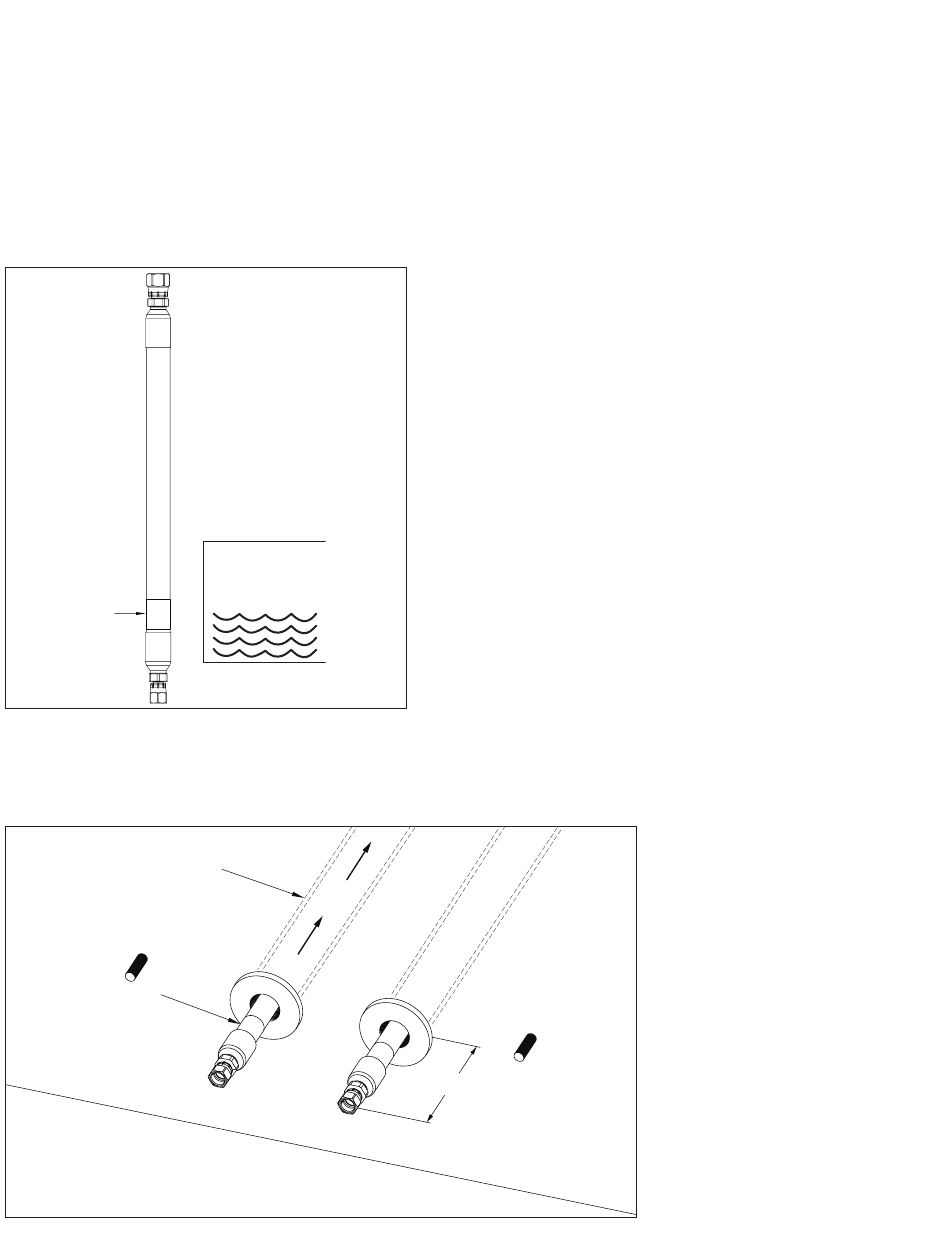

HYDRAULIC RUN HOSES
Each Hydraulic Run Hose has a white label (A) that reads "Pool" on the end that attaches to the Hydrostride in the pool
(Fig. 10).
IT IS CRITICAL TO VERIFY THAT THE HOSE END WITH THE POOL LABEL IS POOLSIDE AND THE OPPOSITE END IS
THE END THAT IS FED THROUGH THE CONDUIT TO BE ATTACHED TO THE HYDRAULIC POWER UNIT OUTSIDE THE
POOL.
A
Fig. 10
Route the Run Hoses (A) into the fittings from the inside of the pool and through the conduit (B) to the Hydraulic Power
Unit outside the pool. The hoses should extend no more than 6" (15cm) into the pool.
ON THE END OF EACH HOSE IS POOLSIDE
A
13
Pool
Pool
(Fig. 11).
B
6"
(15cm)
Fig. 11
AGAIN, VERIFY THE POOL LABEL
