Warning

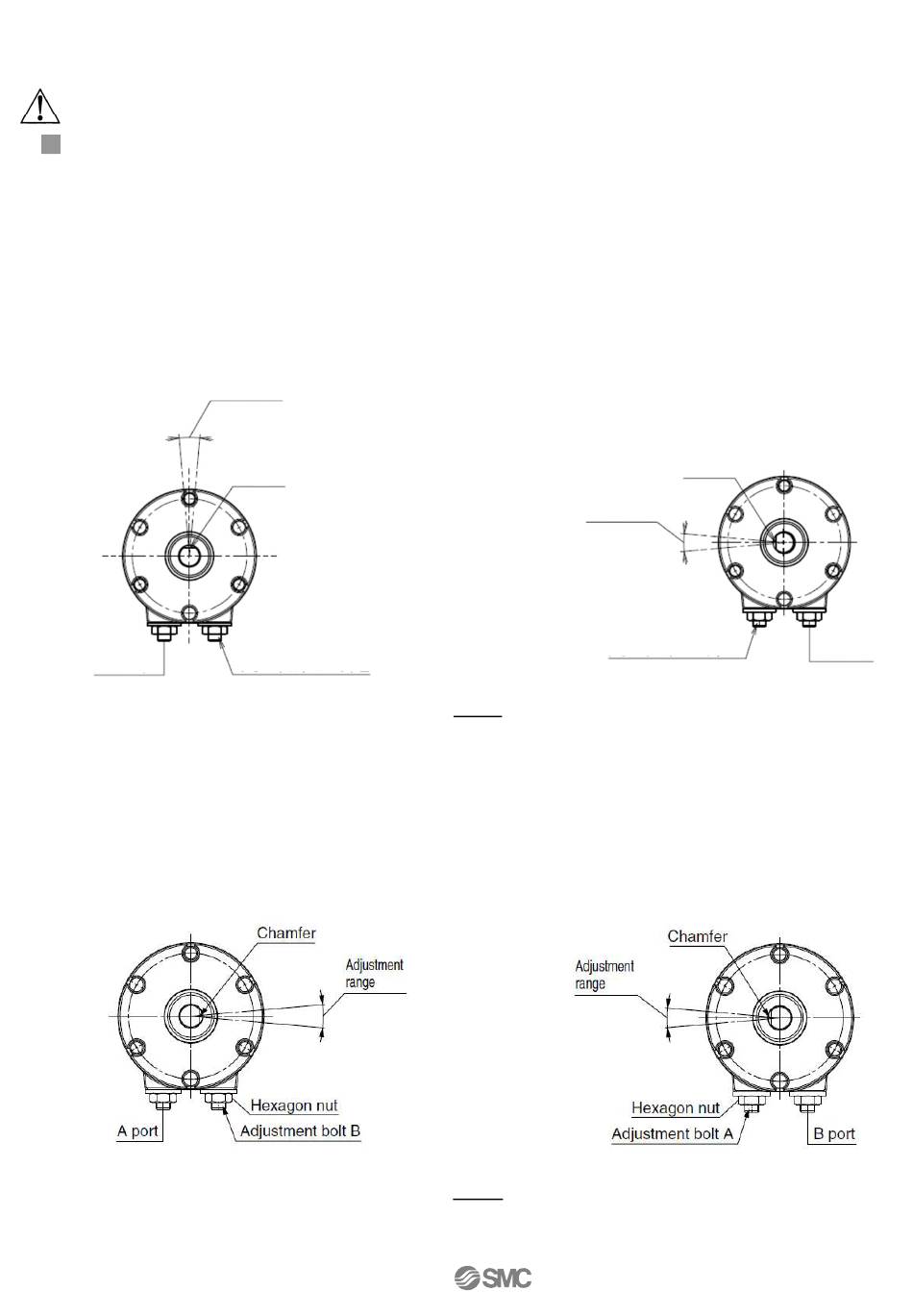

Adjusting the rotating angle

Do not apply a load when adjusting the rotating angle.
For size 20, 30 and 40, the rotation range can be set as shown in Fig.11 and 12 by adjusting
the adjustment bolt whilst supplying air to the opposite port.
*A Box wrench may be required to adjust the angle depending on the usage environment.
Example 1) For 90 degrees
(1) Set the adjustment bolt B while supplying
pressure from the A port.
Adjustment
A port
Example 2) For 180 degrees
(1) Set the adjustment bolt B while supplying
pressure from the A port.
Chamfer
Adjustment bolt B
(2) Set the adjustment bolt A while supplying
pressure from the B port.
Adjustment range
Adjustment bolt A
Fig.11
(2) Set the adjustment bolt A while supplying
pressure from the B port.
Fig.12
30
Chamfer
B port
