Double Vane (Size 15,20,30,40)

For 90°

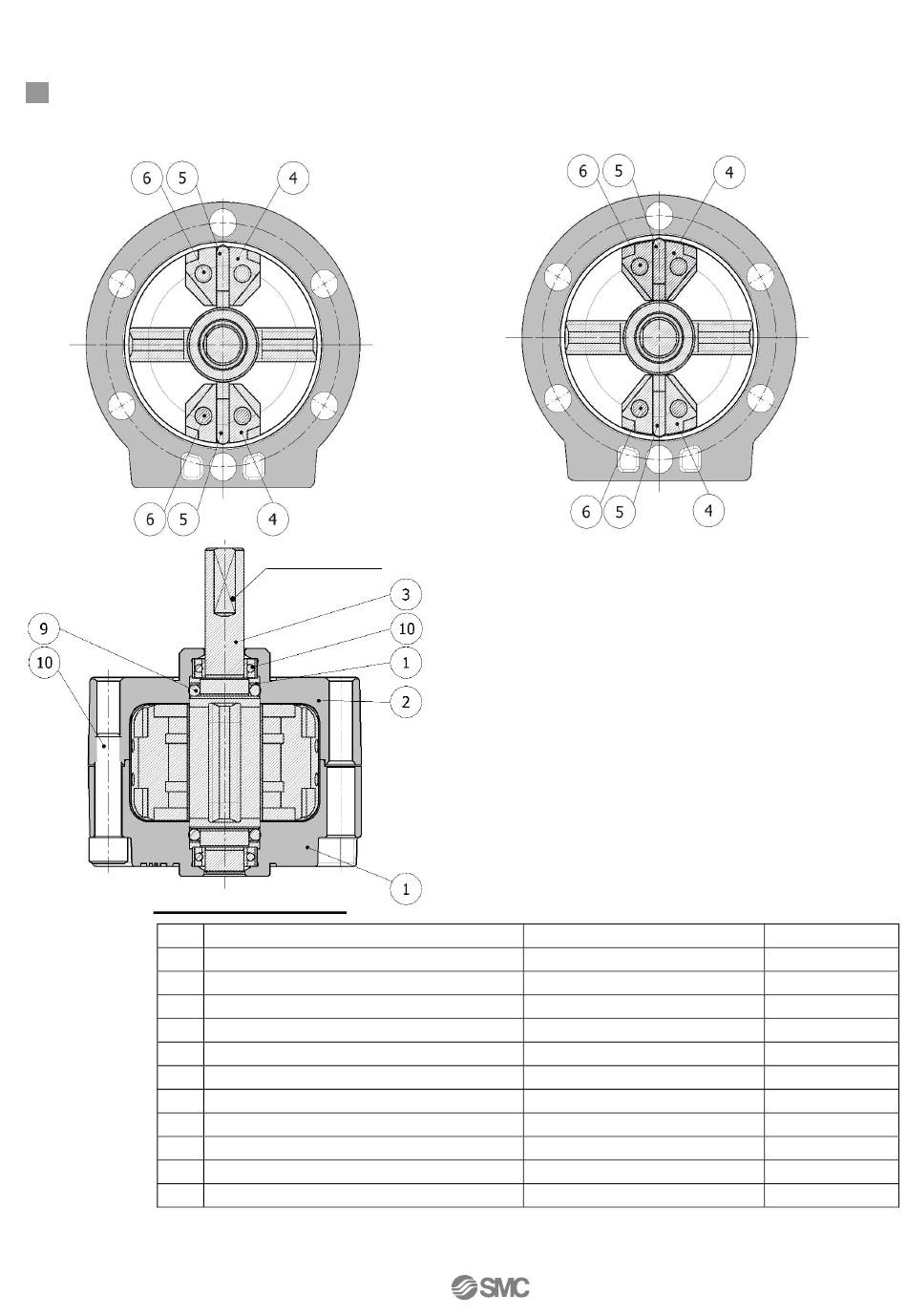

Component Parts
No.
1 Body (A)
2 Body (B)
3 Vane shaft
4 Stopper
5 Stopper seal
6 Stopper pin
7 Back-up ring
8 Bearing
9 O-ring
10 Hexagon socket head cap screw
11 Parallel key
* The material is chrome molybdenum steel for sizes 30 and 40.
⑪ F or size 40
Description
For 100°
* The left figures show the position of
the ports during rotation.
Material
Aluminum alloy
Aluminum alloy
Stainless steel *
Resin
NBR
Bearing steel
Stainless steel
Bearing steel
NBR
Chrome molybdenum steel
Carbon steel
24
D
Note
Painted
Painted
Special seal
Special screw
For size 40
