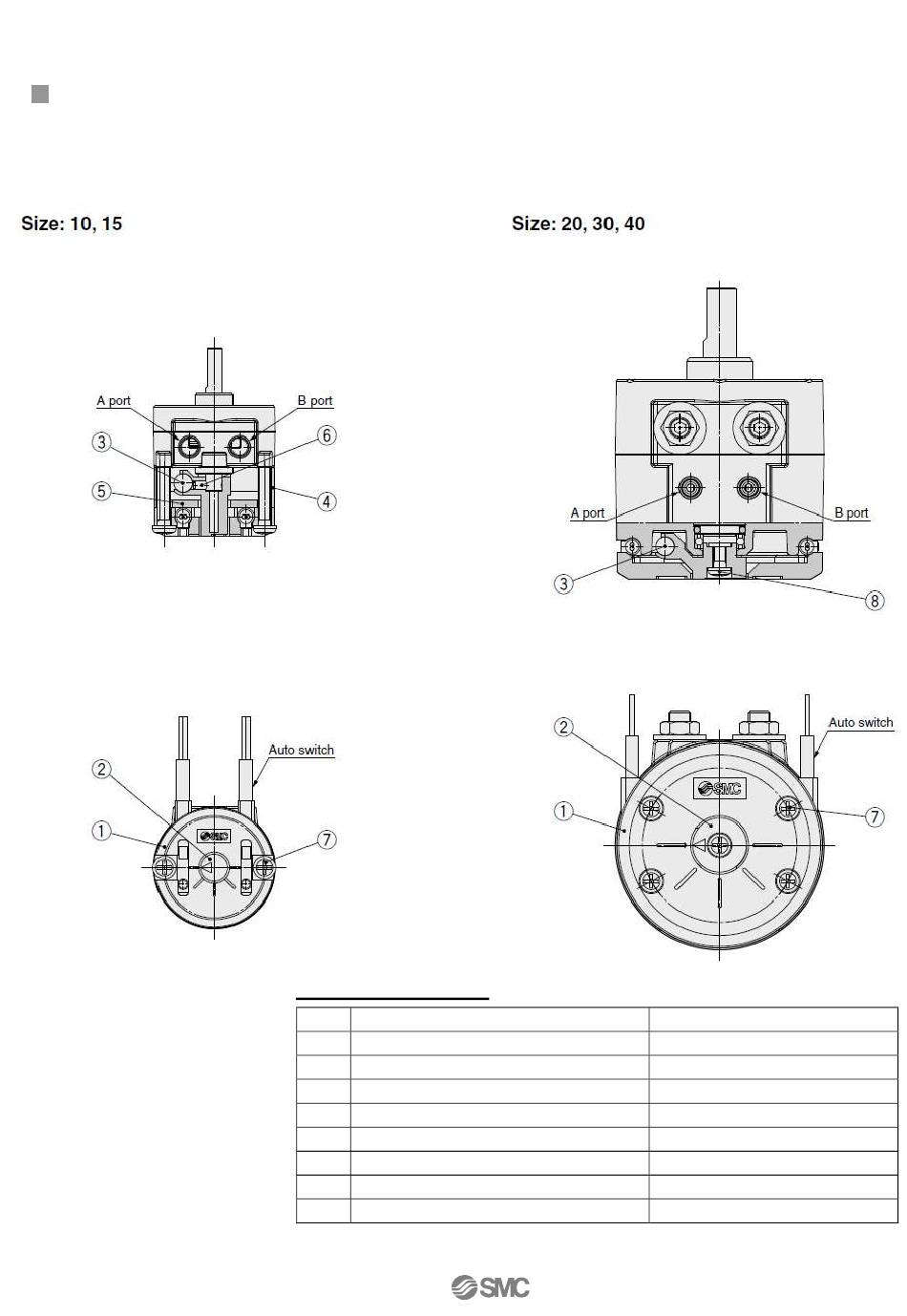

With Auto Switch (Single Vane: 90°,180°Specifications)
Note: The single vane 270° and double vane specifications do not have this structure.
For details, please refer to the instruction manual No. JCRB-OM0002.
For details, please refer to the instruction manual No. JCRB-OM0002.
* For models with auto switch, only 90° and 180° can be selected.
Component Parts
No. Description
1 Cover
2 Magnet holder
3 Magnet
4 Body C
5 Switch plate
6 Spring pin
7 Cross recessed round head screw
8 Cross recessed round head screw
* The material is stainless steel for sizes 10 and 15.
25
Material
Resin
Resin
Magnetic material
Resin
Aluminum alloy
Stainless steel
Chrome molybdenum steel *
Chrome molybdenum steel
D
