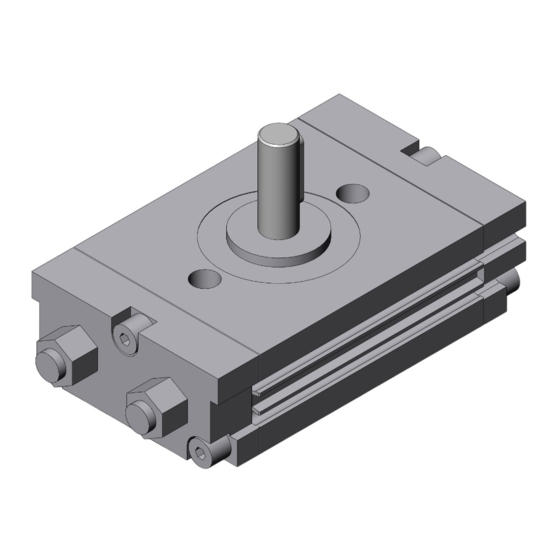

- Page 1 Doc. No. DII-14200-OM002-A PRODUCT NAME Low-Speed Rotary Actuator MODEL / Series / Product Number CRQ2X...
-
Page 2: Table Of Contents
Contents Safety Instructions Outline How to order Specifications Weight Effective torque Rotation range Internal construction and parts Size 10, 15 Size 20, 30, 40 Basic circuit Circuit structure Mounting Load restrictions Operation of axis fitting referring Unit used as flange mount Rotating range examples Air supply Setting of rotation time... -
Page 3: Safety Instructions
Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations. - Page 4 Safety Instructions Caution 1.The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary. If anything is unclear, contact your nearest sales branch.
- Page 5 Design / Selection Warning 1. Confirm the specifications. Products represented in this catalog are designed only for use in compressed air systems. Do not operate at pressures or temperatures, etc., beyond the range of specifications, as this can cause damage or malfunction. (Refer to the specifications.) Please contact SMC when using a fluid other than compressed air.
- Page 6 12. Select a speed within the product’s allowable energy value. If the product’s kinetic energy of the load exceeds the allowable value, it could damage the product, and cause a hazard to humans and damage the machinery and equipment. 13. Provide a shock absorber if the kinetic energy that is applied to the product exceeds the allowable value.
- Page 7 Mounting Warning 1. Operation manual Install the product and operate it only after reading the operation manual carefully and understanding its contents. Also, keep the manual in a location where it can be referred to as necessary. 2. Ensure sufficient space for maintenance activities. When installing the products, allow access for maintenance.
- Page 8 12. Place an external stopper in a position that is away from the rotating table. If the stopper is placed near the rotating table, the torque that is generated by the product itself will cause the reaction force which is directed to the stopper to be redirected and applied to the rotating table. This will lead to the breakage of the rotating table and bearing.
- Page 9 Caution 1. Do not use organic solvent to wipe the area of the name plate that shows the model. It will erase what is indicated on the name plate. 2. Do not hit the rotating table by securing the body or hit the body by securing the rotating table.
- Page 10 Lubrication Warning 1. This product should be used without lubrication. Although it will operate even if it is lubricated, it could lead to sticking or slipping. Air Supply Warning 1. Type of fluids Please consult with SMC when using the product in applications other than compressed air. 2.
- Page 11 Operating Environment Warning 1. Do not use in an atmosphere having corrosive gases, chemicals, sea water, water, steam, or where there is direct contact with any of these. Refer to the construction for information on the rotary actuator material. 2. Do not expose the product to direct sunlight for an extended period of time. 3.
- Page 12 Auto Switches Precautions Design / Selectio Warning 1. Confirm the specifications. If the product is used with excess load applied or beyond the specification range, this may cause the product to break or malfunction. We do not guarantee against any damage if the product is used outside of the specification range.
- Page 13 8. Keep wiring as short as possible. <Reed> As the length of the wiring to a load gets longer, the rush current at switching ON becomes greater, and this may shorten the product’s life. (The switch will stay ON all the time.) 1) Use a contact protection box when the wire length is 5m or longer.
- Page 14 11. Pay attention to leakage current. <2-wire type> Current (leakage current) flows to the load to operate the internal circuit even when in the OFF state. > Operating current of load (OFF condition) Leakage current If the criteria given in the above formula are not met, it will not reset correctly (stays ON).Use a 3-wire switch if this specification will not be satisfied.
- Page 15 6. Check the actual actuation status and adjust the auto switch mounting position. According to the installation environment, the rotary actuator may not operate even at its proper mounting position. Even when setting at a midpoint of the stroke, check the actuation status and make the adjustment in the same manner.
- Page 16 7. Avoid incorrect wiring. <Reed> A 24 VDC auto switch with indicator light has polarity. The brown lead wire or terminal No.1 is (+), and the blue lead wire or terminal No.2 is (－). 1) If connections are reversed, an auto switch will operate, however, the light emitting diode will not light Also, take note that a current greater than that specified will damage a light emitting diode and it will no longer operate.
- Page 17 2. Do not use in an environment where the auto switch will be continually exposed to water. Although auto switches satisfy IEC standard IP67 construction expect some models (D-A3□, A44□, G39□, K39□, RNK, RPK) do not use auto switches in applications where continually exposed to water splash or splay.
- Page 18 Caution 1. Perform the following maintenance periodically in order to prevent possible danger due to unexpected auto switch malfunction. 1) Secure and tighten auto switch mounting screws. If screws become loose or the mounting, position is dislocated, retighten them after readjusting the mounting position.
-
Page 19: Outline
Outline This operation manual is for rack pinion type low-speed rotary actuator. Cautions will be given on the load (inertia moment), rotation time and others. Please read through the manual before starting operation. How to order － CRQ2 X Standard －... -
Page 20: Specifications
Specifications Table 1. Specifications Size Operating fluid Air（Non-lube） Max. operating pressure 0.7 MPa 1 Mpa Min. operating pressure 0.15 Mpa 0.1 MPa Ambient temp. and operating fluid 0 to 60C（No freeze） temp. Cushion None ±5 Angle adjustment Rotation angle 80to100, 170to190 Rc 1/8 , G 1/8，... -
Page 21: Effective Torque
Effective torque Operating pressure (MPa) Graph.1 Effective torque Rotation range When pressurized from the Port A, the shaft will rotate clockwise. Flat face and parallel key position indicate B port is pressurized. Key or flat Key or flat Port B Port B Port A Port A... -
Page 22: Internal Construction And Parts
Internal construction and parts Size 10, 15 Heat transferred label Seal washer Piston seal End cover gasket Cover gasket Seal Type CS retaining ring Bearing Cross recessed No.0 screw Cross recessed No.0 screw Hexagon socket head screw Adjust bolt Hexagon nut Magnet Only magnet built-in type included Wearing... -
Page 23: Size
Size 20, 30, 40 Heat transferred label Steel ball Seal washer Piston seal Gasket Seal Type CS retaining ring Parallel key Bearing Cross recessed No.0 screw Cross recessed socket head screw Hexagon socket head bolt Adjust bolt Small hexagon nut Magnet Only magnet built-in type included Wearing... -
Page 24: Basic Circuit
Basic circuit Circuit structure The standard circuit for operating a rotary cylinder with an air filter, regulator, solenoid valve and speed controller is shown in Figure 1 below. Regulator Speed controller Air filter Solenoid valve Rotary actuator Fig.1 Basic circuit -23-... -
Page 25: Mounting
Mounting Load restrictions Table of load below shows the allowable load when no moving load applied to axis direction. Avoid applying load. to the axis directly as much as possible. （N） Table 4 Allowable load Load direction Size ※Fr 15.7 14.7 19.6 19.6... -
Page 26: Unit Used As Flange Mount
Also, if pipe tape is used, leave 1.5 to 2 thread ridges exposed at the end of the threads. Sealant tape Winding direction Fig. 7 Wrapping of pipe tape Expose approx. 2 threads Air supply Air supplied to the rotary actuator shall be cleaned by the filter. CRQ2X series is lubrication free. -25-... -
Page 27: Setting Of Rotation Time
Setting of rotation time It is necessary to calculate the inertial load and kinetic energy in the application prior to setting the speed of the actuator. The inertial load generated in the application may be high even if the torque required in the application is low, this may lead to damage to the internal components of the actuator. -
Page 28: Calculation Formulae For Moment Of Inertia
Calculation formulae for moment of inertia I: Moment of inertia [ kg・m ] m: Load mass [ kg ] 1. Thin shaft 6. Thin round plate Position of rotational axis: Perpendicular to the Position of rotational axis: Through the center of shaft through the center of gravity diameter ・... -
Page 29: Kinetic Energy
Kinetic energy Table shows the allowable kinetic energy of the rotary actuator. The end angular speed ω is obtained by: ２ ω＝ Table 7 Allowable kinetic energy Size Allowable kinetic energy θ: Rotation angle [ rad ] 0.00025 ｔ: Rotation time [ s ] 0.00039 0.025... -
Page 30: Auto Switch
Auto switch The rotary actuator has a magnet mounted on its piston and an auto switch on the outside of the body to detect the piston position (table position). Rotary actuators have a short piton stroke, so detection should be done at the stroke end. Refer to page 18 for mountable auto switches. -
Page 31: Size
Auto switch proper mounting position at rotation end Use small driver (5 or 6mm of grip diameter) to tighten auto switch set screws with 0.05 to 0.15 N･m (for D-M9*), 0.1 to 0.2 N･m (for D-A9*) of tightening torque. Use slotted setscrew (with urethane damper) as setscrew. Fig.11 Table 9 Reed auto switch... -
Page 32: Maintenance And Inspection
Maintenance and Inspection Periodic inspection is necessary for optimum use. Generally, annual inspection is recommended for the rotary actuator. Even if no problem is found, seal parts replacement is recommended every three years. It is highly possible that the actuator is operated out of specification when the components like pinion, piston, bearing are broken. - Page 33 ■Disassembly procedure （1）Loosen cross recessed no.0 screw（size 10,15）or roundhead screw（size 20,30,40）. （2）Pull out the bearing retainer and the shaft from the body. Remove the bearing from the housing at this time. （3）Loosen hexagon socket head bolt to remove the cover assembly and the end cover assembly. （4）Push piston assembly from one side to pull out two piston assembly from the body.
-
Page 34: Piston Seal
■Assemble procedure （1）Clean each component sufficiently before assembled to prevent a dust from attaching. Apply the grease which is enclosed to the seal set to each part shown in Table 11. The referential amount of applied grease is to the extent which can brighten the surface of components. After that, mount a piston seal to a piston with care not to damage the piston seal. - Page 35 Cover assembly Cover Seal Plate Cover gasket Gasket Cross recessed No.0 screw Size 10,15 Size 20,30,40 [Tightening torque] 0.08 to 0.13N･m Fig.15 Insert and attach the cushion packing and the seal with the direction in the drawing below. Seal Cover （Cross section・Expansion）...
-
Page 36: Type Cs Retaining Ring
End cover assembly Gasket End cover gasket End cover Adjust bolt assembly Size 10･15 Size 20･30･40 Fig.18 (2) Insert the piston Assembly to the body. At this time, the piston seal passes the opening of the cylinder and should be pressed inward not to be scratched. Also, mind the mounting orientation of the piston.（See fig.19）... - Page 37 (3) Mount the shaft and bearing to the body. The shaft should be mounted by positioning the piston assembly with reference to the flat of the shaft (size 10 and 15) and key (size 20, 30 and 40). Bearing Shaft Body Size 10（90°）...
-
Page 38: Cross Recessed No.0 Screw
(4) Mount the bearing retainer and tighten cross recessed No.0 screw or cross recessed round head screw. Size 10,15 Cross recessed No.0 screw Size 20,30,40 Cross recessed roundhead screw Bearing retainer Size Tightening torque 0.2 to 0.3N･m 0.3 to 0.5N･m 0.6 to 0.8N･m 0.6 to 0.8N･m Fig.21... -
Page 39: Troubleshooting
Troubleshooting Problem Possible cause Solution Supply pressure is not applied Correctly set the regulator at the supply correctly. pressure side. The directional switching Correctly apply a signal to the directional valve (such as a solenoid switching valve (such as a solenoid valve). valve) does not switch. - Page 40 Problem Possible cause Solution Replace the rotary actuator with the new one. Then calculate the kinetic energy applied to the The pinion gear is Excessive kinetic energy was rotary actuator and adjust the load and rotation broken. applied to the rotary actuator. speed to make the value within the allowable kinetic energy.
- Page 41 Revision history 【A】The contents have been revised to the latest version 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 https://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. ©...
