Double Vane (Size 10)

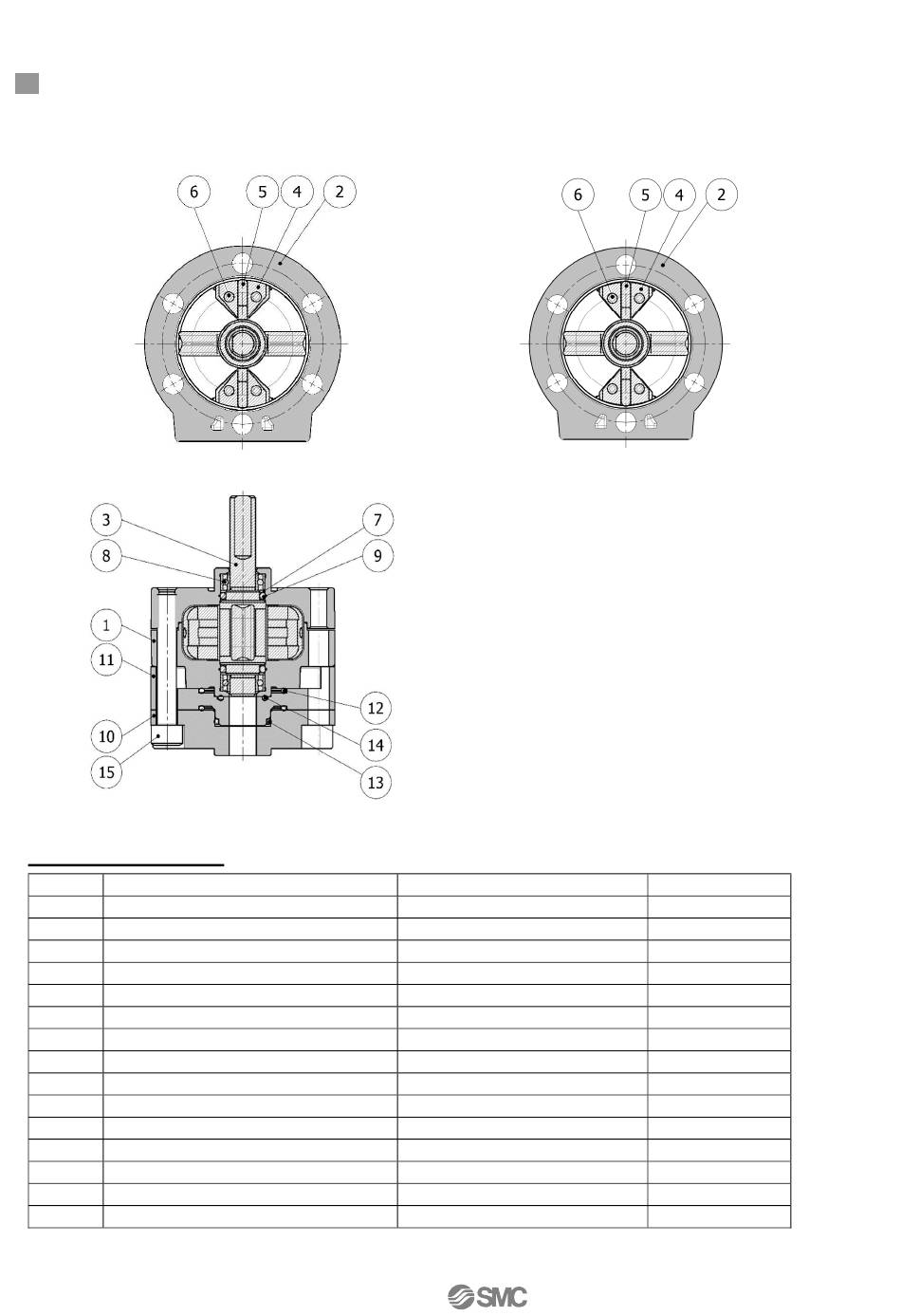

Component Parts
No. Description
1 Body (A)
2 Body (B)
3 Vane shaft
4 Stopper
5 Stopper seal
6 Stopper pin
7 Back-up ring
8 Bearing
9 O-ring
10 Cover(D)
11 Plate
12 Gasket
13 O-ring
14 O-ring
15 Hexagon socket head cap screw
For 90°
* The left figures show the position of
the ports during rotation.
Material
Aluminum alloy
Aluminum alloy
Chrome molybdenum steel
Resin
NBR
Bearing steel
Stainless steel
Bearing steel
NBR
Aluminum alloy
Resin
NBR
NBR
NBR
Chrome molybdenum steel
23
For 100°
Note
Painted
Painted
Special seal
Special screw
