Warning

Adjusting the rotating angle

Do not apply a load when adjusting the rotating angle.

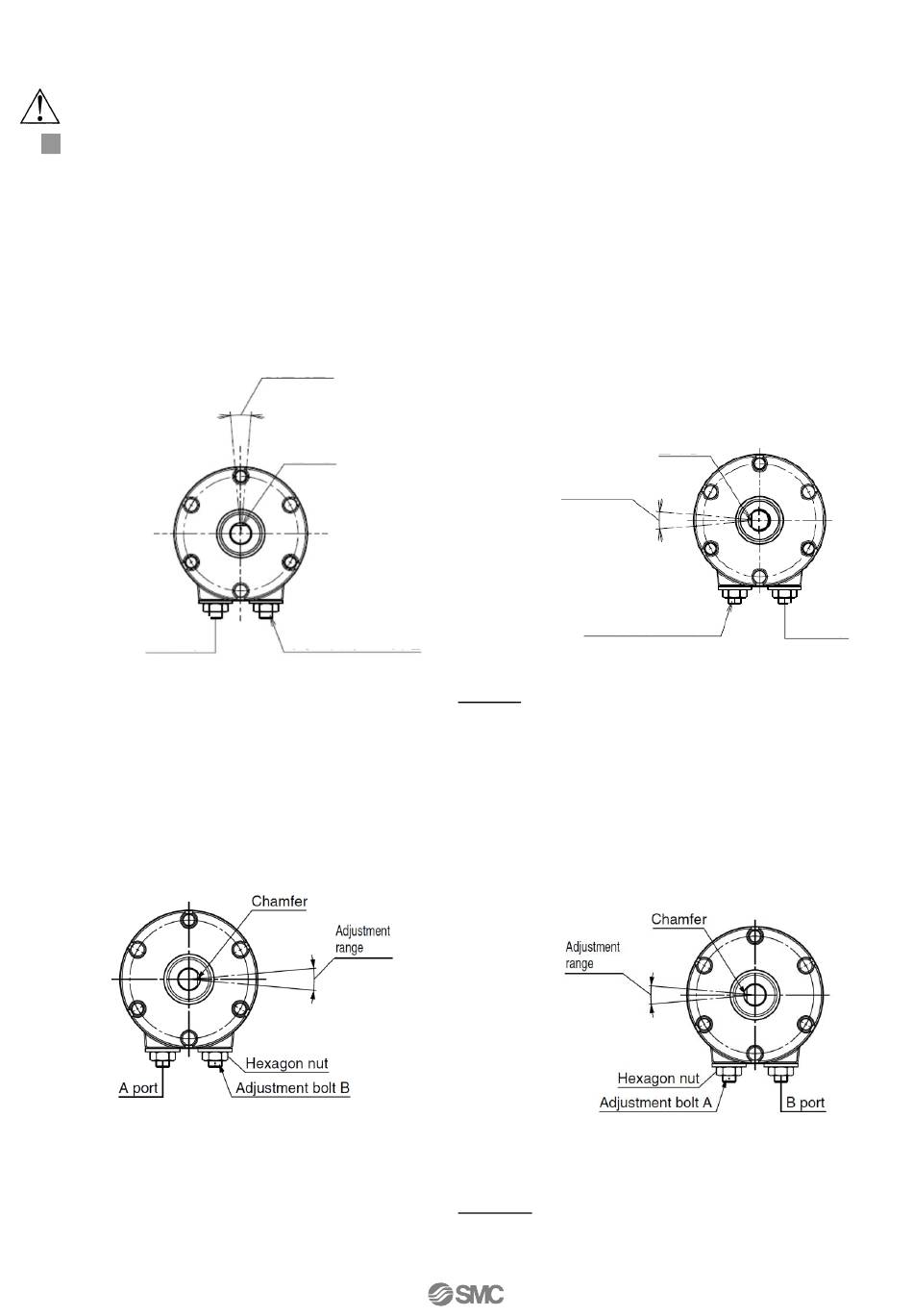

For size 20, 30 and 40, the rotation range can be set as shown in Fig.9 and 10 by adjusting
the adjustment bolt whilst supplying air to the opposite port.
Example 1) For 90 degrees
(1) Set the adjustment bolt B while supplying
pressure from the A port.
A port
Example 2) For 180 degrees
(1) Set the adjustment bolt B while supplying
pressure from the A port.
Adjustment range
Chamfer
Adjustment bolt B
(2) Set the adjustment bolt A while supplying
pressure from the B port.
Adjustment range
Adjustment bolt A
Fig.9
(2) Set the adjustment bolt A while supplying
pressure from the B port.
Fig.10
11
Chamfer
B port
