Power Connector; Motor Connector - Analog Devices TMCM-1290-EVAL Instruction Manual

TMCM-1290-EVAL Evaluation Board • Hardware Version V1.00 | Rev 0, 01/24
1 1
RS485 1
1 1
RS485 2
UART
1 1

3.1.1 Power Connector

The power supply connector to power the TMCM-1290-EVAL-KIT. Required for operation and communi-
cation.
Pin Label
1 GND
2 +VS

3.1.2 Motor Connector

Pin Label
1 B1
2 B2
3 A2
Reference Clock
Resistor selection
JP1 JP2 JP3
7 7
I/O

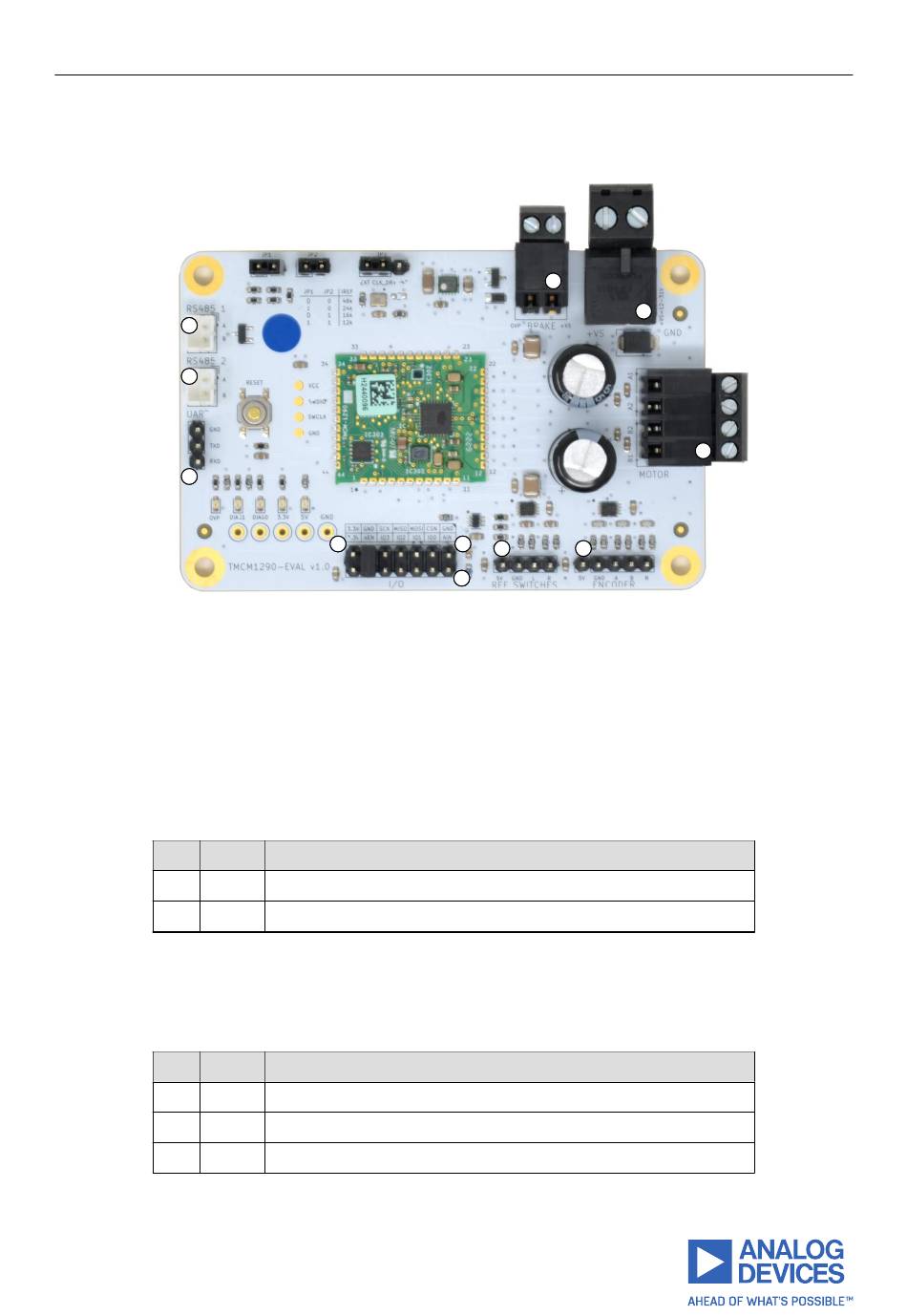

Figure 4: TMCM-1290-EVAL Connectors
Description
Signal and supply ground
Motor supply voltage (12V to 31V)
Table 4: Power Supply Pin Assignment
Description
Motor coil phase B1
Motor coil phase B2
Motor coil phase A2
Power
Brake
Supply
Resistor
1 1
1 1
1 1 1 1
8 8
Ref
Encoder
Switches
1 1
Motor
1 1
7/18
