Analog Devices EVAL-RS485HDEBZ User Manual

One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Boards for Full-Duplex and Half-Duplex RS-485 Transceivers

FEATURES

Easy evaluation of half- and full-duplex RS-485 transceivers
Board layouts for standard RS-485 SOIC footprints
8-lead, SOIC, half-duplex RS-485 (EVAL-RS485HDEBZ)
8-lead, SOIC, full-duplex RS-485 (EVAL-RS485FD8EBZ)
14-lead, SOIC, full-duplex RS-485 (EVAL-RS485FDEBZ)
Power/ground connections through screw terminal blocks
Screw terminal blocks for logic I/O and RS-485 signals
Jumper selectable enable/disable for RE and DE
Test points for measuring all signals
Resistors and footprints for termination and biasing
networks

APPLICATIONS

Full- and half-duplex RS-485 transceiver evaluation

EVALUATION KIT CONTENTS

1

EVAL-RS485HDEBZ

or
1

EVAL-RS485FD8EBZ

or
1

EVAL-RS485FDEBZ

(Main device available separately when ordering)

GENERAL DESCRIPTION

The EVAL-RS485HDEBZ, EVAL-RS485FD8EBZ, and
EVAL-RS485FDEBZ allow quick and easy evaluation of RS-485
transceivers with standard SOIC footprints. The evaluation
board allows all of the input and output functions to be
exercised without the need for external components. Screw
terminal blocks provide convenient connections for power and
ground, digital I/O, and RS-485 signals.
The EVAL-RS485HDEBZ evaluation board has a footprint for
a half-duplex RS-485 transceiver in an 8-lead SOIC package.
The EVAL-RS485FD8EBZ evaluation board has a footprint for
a full-duplex RS-485 transceiver in an 8-lead SOIC package.
The EVAL-RS485FDEBZ evaluation board has a footprint for a
full-duplex RS-485 transceiver in a 14-lead SOIC package.
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
in 8-lead/14-lead SOIC Packages
Rev. 0 | Page 1 of 16
Evaluation Board User Guide
EVAL-RS485HDEBZ

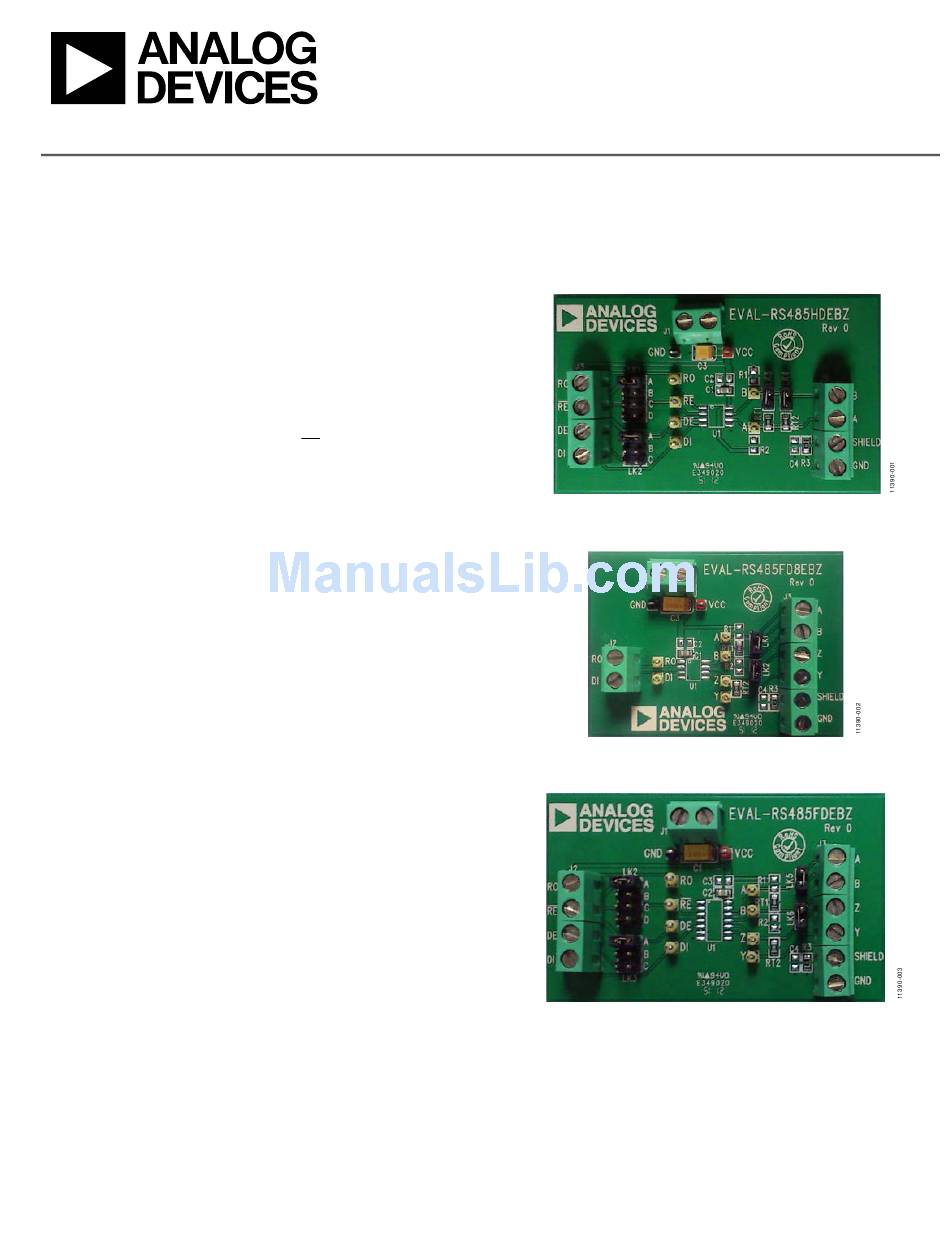

Figure 1.
EVAL-RS485FD8EBZ
Figure 2.
EVAL-RS485FDEBZ
Figure 3.
UG-543
