Analog Devices EVAL-AD4001FMCZ User Manual

One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for the

FEATURES

Fully featured evaluation board for 10-lead precision ADCs
Versatile analog signal conditioning circuitry
On-board reference, reference buffers, and ADC drivers
PC software for control and data analysis of time and
frequency domain
System demonstration platform-compatible (EVAL-SDP-CH1Z)

EVALUATION BOARD KIT CONTENTS

AD4000/AD4001/AD4002/AD4003/AD4020
(see Table 6)
12 V wall adapter power supply

EQUIPMENT NEEDED

SDP-H1 board (EVAL-SDP-CH1Z)
Precision signal source
Cable (SMA input to evaluation board)
Standard USB A to mini-B USB cable
Band-pass filter suitable for 16-bit, 18-bit, and 20-bit testing
(value based on signal frequency)
AD40xx evaluation software

GENERAL DESCRIPTION

The AD4000/AD4001/AD4002/AD4003/AD4020
evaluation board covers the ease of use, 16-/18-/20-bit,
precision successive approximation register (SAR) analog-to-
digital converters (ADCs). The AD4000/AD4001/AD4002/
AD4003/AD4020 are low power, 16-bit/18-bit/20-bit, precision
SAR ADCs that offer very high performance with throughputs
up to 2 MSPS (1.8 MSPS for the AD4020). The evaluation board is
designed to demonstrate the performance of the AD4000/AD4001/
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Easy to Use AD4000 Series 16-/18-/20-Bit
Precision SAR ADCs User Guide
AD4000 Series 16-/18-/20-Bit Precision SAR ADCs
AD4002/AD4003/AD4020
easy to understand interface for a variety of system applications.
A full description of these products is available in their
respective data sheets, which must be consulted when using this
evaluation board.
The
AD4002FMCZ/EVAL-AD4003FMCZ/EVAL-AD4020FMCZ

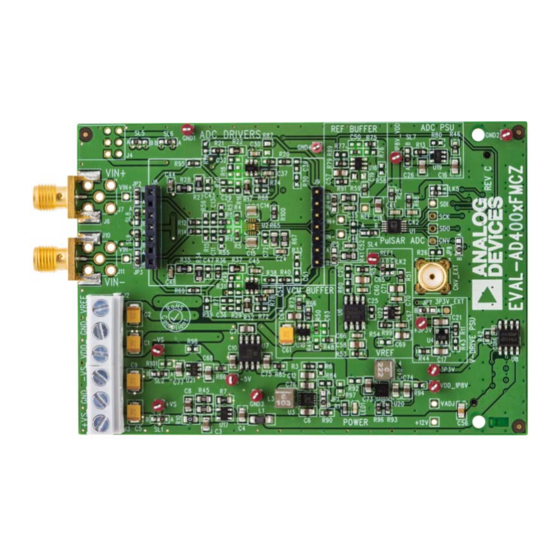

evaluation boards (see Figure 1) are ideal for use with the Analog
Devices, Inc., high speed system demonstration platform
evaluation board
(EVAL-SDP-CH1Z). These evaluation boards interface to the
SDP-H1
and JP3, are provided for the low noise analog signal source.
On-board components include a high precision buffered band gap
5.0 V reference (the ADR4550), a reference buffer (the ADA4807-1),
a common-mode buffer (the ADA4807-1), a signal conditioning
circuit with two op amps (the ADA4807-1), and a power supply to
derive the necessary voltage levels to supply all voltage needs.
The EVAL-AD4000FMCZ, EVAL-AD4001FMCZ,
AD4002FMCZ, and
the AD4000, AD4001, AD4002, and AD4003, respectively.
However, these boards can be used to evaluate the performance
of the AD4004, AD4005, AD4006, AD4007, AD4008, AD4010,
family
and
software to the maximum sample rate of the specific ADC.
For example, the
used to evaluate the performance of the
rate is limited to 1 MSPS. See the data sheet of each product for
its corresponding evaluation board.
Rev. E | Page 1 of 25
family of ADCs and to provide an
EVAL-AD4000FMCZ/EVAL-AD4001FMCZ/EVAL-
board via a 120-pin connector. SMA connectors, JP2
EVAL-AD4003FMCZ
AD4011 by limiting the sample rate in the evaluation
AD4000 on the
UG-1042
EVAL-
are populated with
EVAL-AD4000FMCZ can be
AD4004 if the sample
