One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
FEATURES
Supports the detection of UART
UDP transfer capability
ADPD188GG
full configuration
Register level
High level
Graph view
Time graph
Frequency graph
EVALUATION KIT CONTENTS
EVAL-ADPD188GGZ evaluation board
Ribbon cable
ADDITIONAL EQUIPMENT NEEDED
PC running Windows 7 or Windows 10 operating system
EVAL-ADPDUCZ
microcontroller board
ONLINE RESOURCES
ADPD188GG
data sheet
Applications Wavetool software package
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Evaluating the
ADPD188GG

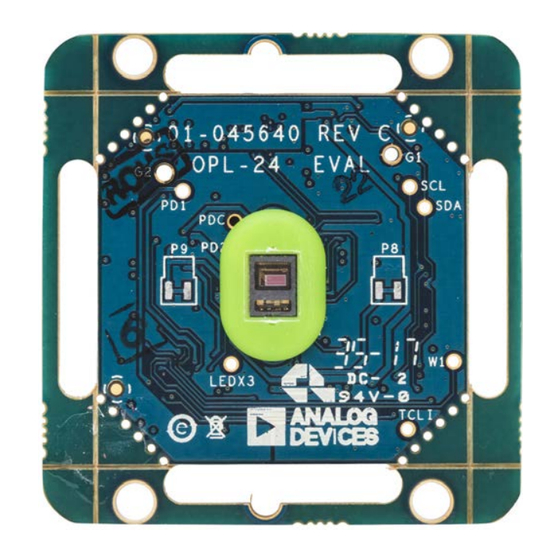

EVAL-ADPD188GGZ EVALUATION BOARD PHOTOGRAPH
EVAL-ADPD188GGZ
Optical Module
GENERAL DESCRIPTION
The EVAL-ADPD188GGZ evaluation board provides users
with a simple means of evaluating the
module for vital signs monitoring applications. The evaluation
system includes the Applications Wavetool graphical user
interface (GUI) that provides users with low level and high
level configurability, real-time frequency and time domain
analysis, and user datagram protocol (UDP) transfer capability
so that the evaluation board can easily interface with the
development system of the user.
The EVAL-ADPD188GGZ is powered by the ribbon cable
from the
EVAL-ADPDUCZ
separately). The design of the evaluation board is optimized for
wrist based photoplethysmography (PPG) measurements.
For additional information on the functionality of the
ADPD188GG, refer to the
Figure 1.
Rev. 0 | Page 1 of 9
User Guide
UG-1256
ADPD188GG
optical
microcontroller board (obtained
ADPD188GG
data sheet.
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL-ADPD188GG
Summary of Contents for Analog Devices EVAL-ADPD188GG
-
Page 1: Features
EVAL-ADPD188GGZ User Guide UG-1256 One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com Evaluating the ADPD188GG Optical Module FEATURES GENERAL DESCRIPTION The EVAL-ADPD188GGZ evaluation board provides users Supports the detection of UART UDP transfer capability with a simple means of evaluating the ADPD188GG... -
Page 2: Table Of Contents
UG-1256 EVAL-ADPD188GGZ User Guide TABLE OF CONTENTS Features ....................1 Checking the USB Serial Connection in Windows® ....3 Evaluation Kit Contents ..............1 Running the Applications Wavetool ...........3 Additional Equipment Needed ............1 Instructions to Load the Firmware ..........3 ... -
Page 3: Getting Started
EVAL-ADPDUCZ RUNNING THE APPLICATIONS WAVETOOL MICROCONTROLLER BOARD AND THE EVAL- To start the Applications Wavetool application, go to Start > ADPD188GGZ EVALUATION BOARD Analog Devices > ApplicationsWavetool and click Connect the USB cable to the EVAL-ADPDUCZ evaluation board, ApplicationsWavetool. connect the ribbon cable to the EVAL-ADPD188GGZ board, INSTRUCTIONS TO LOAD THE FIRMWARE and switch the power switch to the ON position (see Figure 3). -
Page 4: Usb Uart Connection
UG-1256 EVAL-ADPD188GGZ User Guide If the firmware must be updated, take the following steps: After the firmware is updated, connection to the Applications Wavetool can be completed. Download and install the latest DfuSe USB device firmware upgrade software. Plug in a microUSB cable between the EVAL- ADPDUCZ and the PC with the power to the... -
Page 5: Acquiring Data
EVAL-ADPD188GGZ User Guide UG-1256 ACQUIRING DATA SELECTING THE PROPER VIEW LOAD CONFIGURATION The EVAL-ADPD188GGZ is intended for wrist-based PPG In the upper right corner of the data view window, click the measurements. Select the ADPD Device data view (see Figure 10). ADPD Config button to open the ADPD Config view (see This view opens a window that allows the user to run the Figure 11). -
Page 6: Optimizing And Running The Adpd188Gg
UG-1256 EVAL-ADPD188GGZ User Guide OPTIMIZING AND RUNNING THE ADPD188GG analog front end (AFE) timing or by using different operating modes that may be more optimal for a specific set of conditions, After the configuration file is loaded, the settings can be further for example, using float mode for very low current transfer ratio optimized using the ADPD Config window shown in Figure 11. -
Page 7: Evaluation Board Schematics And Artwork
EVAL-ADPD188GGZ User Guide UG-1256 EVALUATION BOARD SCHEMATIC AND ARTWORK Figure 13. EVAL-ADPD188GGZ Schematic Rev. 0 | Page 7 of 9... - Page 8 UG-1256 EVAL-ADPD188GGZ User Guide Figure 14. EVAL-ADPD188GGZ Primary Layer Figure 15. EVAL-ADPD188GGZ Secondary Layer Rev. 0 | Page 8 of 9...
- Page 9 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
