1-4-2 Connecting CJ-series CJ2 CPU Units, CP-series PLCs and NSJ-series Controllers
Installing the USB Driver
Use the following procedure when connecting the personal computer to the peripheral
USB port for the first time. It is assumed that the Support Software has already been
installed.
Windows 2000 or Vista

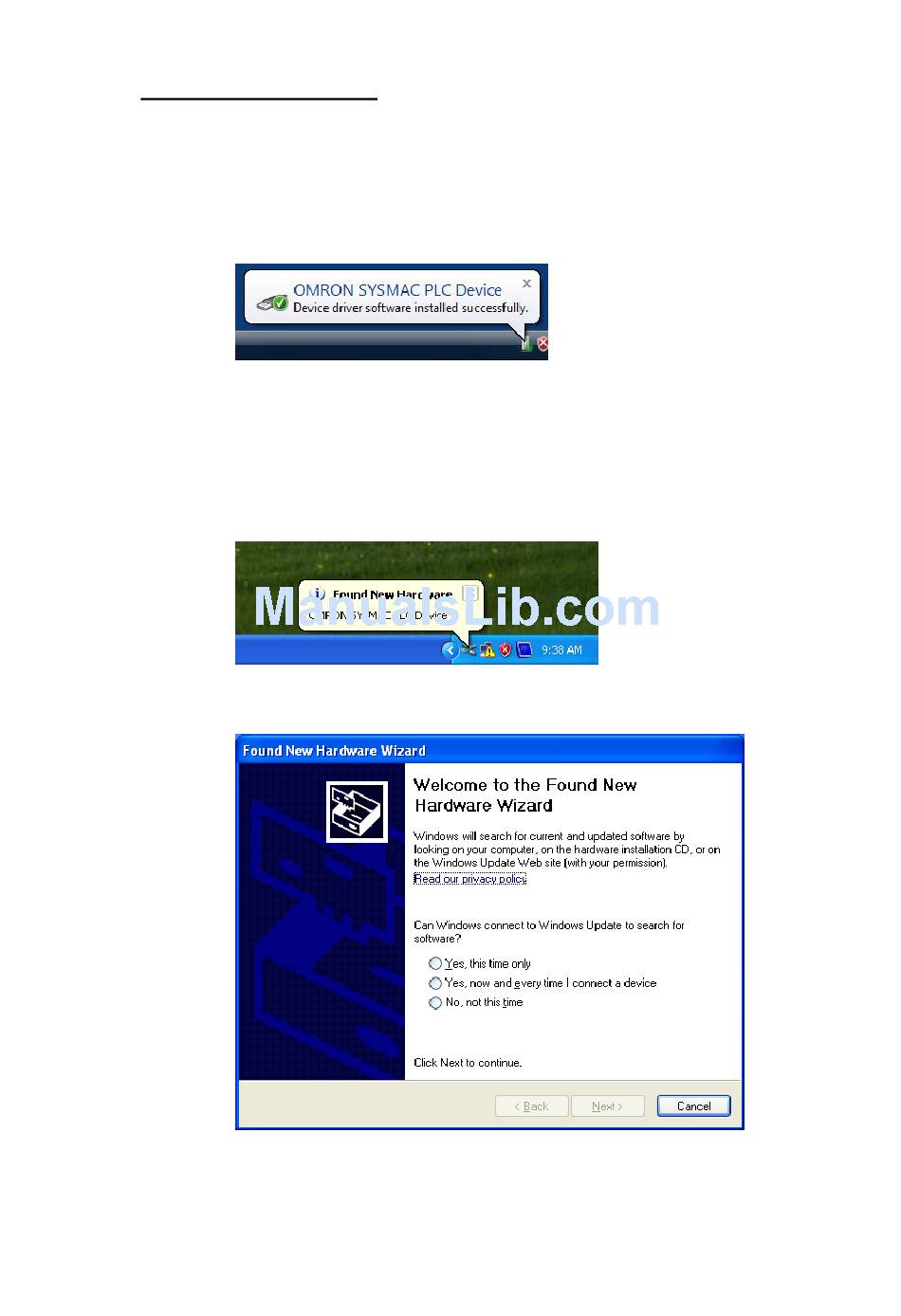

1. Turn ON the power supply to the PLC and connect the peripheral USB port on the
PLC to the personal computer using a USB cable. The USB driver will be
automatically installed when the cable is connected.
Note: If the software is not automatically installed, refer to Installing a Specified USB Driver later
in this section.
Windows XP
1. Turn ON the power supply to the PLC and connect the peripheral USB port on the
PLC to the personal computer using a USB cable. The computer will automatically
detect the device when the cable is connected and display the following message.
2. The following dialog box will be displayed. Select one of the options and click the
Next Button.
1-4 PLC Connecting Cables
Using Commercially Available USB Cable
1-23
