Target PLC Online Operations

2-10
2-10-1

Overview

With the CX-Integrator, the following operations are possible for the target PLC.
• Creating, editing, and transferring I/O tables
• Displaying CPU Unit errors
• Changing the CPU Unit operating mode
2-10-2

Procedure

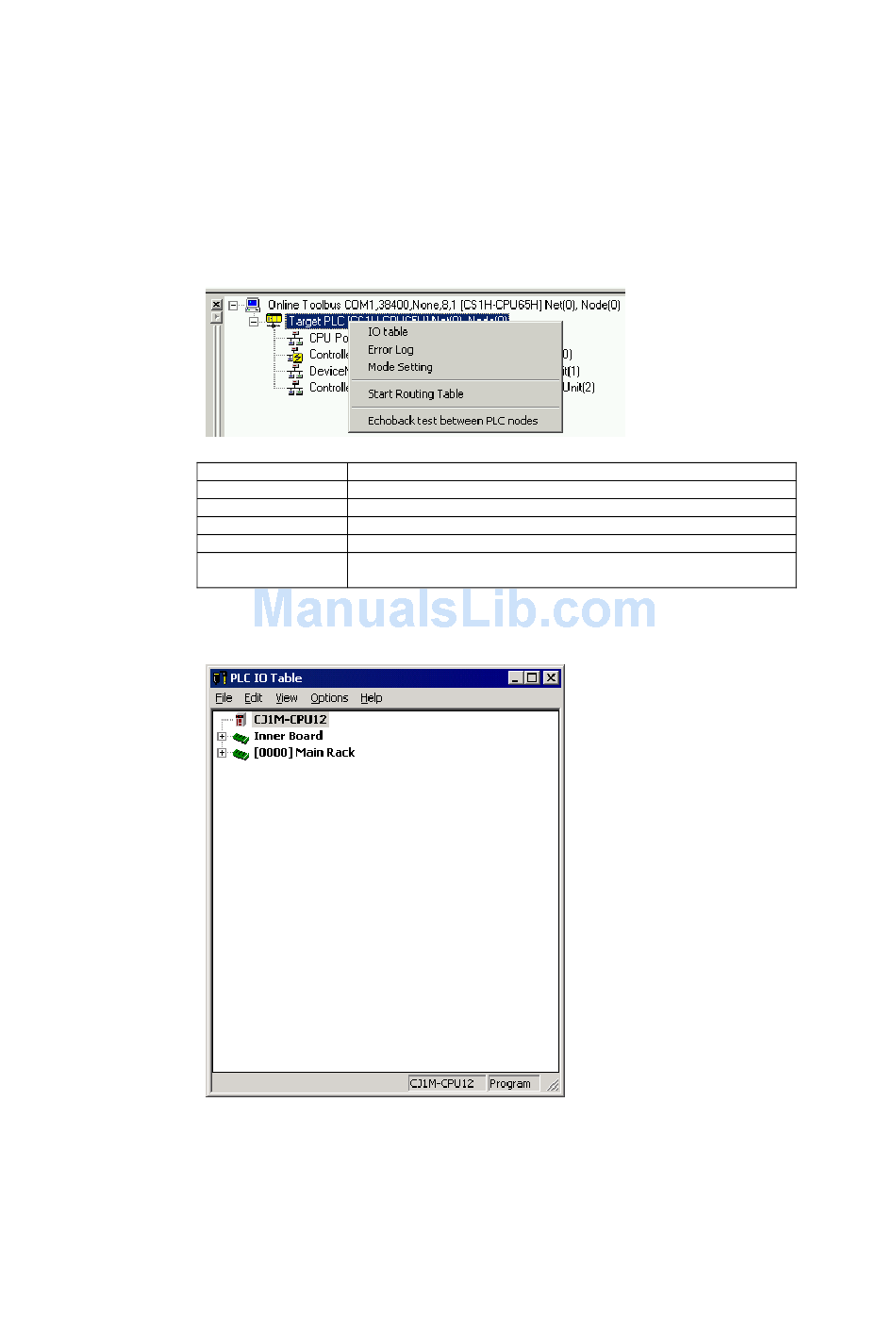

Right-click the target PLC online. The following pop-up menu will be displayed.
IO table
Error Log
Mode Setting
Start Routing Table
Echoback test
between PLC nodes
I/O Tables (Online Only)
If IO table is selected, the PLC I/O Table Dialog Box (I/O Table Component) will be
displayed.
Popup menu
Starts the I/O table component.
Starts the PLC Error Component.
Changes the operating mode of the CPU Unit
Starts the Routing Table Component.
Starts an echoback test to check the network communications
status.
2-10 Target PLC Online Operations
Function
2-10-1 Overview
