Stel REVOLUTION 2500 CE Instruction Manual page 46

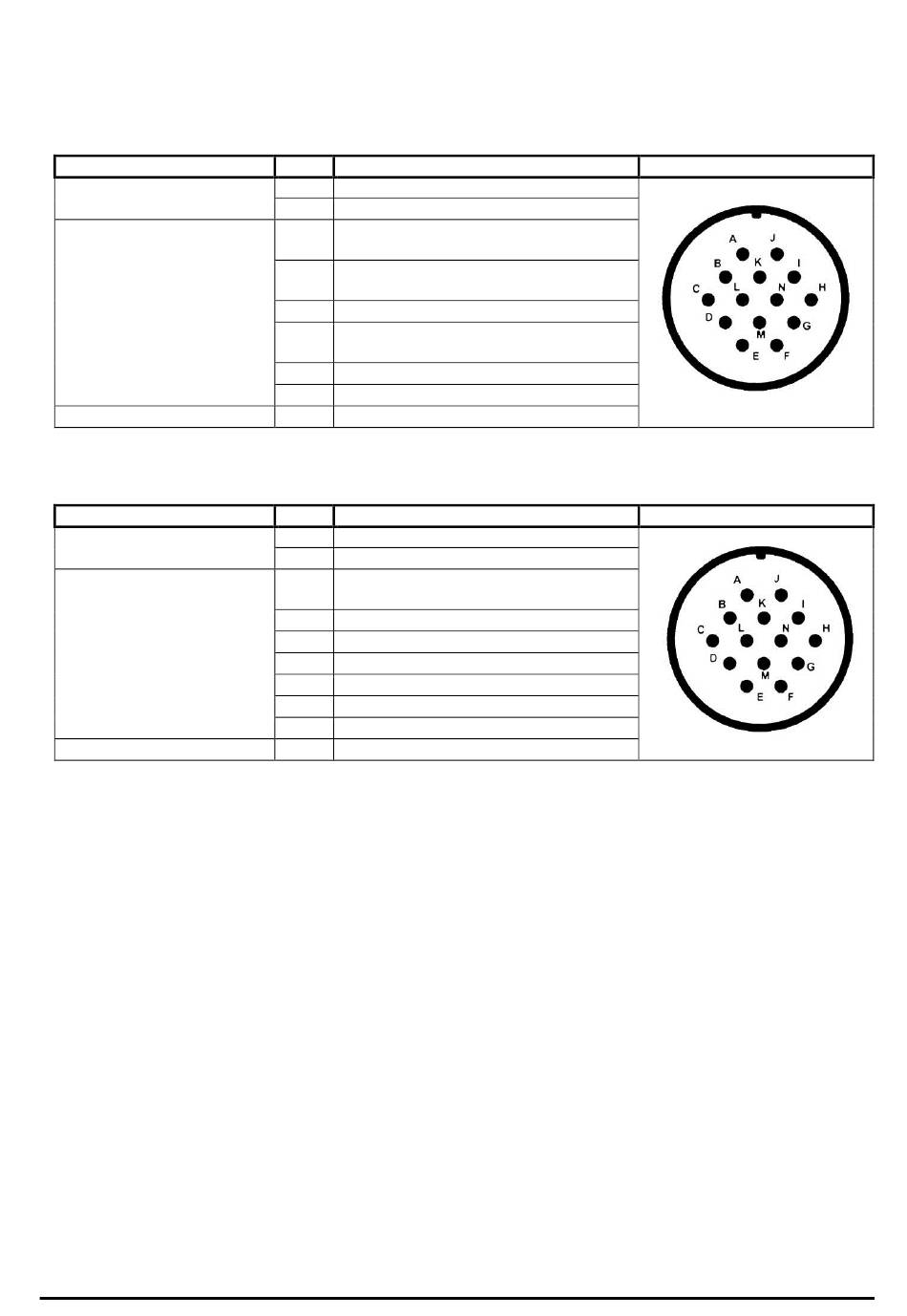

CAD / TIG TORCH CONNECTION
CONNECTOR 14 WAY 'D'
TORCH TRIGGER
REMOTE CONTROL
GND
CONNECTOR 14 WAY 'D'
TORCH TRIGGER
UP/DOWN TORCH
GND
PIN DESCRIPTION
A TORCH SWITCH
B TORCH SWITCH
REMOTE CONTROL CIRCUIT
E
COMMON
0 TO +5VDC INPUT REMOTE
F
CONTROL
G +5VDC OUTPUT REMOTE CONTROL
+5VDC OUTPUT REMOTE
D
CONTROL.
I SENSE 220K
J SENSE 220K
H CHASSIS COMMON
PIN DESCRIPTION
A TORCH SWITCH
B TORCH SWITCH
REMOTE CONTROL CIRCUIT
E
COMMON
F DOWN
G UP-DOWN COMMU.
D UP-DOWN COMMU.
C
I SENSE 1 JUMPER
J SENSE 2 JUMPER
H CHASSIS COMMON
UP
