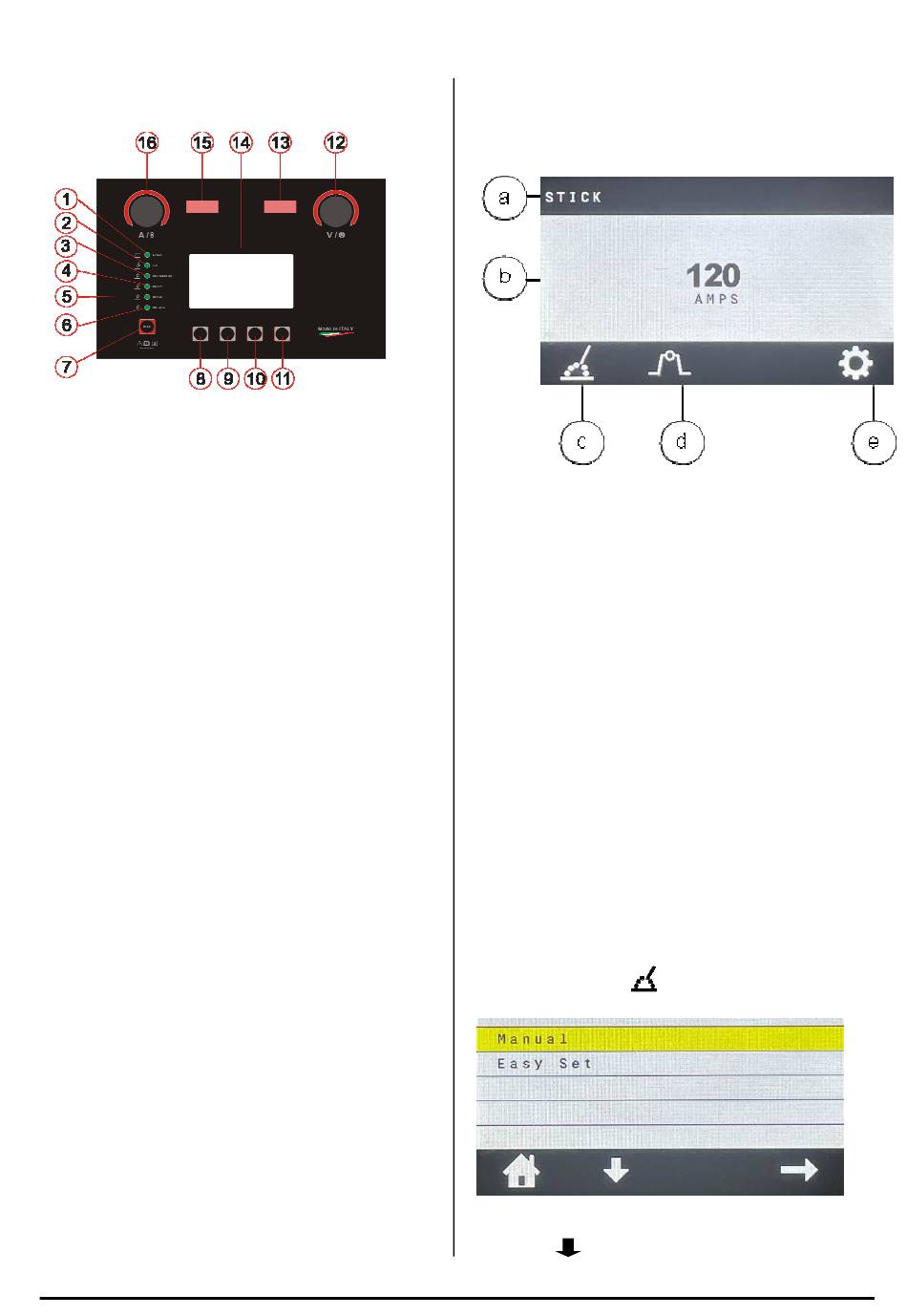

FRONT PANEL DESCRIPTION

1 STICK WELDING LED ;
2 TIG WELDING LED ;
3 MIG MANUAL WELDING LED;
4 MIG SYNERGIC 2T LED ;
5 MIG SYNERGIC 4T LED ;
6 MIG SYNERGIC 4TS LED -
7 MODE button
8 Select Functions button
9 Select Functions button
10 Select Functions button
11 Setup and Select Functions button
12 Right Encoder
13 Right Display - In this display you can see
volts
14 Main Display– In this display you see all
welding parameters
15 Left Display
speed,welding amperage or maximum
pedal amperage
16 Left Encoder
Fig. 4
- Shows wire feed
STICK ( SMAW )
a Welding Mode ;
b Amps ;
c Process ;
d Sequence ;
Settings ;
e
Use the Select Mode button (Fig. 4, ref.7) to toggle
through the menu until the LED next to STICK
illuminates. You are now in the stick welding mode.
MANUAL / EASY SET
Electrode welding has two types of settings.
MANUAL and EASY SET.
MANUAL. In Manual mode it works as with a
normal electrode inverter welder by setting the
welding current, Arc Force and Hot Start. In this
mode you can work in Standard or Pulsed.
EASY SET. The Easy Set mode gives the operator
the possibility to choose the type of electrode to
use and the diameter. The Arc Force and Hot Start
values are already set.
1) Press the button
2) Select the Manual or Easy set function through
the button (Fig. 4,ref.9)or the V / SET encoder
6947800020
(Fig. 4, ref.8)
