Stel REVOLUTION 2500 CE Instruction Manual page 27

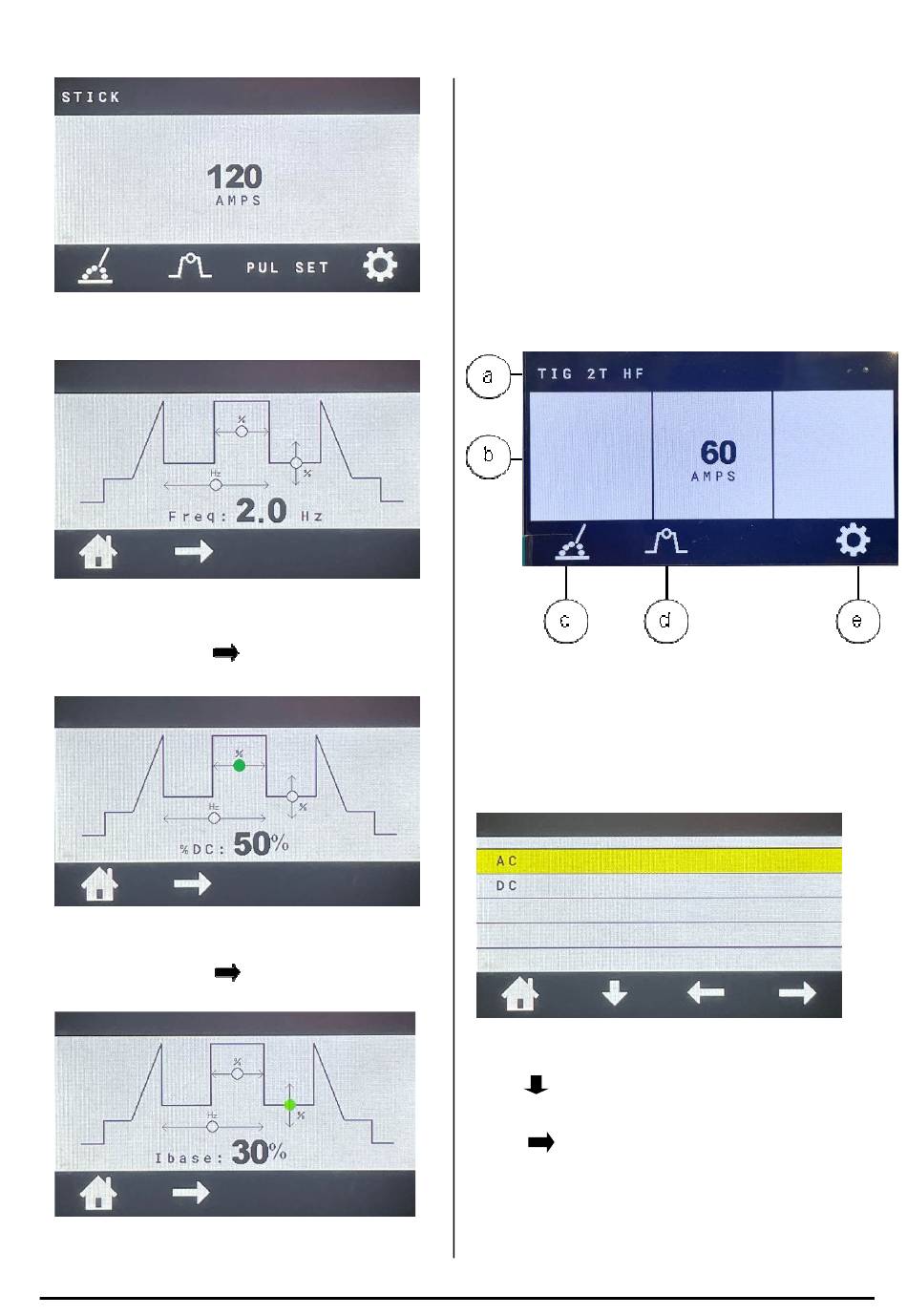

17) Press PUL SET button (Fig. 4, ref.10);
18) Pulse Frequency Adjustment (PPS)
19) To change the pulse frequency value, move the
encoder ( Fig.4,ref. 12 )
20) Press the button
the Peak time regulation;
21) To change the Peak time value , move the
encoder ( Fig.4,ref.12 )
22) Press the button
Background Amps regulation
( Fig.4,ref. 9 ) to go to
( Fig.4,ref. 9 ) to go to the
23) To change the Background amps value, move
the encoder ( Fig.4,ref.12 )
TIG WELDING
TIG 2T
Use the Select Mode button ( Fig.4,ref 7 ) to toggle
through the menu until the LED next to 2T
illuminates. You are now in the TIG 2T welding
mode.
a Welding Mode;
b Amps;
c Process ;
d Sequence ;
e Settings ;
1) Press the button ( Fig.4,ref.8 )
2) Select the AC or DC set function through the
button ( Fig.4,ref.9 ) or the encoder
( Fig.4,ref. 12 )
3) To activate the selected function, press the
button ( Fig.4,ref. 11 )
3a) If you activate the AC function the next screen
will be this :
6947800020
27
