REVOLUTION 2500 CE
with Fuse rating of
REVOLUTION 2500 CE
CONNECTION
- Before making the electrical connections between
the welding machine and the line switch, ensure
that the switch is turned off .
- The distribution panel must comply with the
regulations in force in the country of use.
- The mains system must be of the industrial type.
- For longer connecting cables, increase the lead
section as required.
- When using long extension cables, the cable core
diameter size is relevant to the machine
requirements for achieving optimum performance.
- The power input supply socket from the mains
voltage supply, must have a suitable switch
provided together with a 'slow-burning' type
fuse(s).
- In the event of damage to the power cable,
replacement or repair must be performed by a
qualified person at an approved service centre.
EARTHING
- To ensure user protection the welding machine
must absolutely be correctly connected to the earth
system (INTERNATIONAL
REGULATIONS).
- It is indispensable to provide good earthing by
means of the yellow-green lead in the power cable,
in order to avoid discharges due to accidental
contacts with earthed objects .
- The chassis (which is conductive) is electrically
connected with the earth lead; if the equipment is
not suitably connected to earth it may cause
electric shocks which are dangerous for the user.

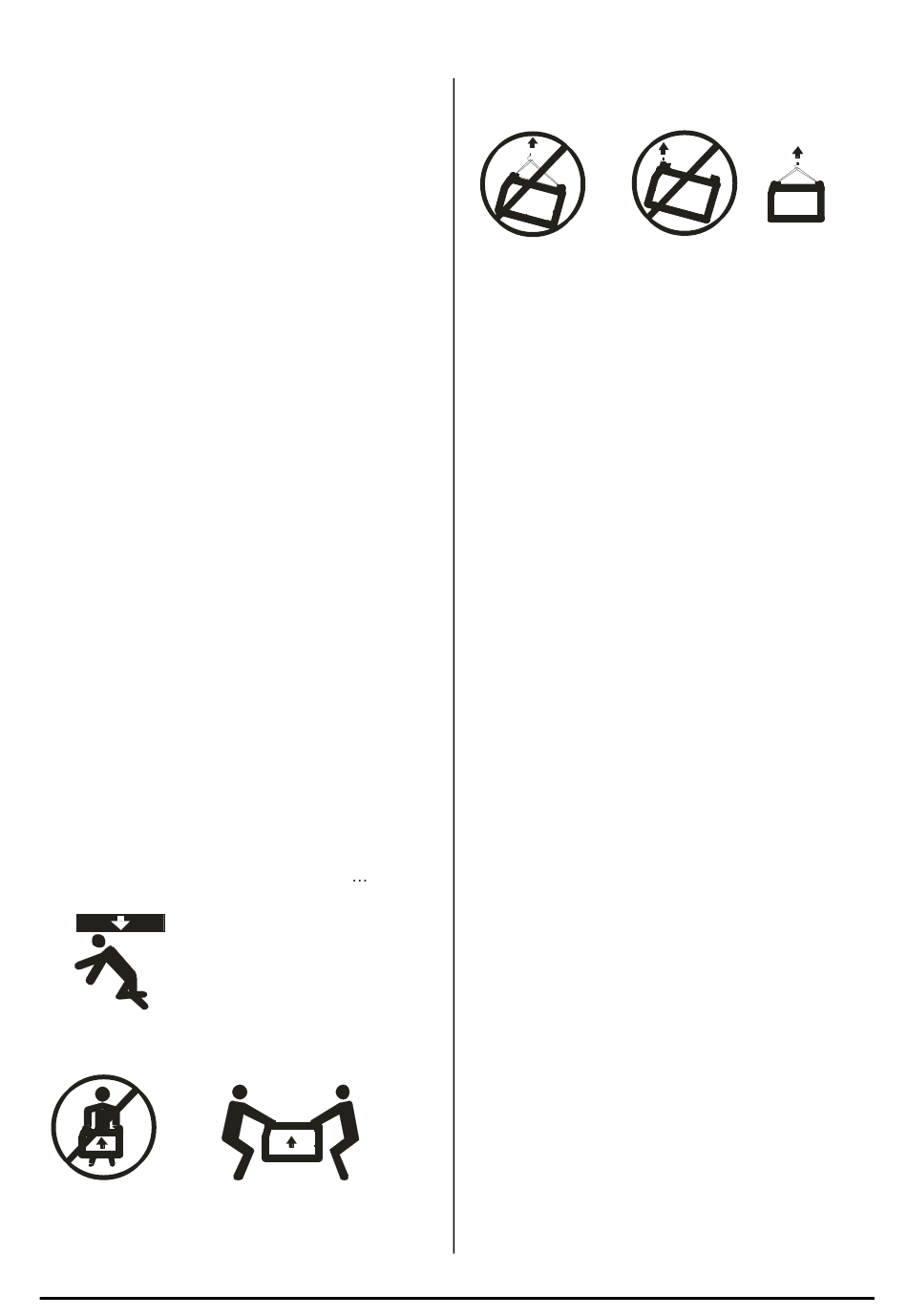

LIFTING
WARNING:
The machine weights without spool wire
REVOLUTION 2500 CE
Lifting by hand:
Lift the machine using the two handles provided
Lifting with hoist and strap
Lift the machine by using ONLY both handles as
shown on the picture.
230V±15% 1F
16AT
SAFETY
35,2 Kg / 77,5 lb
.
Keep the machine as horizontal as possible
INSTRUCTION FOR
INSECURE POSITIONING
Failure to properly secure the machine can cause
personal injury. If machine is in an insecure
position do not attempt to switch on. Do not put the
machine on an unlevelled surface greater than 10°.
6947800020
