User Guide
EVALUATION BOARD HARDWARE
Figure 7
shows the simplified block diagram of the EV-
ADAQ7767-1FMC1Z evaluation board connected to the
controller board. The EV-ADAQ7767-1FMC1Z is installed with the
featured
ADAQ7767-1
µModule (U1) and
ence (U4), and the on-board power solution consisting of the
analog.com
SDP-H1
ADR444
4.096 V refer-

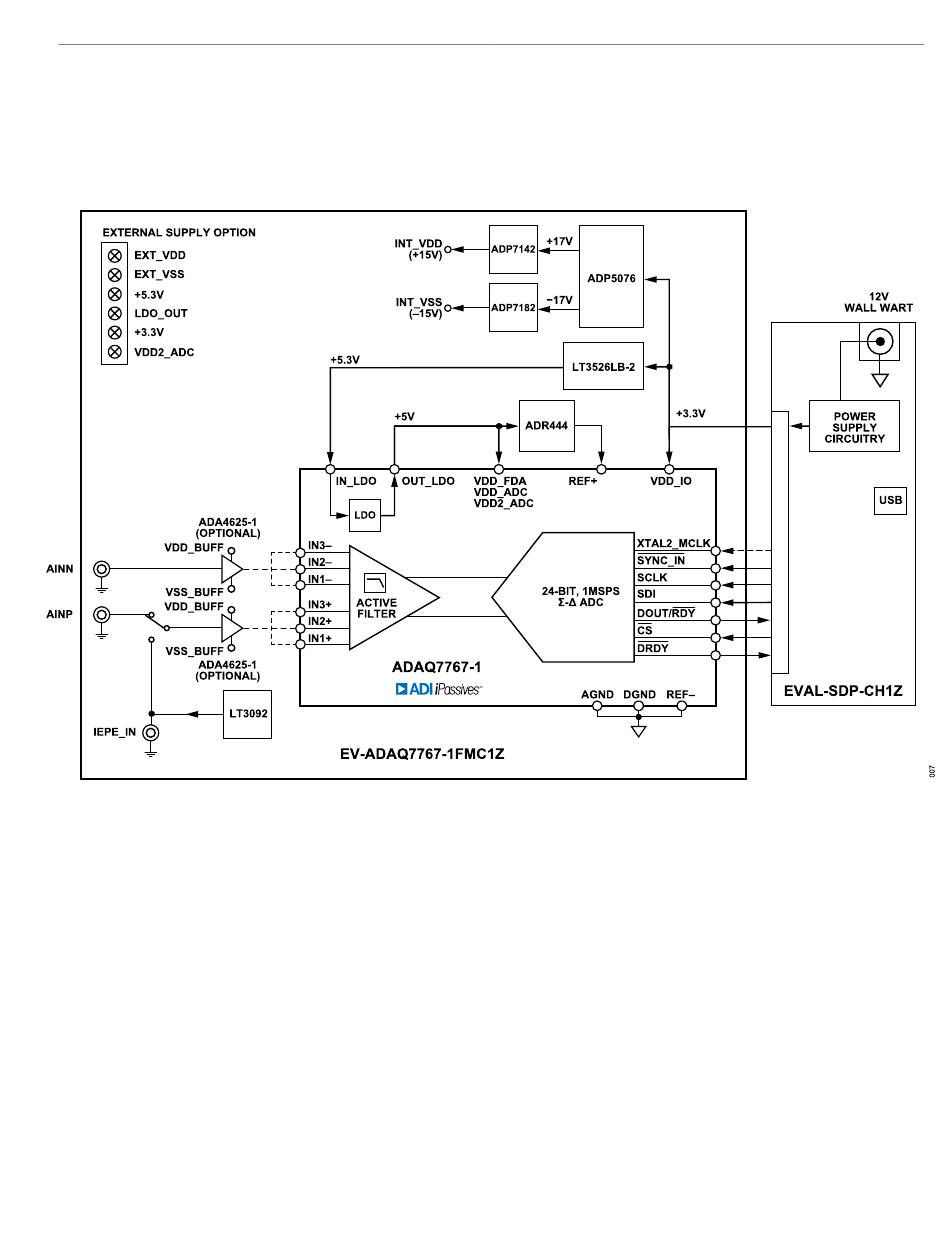

Figure 7. Simplified Evaluation Board Block Diagram
EVAL-ADAQ7767-1
ADP5076
(VR1),
ADP7142
(U8),
(U7). A pair of
ADA4625-1
(U2 and U3) op amps can be used to
buffer the inputs, while the on-board IEPE interface can be used to
bias the IEPE sensor used as an input to the signal chain.
ADP7182
(U9), and
LTC3526LB-2
Rev. 0 | 8 of 26
