ADAQ7767-1 Board Histogram Tab
The ADAQ7767-1 Board Histogram tab contains the Histogram
graph and the RESULTS pane, as shown in
The RESULTS pane displays the information related to DC per-
formance.
analog.com
Figure
22.

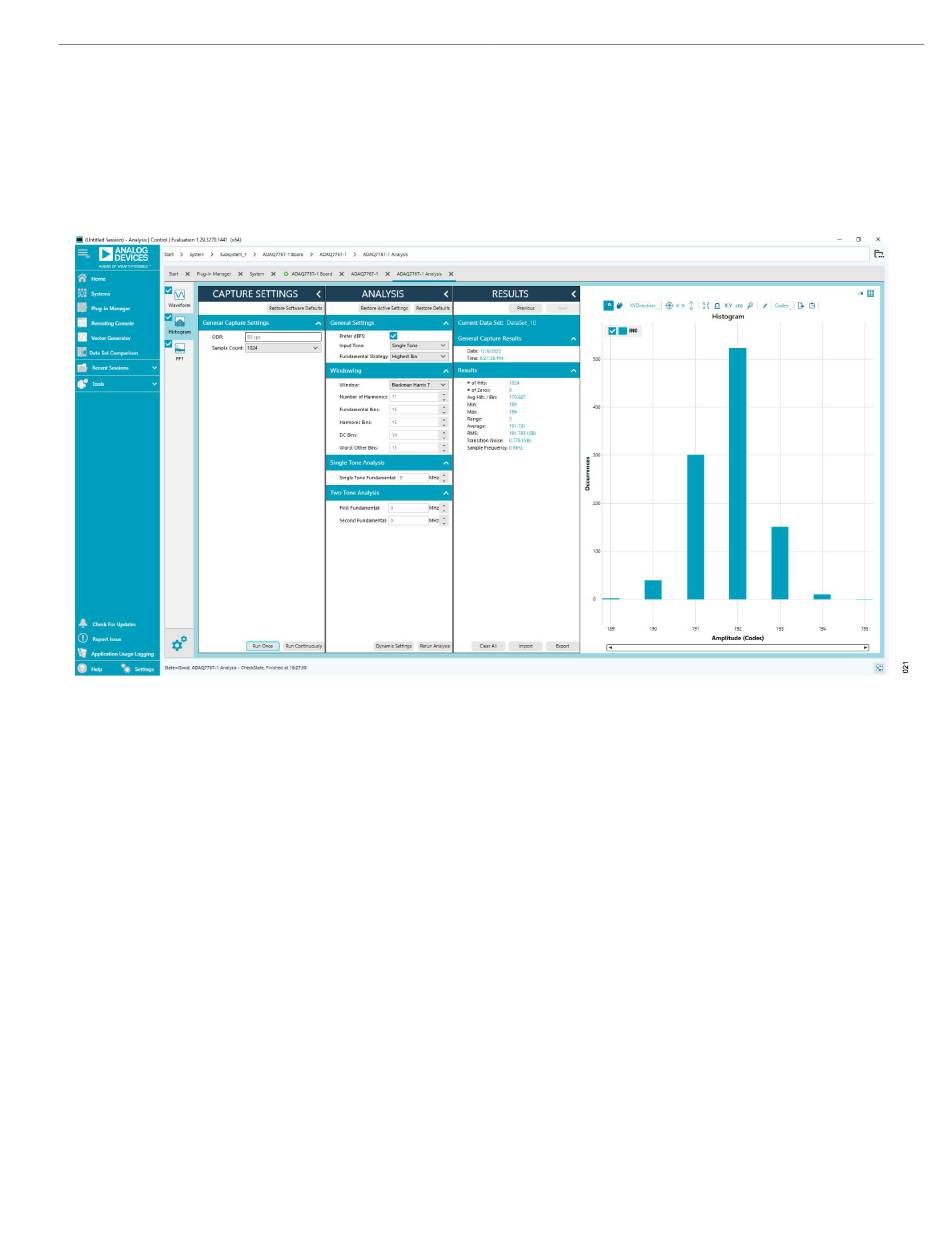

Figure 22. ADAQ7767-1 Board Histogram
EVAL-ADAQ7767-1
The Histogram graph displays the number of hits per code within
the sampled data. This graph is useful for DC analysis and indi-
cates the noise performance of the device.
