EVALUATION BOARD SOFTWARE

EXITING THE SOFTWARE

To exit the software, go to File in the upper right tab and then click
Close ACE.
CONFIGURING THE EV-ADAQ7767-1FMC1Z
AND THE ADAQ7767-1
analog.com
Input Range Configuration
To select the input range, take the following steps:
1. Configure the P1 and P2 jumpers on the EV-
ADAQ7767-1FMC1Z to either IN1+ and IN1−, IN2+ and IN2−,
or IN3+ and IN3−.
2. To properly detect and scale the applied input voltage when
displaying results in volts, in the ADAQ7767-1 Board Chip
View of the
select the corresponding input range, and then click Apply
Changes (see

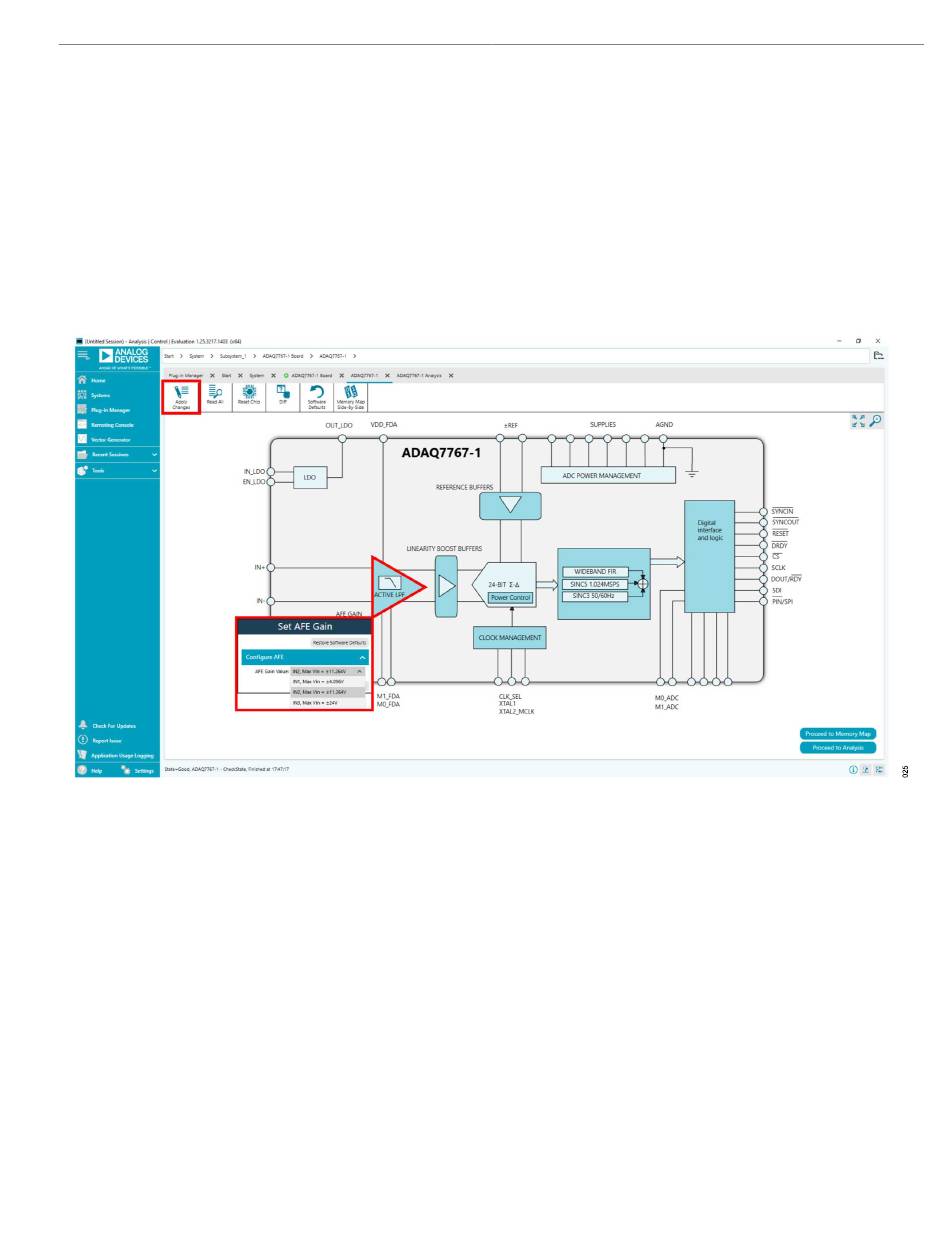

Figure 25. Input Range Selection Menu
EVAL-ADAQ7767-1
ACE Software, click on the ACTIVE LPF and
Figure 25).
