EVALUATION BOARD SOFTWARE

DESCRIPTION OF THE ANALYSIS WINDOW

Click Proceed to Analysis in the ADAQ7767-1 Board Chip View
window (see Figure 19) to open the ADAQ7767-1 Board Analysis
window. The ADAQ7767-1 Board Analysis window showcases
the performance of the EV-ADAQ7767-1FMC1Z. Before performing
any measurements, set the CAPTURE SETTINGS and ANALYSIS
settings.
analog.com
The ADAQ7767-1 Board Analysis window contains the
ADAQ7767-1 Board Waveform (see
Board Histogram (see
tabs (see

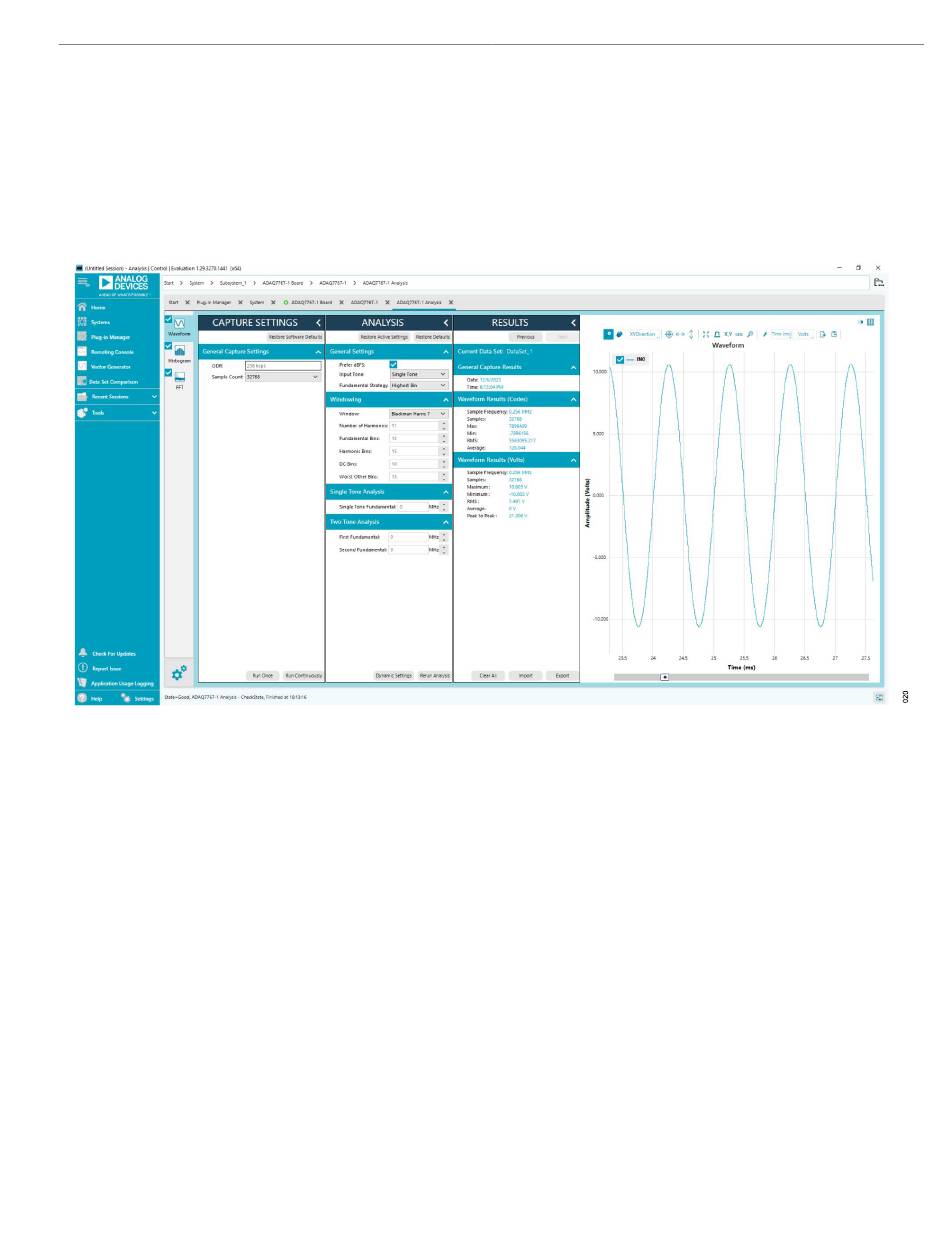

Figure 20. ADAQ7767-1 Board Analysis Window
EVAL-ADAQ7767-1
Figure
Figure 22), and ADAQ7767-1 Board FFT
Figure 23).
21), ADAQ7767-1
