EVALUATION BOARD SOFTWARE

The ADP5055-EVALZ can be powered up and placed in
standalone operation without the GUI software. The GUI
software and the USB to I
not included in the evaluation kit and must be ordered separately,
are optional to access the advanced functionalities of the
ADP5055 through the PMBus serial interface.
Ensure that the ADP5055-EVALZ is not connected to the USB
port of the PC before starting the software installation.

INSTALLING THE GUI SOFTWARE

To install the ADP5055_GUI software on the PC, take the
following steps:
1. Download the GUI software installation file, ADP5055_
GUI_Install, from the
ADP5055_GUI_Install file.
2. Launch the Setup.exe file located within the ADP5055_
GUI_Install\Volume folder. The dialog box shown in
Figure 2 then appears.

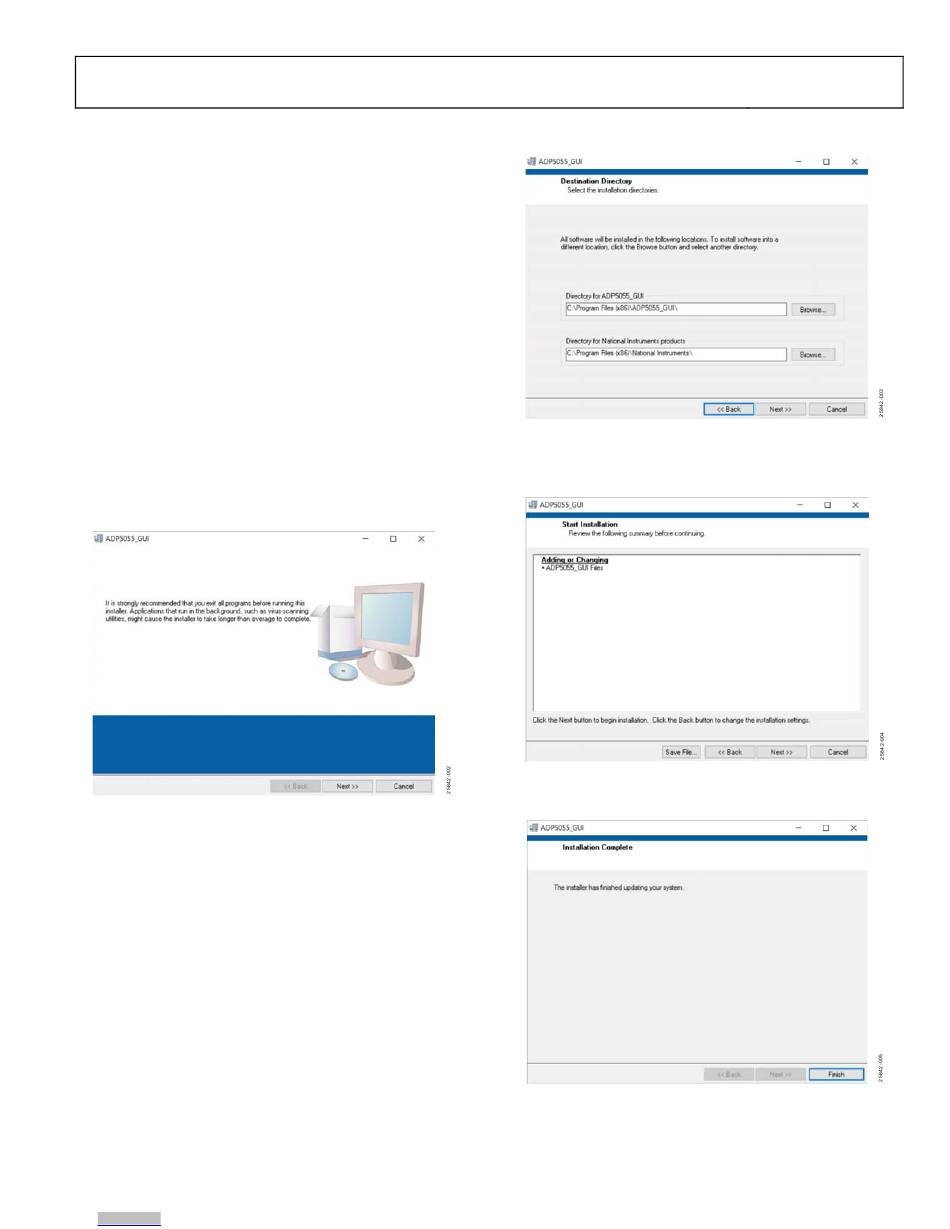

Figure 2. ADP5055_GUI Software Installation Dialog
3. Click Next > > to install the files to the default destination
folders or click Browse to choose a different destination
folder (see Figure 3).
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
User Guide
2
C dongle (USB-SDP-CABLEZ), which is
ADP5055 product page. Unzip the
Figure 3. Choose Installation Destination Locations
4. Click Next > > to install the ADP5055_GUI software
program (see Figure 4).
Figure 4. Start Installation Window
5. Click Finish to complete the installation (see Figure 5).
Figure 5. ADP5055_GUI Installation Complete Window
After GUI software installation, the PC may require a restart to
compete the installation.
