User Guide

EVALUATION BOARD SOFTWARE

INSTALLING THE ACE SOFTWARE, ADMV8513
PLUG-INS, AND DRIVERS
The ADMV8513-EVALZ uses the Analog Devices
trol|Evaluation (ACE)
and use the ACE software, go to www.analog.com/ACE.
If the ACE software is already installed on the PC, ensure that the
installed ACE software is the latest version, as listed on the ACE
software page. If the installed software is not the latest version, take
the following steps to install the updated ACE software:
1. Uninstall the current version of the ACE software on the PC.
2. Delete the ACE folders found in C:\ProgramData\Analog Devi-
ces and C:\ProgramData (x86)\Analog Devices.
3. Install the latest version of the ACE software. During installa-
tion, ensure that the .Net 40 Client, SDP Drivers, the LRF
Drivers installations are checked off as well (see

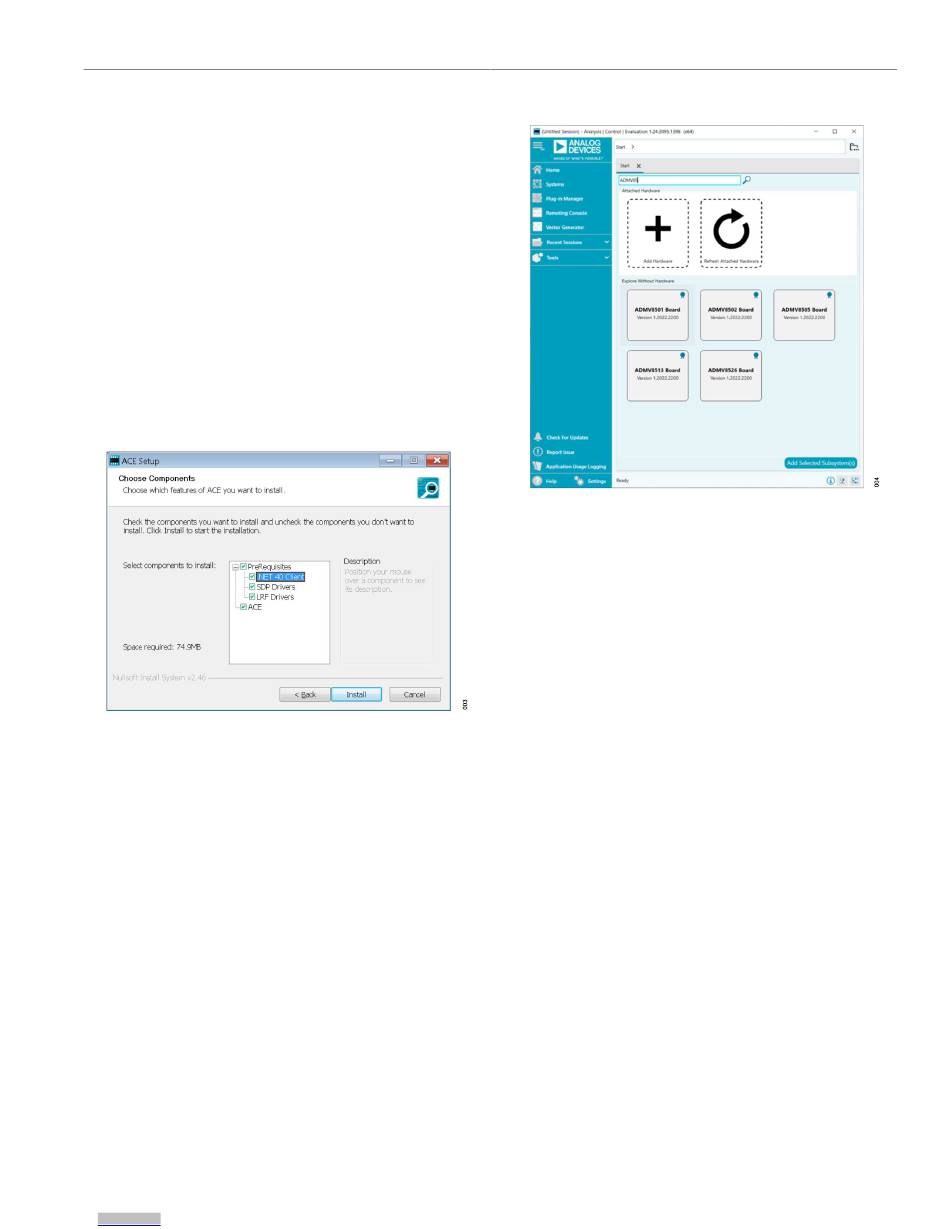

Figure 3. Required Driver Installations with the ACE Software
Once installation completes, the ADMV8513 Board plug-in appears
in the Attached Hardware section of the Start tab when the ACE
software is running (see
analog.com
Arrow.com.
Downloaded from
Analysis|Con-
software. For instructions on how to install
Figure
Figure 4).
3).
Figure 4. ADMV8513 Board Plug-In Window After Opening the ACE Software
EVAL-ADMV8513
Rev. 0 | 4 of 17
