Mounting, connecting-up
NOTE
3-2

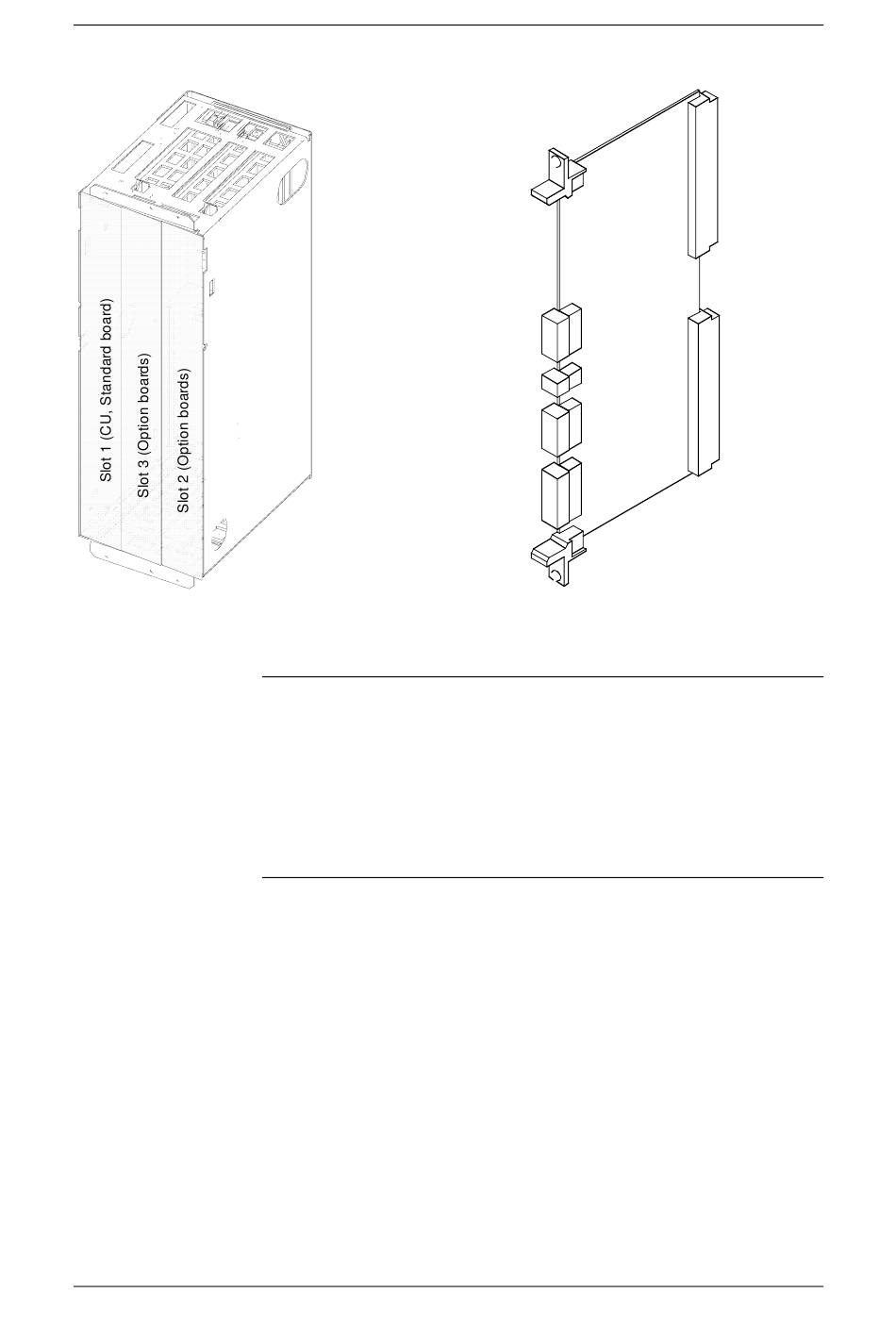

Fig. 1 Electronics box
Screened cables must be used to prevent EMC disturbance.
Perfect operation of the board can only be guaranteed if
♦ the permissible cable lengths are adhered to (refer to Figs. 6, 7 and
8).
♦ power and control cables are routed separately.
♦ the board retaining screws above and below the handles are
tightened!
Tachometer and synchronization board
-X113
-X112
-X111
-X110
6SE7087-6CX84-0BA0
SIMOVERT MASTERDRIVES
10.99
-X117
-X115
