02.99
6 Start-up and Parameterization
1. Inserting the supplied memory module (EPROM)
When handling the EPROM, please observe the guidelines for handling components which can be damaged by
electrostatic discharge (see pages 0-5).

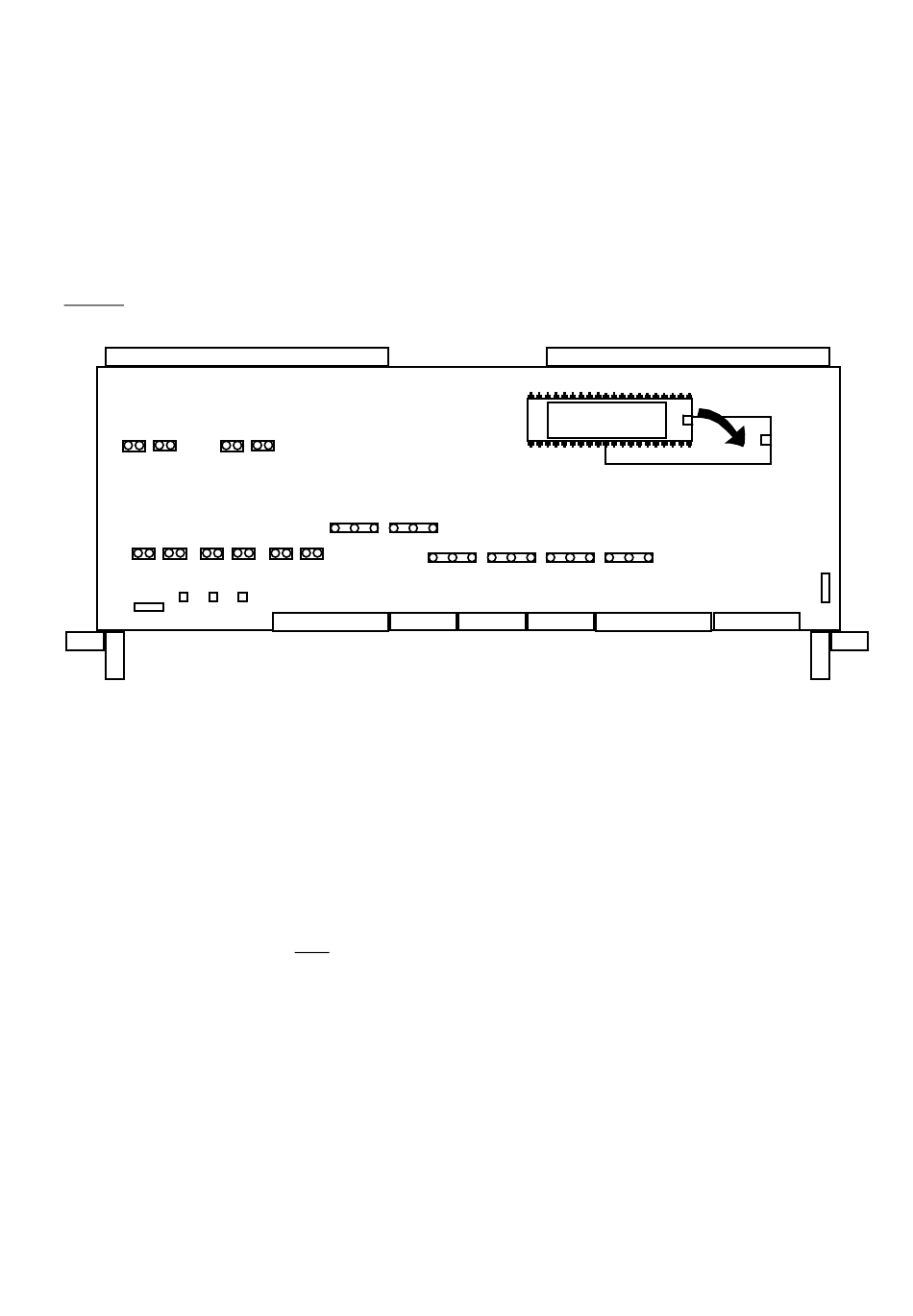

Insert the EPROM in the base provided on the T100. It is essential to ensure that the notch on the EPROM is
aligned with the marking on the board (see diagram). Check to ensure that all terminal pins of the EPROM are
inserted correctly in the socket.
Caution: Connecting the power to the board when the EPROM is inserted incorrectly will destroy the module!
X1
X3 X4
green red yellow
R135
H1 H2
2. Checking the hardware requirements
Check the information given in Chapter 1.4 to ensure that all hardware requirements are met for operating the
T100.
3. Installing the technology board in the electronics box
See Chapter 2.2 of hardware operating instructions.
Note: The technology board must be inserted in board location 2 (RIGHT-HAND SIDE of electronics box) of
the electronics box.
After connection of the supply voltage, the red LED on the T100 technology board flashes (= fault-free cyclic
operation).
4. Starting up the basic converter unit
It is advisable to start up the basic converter unit separately according to its operating instructions (operation, for
example, via the PMU) before you start up the T100.
5. Selecting the technology board
(Board need only be selected explicitly on old series MASTERDRIVES FC / VC / SC (1995 - 1997); on new
series converters, all supplementary boards are registered by an automatic hardware detection function.)
Siemens AG 6SE7087-6CX84-0BB1
T100 Technology Board Manual for Software Module MS100 "Multi-Purpose Drive"
X137
X2
X6 X7
X5
X130 X131
H3
X135
6SE7098-0XX84-0BB0
V98113-A 1800-A1-10
MS100 for T100
X8 X9 X10 X11
X132 X133
Start-up and Parameterization
1
D1 EPROM
R136
X134 X136
6-1
