  • Page 1 H13SRA-F H13SRA-TF USER'S MANUAL Revision 1.0...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 USB headers with five USB connections, one dedicated BMC LAN, and dual LAN ports (1 GbE on H13SRA-F and 10 GbE on H13SRA-TF). It also offers the most advanced data protection capabilities that encompasses support of Trust Platform Module (TPM). The H13SRA-(T)F is optimized for high-performance, high-end computing platforms and is ideal for media and entertainment, engineering, scientific computing, and AI development applications.
  • Page 4 Super H13SRA-(T)F User's Manual Conventions Used in the Manual Special attention should be given to the following symbols for proper installation and to prevent damage done to the components or injury to yourself: Important: Important information given to ensure proper system installation or to relay safety precautions.
  • Page 5 San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support) Webmaster@supermicro.com (Webmaster) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 6: Table Of Contents

    Super H13SRA-(T)F User's Manual Table of Contents Chapter 1 Introduction 1.1 Checklist ..........................8 1.2 Processor and Chipset Overview ..................18 1.3 Special Features ........................18 1.4 System Health Monitoring ....................18 1.5 ACPI Features ........................19 1.6 Power Supply ........................20 1.7 Serial Port ...........................20 Chapter 2 Installation 2.1 Static-Sensitive Devices .....................21 2.2 Processor and Heatsink Installation ...................22...
  • Page 7 Preface 4.5 Event Logs ........................134 4.6 Security ..........................136 4.7 Boot ..........................143 4.8 Save & Exit ........................145 Appendix A BIOS POST Codes A.1 BIOS POST Codes ......................147 Appendix B Software B.1 Microsoft Windows OS Installation ...................148 B.2 Driver Installation ......................150 B.3 SuperDoctor 5 ........................151 B.4 BMC ..........................152 B.5 Logging into the BMC (Baseboard Management Controller) ...........152 Appendix C Standardized Warning Statements...

  • Page 8: Chapter 1 Introduction

    Introduction Congratulations on purchasing your computer motherboard from an industry leader. Supermicro motherboards are designed to provide you with the highest standards in quality and performance. In addition to the motherboard, several important parts that are included in the retail box are listed below.

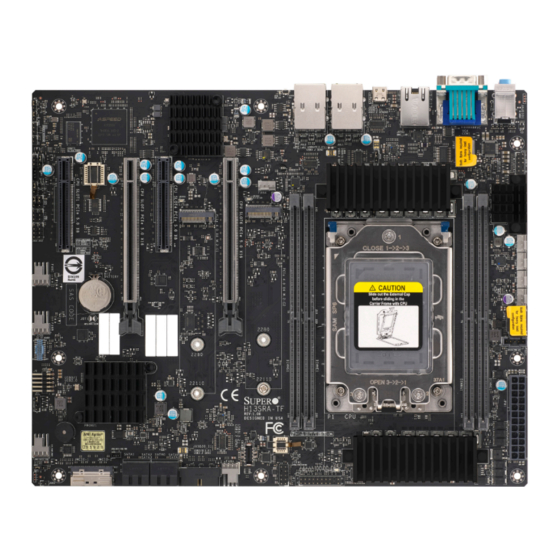

  • Page 9 Chapter 1: Introduction Figure 1-1. H13SRA-TF Motherboard Image Differences between H13SRA-F and H13SRA-TF H13SRA-F H13SRA-TF LAN1, LAN2 RJ45 1 GbE LAN Ports RJ45 10 GbE LAN Ports Note: All graphics shown in this manual were based upon the latest PCB revision available at the time of publication of the manual.
  • Page 10 SATA1 USB2/3 FANA JMCIO-1/2 JTPM1 (3.2 GEN1) JWD1 LED7 (Power LED) JOH1 Differences between H13SRA-F and H13SRA-TF H13SRA-F H13SRA-TF LAN1, LAN2 RJ45 1 GbE LAN Ports RJ45 10 GbE LAN Ports Note: Components not documented are for internal testing only.
  • Page 11 Chapter 1: Introduction Quick Reference LAN2 FAN4 BMC_LAN USB6/7 LAN1 LEDBMC LED3602 JUIDB1 USB4/5 LED3601 LED1 USB9 COM1 JAUDIO1 LED1 (UID-LED) JUIDB1 (UID) USB9 (3.2 GEN2X2) LEDBMC CTRL JAUDIO1 BMC_LAN COM1 LAN2 LAN1 JPW3 USB6/7 USB4/5 (3.2 GEN2) (3.2 GEN2) JPW3 JSPDIF_OUT JAFP1...
  • Page 12 Super H13SRA-(T)F User's Manual Quick Reference Table Jumper Description Default Setting JBT1 Clear CMOS (Onboard) Short Pads to Clear CMOS JPAC1 HD Audio Enable/Disable Pins 1-2 (Normal) JPL1 LAN1/LAN2 Enable/Disable Pins 1-2 (Enabled) JPUSB1 USB4/5 Wake Up Pins 1-2 (Enabled) JWD1 Watchdog Function Enable Pins 1-2 (Reset)
  • Page 13 Chapter 1: Introduction Connector Description RJ45 1 GbE LAN Ports (H13SRA-F only); LAN1, LAN2 RJ45 10 GbE LAN Ports (H13SRA-TF only) M.2-C1, M.2-C2 PCIe 4.0 x4 M.2 M-key Slots (Support 22110/2280 form factors and RAID 0/1) SATA0 – SATA3 SATA 3.0 Ports (6 Gb/second, support RAID 0/1/5/10)
  • Page 14 Two PCIe 4.0 x4 M.2 slots (support M-key 22110/2280 and RAID 0/1) Network • One dedicated BMC LAN • Dual 1 GbE LAN ports on H13SRA-F (Broadcom BCM5720) • Dual 10 GbE LAN ports on H13SRA-TF (Broadcom BCM57416) Audio •...
  • Page 15 Chapter 1: Introduction Peripheral Devices • One front accessible USB 2.0 header (USB0/1) with support of two USB connections • One front accessible USB 3.2 Gen. 1 header (USB2/3) with support of two USB connections (5 Gb, Type-A) • Four USB 3.2 Gen. 2 ports on the rear I/O panel (USB4/5/6/7, 10 Gb, Type-A) •...
  • Page 16 For proper thermal management, please check the chas- sis and heatsink specifications. Note 2: For IPMI configuration instructions, please refer to the Embedded IPMI Con- figuration User's Guide available at https://www.supermicro.com/support/manuals/. Note 3: For proper BMC configuration, please refer to https://www.supermicro.com/...
  • Page 17 Chapter 1: Introduction Figure 1-3. System Block Diagram H13SRA-TF/F 1DPC@5200MT SVI3 PCIE_PE3 PCIe x8 SLOT #1 PCIE_PE2 PCIe x16 SLOT #6 PCIE_PE3 PCIe x8 SLOT #4 PCIE_PE1 PCIe x16 SLOT #3 GLAN1/2 10Gb/1Gb LAN1 BCM57416 PCIE G3*4 (-F only for 1Gb) BCM5720 PCIE_G3 Ryzen Threadripper...

  • Page 18: Processor And Chipset Overview

    Super H13SRA-(T)F User's Manual 1.2 Processor and Chipset Overview Built upon the functionality and capability of the AMD Ryzen Threadripper PRO 7000 WX- Series and Ryzen Threadripper 7000 Series processors (Socket sTR5, LGA-4844) and the AMD TRX50, the H13SRA-(T)F motherboard increases energy efficiency, and system performance for a multitude of applications such as media and entertainment, engineering, scientific computing, and AI development applications.

  • Page 19: Acpi Features

    Plug and Play, and an operating system-independent interface for configuration control. ACPI leverages the Plug and Play BIOS data structures, while providing a processor architecture-independent implementation that is compatible with appropriate Windows operating systems. For detailed information regarding OS support, please refer to the Supermicro website.

  • Page 20: Power Supply

    Super H13SRA-(T)F User's Manual 1.6 Power Supply As with all computer products, a stable power source is necessary for proper and reliable operation. It is even more important for processors that have high CPU clock rates where noisy power transmission is present. The H13SRA-(T)F motherboard accommodates a 24-pin ATX power connector.

  • Page 21: Chapter 2 Installation

    Chapter 2: Installation Chapter 2 Installation 2.1 Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic components. To avoid damaging your motherboard, it is important to handle them very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •...

  • Page 22: Processor And Heatsink Installation

    Thermal grease is pre-applied on a new heatsink. No additional thermal grease is needed. • Refer to the Supermicro website for updates on processor support. • All graphics in this manual are for illustrative purposes only. Your components may look different.
  • Page 23 Chapter 2: Installation Overview of the Processor Socket The processor socket is protected by a Pick-and-Place (PnP) Cover Cap and pre-installed with an External Cap. 1. External Cap 2. PnP Cover Cap 3. Socket sTR5...
  • Page 24 Super H13SRA-(T)F User's Manual Installing the Processor 1. With a T20 Torx-bit screwdriver, unscrew the screws holding down the Force Frame in the sequence of 3-2-1. The screws are numbered on the Force Frame next to each screw hole. Force Frame Screw #3 Screw #2 Screw #1...
  • Page 25 Chapter 2: Installation 3. Grip the two finger lift tabs of the Rail Frame and lift it up to open it. Rail Frame Lift Tabs 4. Remove the External Cap from the Rail Frame by pulling it out of the rail guides on the Rail Frame.
  • Page 26 Super H13SRA-(T)F User's Manual 5. Grip the handle of the Carrier Frame/Processor Assembly from its shipping tray, and while gripping the handle, align the flanges of the Carrier Frame onto the rails of the Rail Frame so its pins will be at the bottom when the Rail Frame is lowered later. 6.
  • Page 27 Chapter 2: Installation 8. Remove the PnP Cover Cap from the socket. Warning! The exposed socket contacts are extremely vulnerable and can be damaged easily. Do not touch or drop objects onto the contacts, and be careful removing the PnP Cover Cap and when placing the Rail Frame over the socket. 9.
  • Page 28 Super H13SRA-(T)F User's Manual 10. Gently lower the Force Frame down onto the Rail Frame and hold it in place until it is seated in the socket housing. Note that the Force Frame is spring loaded and has to be held in place before it is secured.
  • Page 29 Chapter 2: Installation Installing the Heatsink 1. After the Force Frame is secured and the CPU Package is in place, now you must install the heatsink to the frame. Lower the heatsink down till it rests securely over the four screw holes on the CPU Package on the socket frame. 2.

  • Page 30: Motherboard Installation

    Super H13SRA-(T)F User's Manual 2.3 Motherboard Installation All motherboards have standard mounting holes to fit different types of chassis. Make sure that the locations of all the mounting holes for both the motherboard and the chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly recommended because they ground the motherboard to the chassis.
  • Page 31 Chapter 2: Installation Installing the Motherboard 1. Install the I/O shield into the back of the chassis, if applicable. 2. Locate the mounting holes on the motherboard. See the previous page for the location. 3. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard against the mounting holes on the chassis.

  • Page 32: Memory Support And Installation

    Super H13SRA-(T)F User's Manual 2.4 Memory Support and Installation Note: Check the Supermicro website for recommended memory modules. Important: Exercise extreme care when installing or removing DIMM modules to pre- vent any possible damage. Memory Support This motherboard supports up to 4 TB ECC RDIMM/3DS RDIMM memory with speeds of up to 5200 MT/s (1DPC) or higher with overclocking support in four ECC DDR5 (288-pin) DIMM slots.
  • Page 33 Chapter 2: Installation General Guidelines for Optimizing Memory Performance • It is recommended to use DDR5 memory of the same type, size, and speed. • To achieve the best memory performance, a balanced memory population is recommended. LED1 (UID-LED) JUIDB1 (UID) USB9 (3.2 GEN2X2)
  • Page 34 Super H13SRA-(T)F User's Manual DIMM Installation Note: The DDR5 DIMM module is NOT hot-swappable and be sure to disconnect power for a minimum of 20 seconds before inserting or removing it. CTRL 1. Insert the desired number of DIMMs into the memory slots based on the recommended DIMM population table in this user's manual.

  • Page 35: Installation

    PCIe 4.0 X4 Follow the steps below to install the M.2 device. 2280 Note: It is strongly recommended that you in- 22110 stall an optional Supermicro M.2 heatsink (p/n H13SRA-TF REV:1.01 DESIGNED IN USA SNK-C0156L) on the M.2 device. M.2 Heatsink Installation (Optional) 1.
  • Page 36 3. Insert the M.2 device or the heatsink assembly into the M.2 socket at a 30-degree angle and press it down. Standard M.2 device M.2 device with Supermicro heatsink 4. Tighten the standoff screw to secure the M.2 device or the heatsink assembly into place. Do not overtighten so as to avoid damaging the M.2 device.
  • Page 37 2. Insert the M.2 device or the heatsink assembly into the M.2 socket at a 30-degree angle and press it down. M.2 device with Supermicro heatsink Standard M.2 device 3. Tighten the standoff screw to secure the M.2 device or the heatsink assembly into place.

  • Page 38: Rear I/O Ports

    Description Description Line In LAN2: RJ45 LAN Port Dedicated BMC LAN Port (default) (H13SRA-F: 1 GbE; H13SRA-TF: 10 GbE) Line Out USB9: USB 3.2 Gen. 2x2 Port 12 USB6: USB 3.2 Gen. 2 Port (default) Mic In LAN1: RJ45 LAN Port 13 USB7: USB 3.2 Gen.
  • Page 39 Front Speaker Out Center/Subwoofer Center/Subwoofer Pink ("Mic In" by default) Speaker Out Speaker Out Audio ports on the front panel of the Supermicro system (Front Panel) Green (Front Panel) Pink Side Speaker Out * Function depends on the driver and configuration. LED1...
  • Page 40 Super H13SRA-(T)F User's Manual COM Port One COM port (COM1) that supports serial link interface is located on the rear I/O panel. Refer to the layout below for the location of COM1. VGA Connection (Supported by BMC) One VGA port (VGA) is located on the rear I/O panel. The VGA connection provides analog interface support between the computer and the video displays.
  • Page 41 Two Ethernet LAN ports (LAN1, LAN2) and a dedicated BMC LAN port (BMC_LAN) are located on the rear I/O panel. • H13SRA-F supports dual 1 GbE LAN ports of LAN1/LAN2 (Broadcom BCM5720) • H13SRA-TF supports dual 10 GbE LAN ports of LAN1/LAN2 (Broadcom BCM57416) The dedicated BMC LAN port (BMC_LAN) provides LAN support for the Baseboard Management Controller (BMC).
  • Page 42 Super H13SRA-(T)F User's Manual Universal Serial Bus (USB) Ports and Headers The motherboard provides the following USB ports on the rear I/O panel: • Four USB 3.2 Gen. 2 ports (USB4/USB5/USB6/USB7; 10 Gb, Type-A) • One USB 3.2 Gen. 2x2 port (USB9; 20 Gb, Type-C) The motherboard also provides the following headers for front accessible USB connections with a cable (not provided): •...
  • Page 43 BMC on the motherboard. For more details on the UID LEDs and BMC LEDs, refer to the tables on the next page. Also, refer to the BMC User's Guide posted on our website at https://www.supermicro.com for more information on BMC. JF1 Header Pins...
  • Page 44 Super H13SRA-(T)F User's Manual (Continued from previous page) UID/BMC Reset Switch (JUIDB1) Features & Settings When Used as a UID LED Switch When Used as a BMC Reset Switch Work w/ Rear UID LED (LED1) & Front UID LED (JF1: Pin7/ Work with BMC Heartbeat LED (LEDBMC) Pin8) Rear UID LED...

  • Page 45: Front Control Panel

    These connectors are designed specifically for use with Supermicro chassis. Refer to the figure below for the descriptions of the front control panel buttons and LED indicators.
  • Page 46 Super H13SRA-(T)F User's Manual Front Control Panel LEDs Power Button Ground Reset Button Ground Power Fail (for LED6) 3.3V Red+ Blue+ (Blue LED_Cathode_UID) (Red OH/Fan Fail/PWR Fail for LED5/Blue UID LED) P3V3_STBY NIC2 Active LED NIC1 Active LED P3V3_STBY ID_UID/3.3V Stby HDD LED FP PWR LED 3.3V...
  • Page 47 Chapter 2: Installation Power On & BMC/BIOS Status LED Button The Power On and BMC/BIOS Status LED button is located on pins 1 and 2 of JF1. Momentarily contacting both pins will power on/off the system or display BMC/BIOS status. Refer to the tables below for more information.
  • Page 48 Super H13SRA-(T)F User's Manual Power Fail LED The Power Fail LED connection is located on pins 5 and 6 of JF1. When this LED turns solid red, it indicates a power failure. Refer to the table below for pin definitions. Power Fail LED Pin Definitions (JF1) Pin#...
  • Page 49 Chapter 2: Installation NIC1/NIC2 (LAN1/LAN2) The Network Interface Controller (NIC) LED connection for LAN port 1 is located on pins 11 and 12 of JF1, and LAN port 2 is on pins 9 and 10. Attach the NIC LED cables here to display network activity.
  • Page 50 Super H13SRA-(T)F User's Manual FP Power LED The Front Panel Power LED connection is located on pins 15 and 16 of JF1. Refer to the table below for pin definitions. FP Power LED Pin Definitions (JF1) Pins Definition 3.3V FP PWR LED NMI Button The non-maskable interrupt (NMI) button header is located on pins 19 and 20 of JF1.

  • Page 51: Connectors

    Chapter 2: Installation 2.8 Connectors Power Connections ATX Power Supply Connector The 24-pin power supply connector (JPW1) meets the ATX SSI EPS 12V specification. If required, you also need to connect the 8-pin 12V DC power connectors (JPW2 and JPW3) to the power supply to provide adequate power to your system.
  • Page 52 Super H13SRA-(T)F User's Manual (Continued from previous page) Important: To provide adequate power supply to the motherboard, be sure to con- nect the 24-pin ATX PWR and the required 8-pin PWR connectors to the power sup- ply. Failure to do so may void the manufacturer warranty on your power supply and motherboard.
  • Page 53 Chapter 2: Installation CPU/GPU Pump Power Connectors The motherboard has two 12 V 4-pin power connectors (12V_PUMP_PWR1 and 12V_PUMP_ PWR2) for optional CPU/GPU liquid cooling systems. When using a liquid cooling system, attach the pump power cable to the pump power connector. Pump Power Header Pin Definitions Pin#...
  • Page 54 Super H13SRA-(T)F User's Manual MCIO NVMe Connectors One PCIe 4.0 x8 MCIO connector, located at JMCIO-1/2, provide connections of two NVMe 2.5" SSDs (NOT hot-swappable, supported by TRX50) on the motherboard. Use these MCIO connectors to support high-speed PCIe NVMe storage devices. SATA Disk-On-Module Power Connector The SATA Disk-On-Module (DOM) power connector at JSD1 provides 5V power to a solid- state DOM storage devices connected to one of the SATA ports.
  • Page 55 Chapter 2: Installation Headers Fan Headers There are seven 4-pin fan headers (FAN1 – FAN4, FANA, FANB, FANC) on the motherboard. All these 4-pin fan headers are backwards compatible with the traditional 3-pin fans. However, fan speed control is available for 4-pin fans only by Thermal Management via BMC. Refer to the table below for pin definitions.
  • Page 56 Super H13SRA-(T)F User's Manual Speaker/Buzzer Header On the JD1 header, pins 1-4 are for the speaker and pins 3-4 are for the buzzer. If you wish to use an external speaker, connect its cable to pins 1-4. Speaker Connector Pin Definitions Pin# Signal Speaker...
  • Page 57 Chapter 2: Installation Chassis Intrusion A Chassis Intrusion header is located at JL1 on the motherboard. Attach the appropriate cable from the chassis to inform you when the chassis is opened. Refer to the table below for pin definitions. Chassis Intrusion Pin Definitions Pin# Definition...
  • Page 58 Super H13SRA-(T)F User's Manual Power SMB (I C) Header The Power System Management Bus (I C) header (JPI2C1) monitors the power supply, fan, and system temperatures. Refer to the table below for pin definitions. Power SMB Header Pin Definitions Pin# Definition Clock Data...
  • Page 59 JTPM1 is used to connect a Trusted Platform Module (TPM)/Port 80, which is available from Supermicro (optional). A TPM/Port 80 header is a security device that supports encryption and authentication in hard drives. It allows the motherboard to deny access if the TPM associated with the hard drive is not installed in the system.
  • Page 60 Super H13SRA-(T)F User's Manual Standby Power The Standby Power header is located at JSTBY1 on the motherboard. You must have a card with a Standby Power connector and a cable to use this feature. Refer to the table below for pin definitions. Standby Power Pin Definitions Pin#...
  • Page 61 Chapter 2: Installation SATA 3.0 Connections Four SATA 3.0 ports (SATA0 – SATA3) are located on the motherboard, which are supported by the AMD TRX50 chipset. These SATA ports support RAID 0/1/5/10. Internal Speaker/Buzzer The Internal Speaker/Buzzer (SP1) is used to provide audible indications for various beep codes.

  • Page 62: Jumper Settings

    Super H13SRA-(T)F User's Manual 2.9 Jumper Settings To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. See the diagram below for an example of jumping pins 1 and 2.
  • Page 63 Chapter 2: Installation CMOS Clear JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, the JBT1 jumper consists of contact pads to prevent accidentally clearing the contents of CMOS. To Clear CMOS 1. First power down the system and unplug the power cord(s). 2.
  • Page 64 Super H13SRA-(T)F User's Manual HD Audio Enable JPAC1 allows you to enable or disable the onboard high definition audio support. The default position is on pins 1-2 to enable onboard audio connections. Refer to the table below for jumper settings. Audio Enable/Disable Jumper Settings Jumper Setting...
  • Page 65 Chapter 2: Installation USB4/5 Standby Power Wake Up JPUSB1 allows you to enable or disable the USB4/5 power in S4 Hibernate mode. The default is on pins 1-2 to enable USB4/5 power in S4 Hibernate mode. Refer to the table below for jumper settings.

  • Page 66: Led Indicators

    The Activity LED is yellow and indicates connection/activity. The Link LED may be green or orange to indicate the speed of the connection. Refer to the tables below for more information. H13SRA-TF H13SRA-F Activity LED Link LED, Connection Link, Speed...
  • Page 67 Chapter 2: Installation BMC LAN LEDs A dedicated BMC LAN connection is provided on the rear I/O panel of the motherboard. The LED on the right indicates activity, and the LED on the left indicates the speed of the connection. Refer to the table below for more information. LAN 1/LAN 2 Link Activity...
  • Page 68 Super H13SRA-(T)F User's Manual M.2 LEDs Two M.2 LEDs are located at LED3601 and LED3602 on the motherboard. When the M.2 LED is blinking, M.2 device functions normally. Refer to the table below for more information. M.2 LED State LED Color Definition Green: Blinking Device Working...
  • Page 69 Chapter 2: Installation Unit ID LED The rear UID LED indicator is located at LED1. This UID indicator provides easy identification of a system that may need service. UID LED LED Indicator LED Color Definition Blue: On System Identified BMC Heartbeat LED A BMC Heartbeat LED is located at LEDBMC on the motherboard.

  • Page 70: Chapter 3 Troubleshooting

    Super H13SRA-(T)F User's Manual Chapter 3 Troubleshooting 3.1 Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/ or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any non hot-swap hardware components.
  • Page 71 Chapter 3: Troubleshooting No Video 1. If the power is on, but you do not have video, remove all add-on cards and cables. 2. Remove all memory modules and turn on the system (if the alarm is on, check the specs of memory modules, reset the memory, or try a different one).
  • Page 72 Super H13SRA-(T)F User's Manual Losing the System's Setup Configuration 1. Make sure that you are using a high-quality power supply. A poor-quality power supply may cause the system to lose the CMOS setup information. Refer to Chapter 1 for details on recommended power supplies. 2.

  • Page 73: Technical Support Procedures

    Before contacting Technical Support, please take the following steps. Also, please note that as a motherboard manufacturer, Supermicro also sells motherboards through its channels, so it is best to first check with your distributor or reseller for troubleshooting services. They should know of any possible problems with the specific system configuration that was sold to you.

  • Page 74: Frequently Asked Questions

    Question: How do I update my BIOS? Answer: It is recommended that you do NOT upgrade your BIOS if you are not experiencing any problems with your system. Please go to https://www.supermicro.com/en/support/ resources/downloadcenter/swdownload to download the BIOS/BMC/Bundle Firmware file for your motherboard.

  • Page 75: Battery Removal And Installation

    Chapter 3: Troubleshooting 3.4 Battery Removal and Installation Battery Removal To remove the onboard battery, follow the steps below: 1. Power off your system and unplug your power cable. 2. Locate the onboard battery as shown below. 3. Use a tool such as a pen or a small screwdriver, push the battery lock outwards to unlock it.

  • Page 76: Returning Merchandise For Service

    For faster service, you can also request a RMA authorization online (https://www.supermicro. com/RmaForm/). This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alternation, misuse, abuse or improper maintenance of products.

  • Page 77: Chapter 4 Uefi Bios

    Chapter 4: UEFI BIOS Chapter 4 UEFI BIOS 4.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the motherboard. The BIOS is stored on a chip and can be easily upgraded using the BMC WebUI or the SUM utility. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 78: Main Setup

    Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is the BIOS build date after the RTC (Real Time Clock) reset. Supermicro H13SRA-TF BIOS Version This feature displays the version of the BIOS ROM used in the system.

  • Page 79: Advanced Setup Configurations

    Chapter 4: UEFI BIOS 4.3 Advanced Setup Configurations Use the arrow keys to select the Advanced submenu and press <Enter> to access the submenu items: Warning: Take caution when changing the Advanced settings. An incorrect value, an improper DRAM frequency, or a wrong BIOS timing setting may cause the system to malfunction. When this occurs, restore the setting to the manufacturer default setting.
  • Page 80 Super H13SRA-(T)F User's Manual Bootup NumLock State Use this feature to set the Power-on state for the NumLock key. The options are On and Off. Wait For "F1" If Error Select Enabled to force the system to wait until the <F1> key is pressed if an error occurs. The options are Disabled and Enabled.
  • Page 81 Chapter 4: UEFI BIOS CPU Configuration  The following information is displayed. • Module Version SMT Control Use this feature to enable/disable simultaneous multithreading. After setting this feature to Enabled, please reboot the system for the changes to take effect. The options are Disabled, Enabled, and Auto.
  • Page 82 Super H13SRA-(T)F User's Manual Monitor and MWAIT Disable If this feature is set to Enabled, the MONITOR, MWAIT, MONITORX, and MWAITX opcodes will become invalid. The options are Enabled, Disabled, and Auto. L1 Stream HW Prefetcher Use this feature to disable/enable L1 stream HW prefetcher. The options are Disabled, Enabled, and Auto.
  • Page 83 Chapter 4: UEFI BIOS DMAr Support Use this feature to enable DMAr system protection during POST. The options are Disabled, Enabled, and Auto. DMA Protection Use this feature to enable DMA remap support in the IVRS IVinfo field. The options are Auto, Enabled, and Disabled.
  • Page 84 Super H13SRA-(T)F User's Manual DfPstate (Available when "APBDIS" is set to 1) Use this feature to set the DfPstate index from 0–4. The default setting is 0. Power Profile Selection Use this feature to set a power profile. The options are High Performance Mode, Efficiency Mode, and Maximum IO Performance Mode.
  • Page 85 Chapter 4: UEFI BIOS Chipselect Interleaving Use this feature to interleave memory blocks across the DRAM chip for node 0. The options are Disabled and Auto. BankSwapMode Use this feature to set the bank swap mode. The options are Auto, Disabled, and Swap CPU.
  • Page 86 Super H13SRA-(T)F User's Manual Trusted Computing (Available when a TPM device is installed  and detected by the BIOS) When a Trusted-Platform Module (TPM) device is detected by your system, the following information is displayed: • TPM 2.0 Device Found •...
  • Page 87 Chapter 4: UEFI BIOS Storage Hierarchy (Available when "Security Device Support" is set to Enable) Select Enabled for TPM Storage Hierarchy support that is intended to be used for non-privacy- sensitive operations by a platform owner such as an IT professional or the end user. Storage Hierarchy has an owner policy and an authorization value, both of which can be set and are held constant (-rarely changed) through reboots.
  • Page 88 Super H13SRA-(T)F User's Manual Super IO Configuration (Available when your system supports this feature) The following information is displayed. • Super IO Chip Serial Port 1 Configuration Serial Port 1 Select Enabled to enable serial port 1. The options are Disabled and Enabled. Device Settings (Available when "Serial Port"...
  • Page 89 Chapter 4: UEFI BIOS Serial Port Console Redirection  COM1 (Available when your system supports the serial port of COM1) Console Redirection Select Enabled to enable COM port 1 for Console Redirection, which allows a client machine to be connected to a host machine at a remote site for networking. The options are Disabled and Enabled.
  • Page 90 Super H13SRA-(T)F User's Manual Flow Control Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.
  • Page 91 Chapter 4: UEFI BIOS Bits Per Second Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines.
  • Page 92 Super H13SRA-(T)F User's Manual Putty KeyPad This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400. Legacy Console Redirection Legacy Console Redirection Settings Legacy Serial Redirection Port Use this feature to select a COM port to display redirection of Legacy OS and Legacy OPROM messages.
  • Page 93 Chapter 4: UEFI BIOS Terminal Type EMS Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII character set. Select VT100+ to add color and function key support. Select ANSI to use the extended ASCII character set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes.
  • Page 94 Super H13SRA-(T)F User's Manual PCIe/PCI/PnP Configuration The following information is displayed: • PCI Bus Driver Version PCI Devices Common Settings: Above 4G Decoding (Available when the system supports 64-bit PCI decoding) Select Enabled to decode a PCI device that supports 64-bit in the space above 4G Address. The options are Disabled and Enabled.
  • Page 95 Chapter 4: UEFI BIOS NVMe RAID Mode Use this feature to enable/disable NVMe RAID mode. The options are Disabled and Enabled. Note: Set this feature to Enabled if you'd like to create RAID level(s) using NVMe devices. Please also be sure that the required NVMe devices have been connected to your motherboard.
  • Page 96 Super H13SRA-(T)F User's Manual Network Configuration  Network Stack Select Enabled to enable Preboot Execution Environment (PXE) or Unified Extensible Firmware Interface (UEFI) for network stack support. The options are Disabled and Enabled. IPv4 PXE Support (Available when "Network Stack" is set to Enabled) Select Enabled to enable IPv4 PXE boot support.
  • Page 97 Chapter 4: UEFI BIOS Local IP Address (Available when "Configured" is set to Enabled and "Enabled DHCP" is set to Disabled) Use this feature to enter an IP address for the local machine. Local NetMask (Available when "Configured" is set to Enabled and "Enabled DHCP"...
  • Page 98 Super H13SRA-(T)F User's Manual Advanced Configuration (Available when "Policy" is set to manual) New IPv6 address Use this feature to enter the IPv6 address for the local machine. New Gateway addresses Use this feature to set the gateway address for the local machine. New DNS addresses Use this feature to set the DNS server address for the local machine.
  • Page 99 Supermicro KMS TCP Port number Use this feature to set the TCP port number used in Supermicro KMS Server. The valid range is 100–9999. The default setting is 5696. Do not change the default setting unless a different TCP port number has been specified and used in the Supermicro KMS Server.
  • Page 100 Super H13SRA-(T)F User's Manual KMS Time Out Use this feature to set the KMS server connecting timeout (in seconds). The default setting is 5 (seconds). TimeZone Use this feature to set the correct time zone. The default setting is 0 (not specified). Client UserName Press <Enter>...
  • Page 101 Chapter 4: UEFI BIOS Super-Guardians Configuration Press <Del> during system boot to enter the BIOS Setup utility. Navigate to the Advanced tab. Use the arrow keys to select Super-Guardians Configuration and press <Enter>.
  • Page 102 Super H13SRA-(T)F User's Manual Super-Guardians Protection Policy Use this feature to enable the Super-Guardians Protection Policy. The options are Storage, System, and System and Storage. The default setting is Storage. Set this feature to Storage to protect and have secure access to your storage devices (TCG NVMe devices) with the Authentication-Key (AK).
  • Page 103 Note 1: Be sure that the KMS Server is ready before configuring this feature. Note 2: Use the professional KMS Server solutions (e.g., Thales Server) or the Supermicro PyKMIP Software Package to establish the KMS Server. KMS Server Retry Count (Available when "TPM Security Policy" and "USB Security Policy"...
  • Page 104 Super H13SRA-(T)F User's Manual TPM Security Policy (Available when "KMS Security Policy" and "USB Security Policy" are set to Disabled) The options are Disabled and Enabled. The default setting is Disabled. Set this feature to Enabled to enable the TPM Security Policy. Save settings (you can press <F4>) and reboot the system for changes to take effect.
  • Page 105 Chapter 4: UEFI BIOS Load Authentication-Key (Available when "KMS Security Policy" and "TPM Security Policy" are set to Disabled) The options are Disabled and Enabled. The default setting is Disabled. Set this feature to Enabled; save settings (you can press <F4>) and reboot the system for changes to take effect. While booting, the BIOS will automatically load the Authentication-Key (filename: TPMAuth.
  • Page 106 Super H13SRA-(T)F User's Manual Save Authentication-Key (Available when "TPM Security Policy" is set to Enabled and "USB Security Policy" is set to Disabled) The options are Disabled and Enabled. The default setting is Disabled. Set this feature to Enabled; save settings (you can press <F4>) and reboot the system for changes to take effect. While booting, the BIOS will automatically save the Authentication-Key (filename: TPMAuth.
  • Page 107 Chapter 4: UEFI BIOS USB Security Policy (Available when "KMS Security Policy" and "TPM Security Policy" are set to Disabled) Use this feature to enable the USB Security Policy. The options are Disabled and Enabled. The default setting is Disabled. Set this feature to Enabled; save settings (you can press <F4>) and reboot the system for changes to take effect.
  • Page 108 Super H13SRA-(T)F User's Manual Supermicro 10GBASE-T Ethernet Contorller - (MAC address) Note: The Ethernet controller and MAC addresses shown above are based on you system features. Firmware Image Menu The following information is displayed: • Boot Code • • •...
  • Page 109 Chapter 4: UEFI BIOS Support RDMA Use this feature to disable/enable the RDMA support for this port. The options are Disables and Enabled. DCB Protocol Use this feature to disable/enable the DCB Protocol. The options are Disabled, Enabled (IEEE only), CEE (only), Both (IEEE preferred with fallback to CEE). LLDP nearest bridge Use this feature to disable/enable the LLDP nearest bridge state.
  • Page 110 Super H13SRA-(T)F User's Manual Pre-boot Wake On LAN Use this feature to set Pre-boot Wake on LAN (WOL). The options are Disabled and Enabled. VLAN Mode Use this feature to disable/enable the virtual LAN mode, which enables the use of a VLAN tag.
  • Page 111 Chapter 4: UEFI BIOS TLS Authenticate Configuration This submenu allows you to configure Transport Layer Security (TLS) settings. Server CA Configuration This feature allows you to configure the client certificate that is to be used by the server. Enroll Certification ...
  • Page 112 Super H13SRA-(T)F User's Manual Certification GUID Press <Enter> and input the certification GUID. Commit Changes and Exit  Use this feature to save all changes and exit TLS settings. Discard Changes and Exit  Use this feature to discard all changes and exit TLS settings. Delete Certification This feature is used to delete the certificate if a certificate has been enrolled in the system.
  • Page 113 Chapter 4: UEFI BIOS RAIDXpert2 Configuration Utility  Use this submenu to configure NVMe/SATA RAID settings (this motherboard supports RAID 0/1/5/10). • For NVMe RAID settings, please set "NVMe RAID Mode" (Advanced > PCIe/PCI/PnP Configuration, on page 95) to Enabled. •...
  • Page 114 Super H13SRA-(T)F User's Manual Controller Management  View Controller Information  Select Controller: Press <Enter> to select a controller. The following information is displayed: • Segment:Bus:Device:Function • PCI ID • Controller Physical Disk Count Rescan Disks  Use this feature to perform a rescan of all physical disks and arrays that are connected to the controller.
  • Page 115 Chapter 4: UEFI BIOS Select Physical Disks  Select Media Type Use this feature to select the physical disk media type. The options are HDD, SSD, and BOTH. The list of physical disk(s), including the related information, is displayed. Use the ar- row keys to select the desired physical disk.
  • Page 116 Super H13SRA-(T)F User's Manual Read Cache Policy: Use this feature to set the read policy. The options are Read Cache and No Cache. Write Cache Policy: Use this feature to set the write policy. The options are Write Back Cache and No Cache. Create Array ...
  • Page 117 Chapter 4: UEFI BIOS View Associated Physical Disks  Use this feature to display information of the physical disks that are associated with the array you selected by using the feature of "Select Array" above. Physical Disk (Available when the physical disk is detected by the BIOS) Use this feature to select the physical disk that you'd like to view its properties by us- ing the feature of "View Physical Disk Properties"...
  • Page 118 Super H13SRA-(T)F User's Manual Delete Array(s)  Confirm Set this feature to Enabled to delete the selected array(s). The options are Disabled and Enabled.  Press <Enter> to delete the selected array(s).  Press <Enter> to go back to the previous BIOS screen. Physical Disk Management ...
  • Page 119 Chapter 4: UEFI BIOS • Disk Protocol • Negotiated Link Speed The following information regarding associated array(s) is displayed: • Serial Number • Model Number Select Physical Disk Operations  Select Physical Disk: Press <Enter> to select a physical disk. Initialize Disk ...
  • Page 120 Super H13SRA-(T)F User's Manual AMD Overclocking  Accept  Press <Enter> to set the overclocking features. Manual CPU Overclocking  CPU Frequency Use this feature to set the CPU core frequency. VDDCR_CPU0 Voltage Use this feature to set the VDDCR_CPU0 Voltage (mV). VDDCR_CPU1 Voltage Use this feature to set the VDDCR_CPU1 Voltage (mV).
  • Page 121 Chapter 4: UEFI BIOS Prochot VRM Throttling The options are Auto, Enable, and Disable. Please note that disabling Prochot will dis- able the VRM ability to throttle the CPU when the voltage regulator is approaching its thermal limits. Peak Current Control Use this feature to enable/disable the Peak Current Control (PCC).
  • Page 122 Super H13SRA-(T)F User's Manual DDR Bus Configuration  Processor CA Drive Strengths Use this feature to set the drive strength for all CA0–13 IOs. The options are Auto, 120.0 Ohm, 60.0 Ohm, 40.0 Ohm, and 30.0 Ohm. Processor DQ Drive Strengths Use this feature to set the drive strength for all DQ and DMI IOs.
  • Page 123 Chapter 4: UEFI BIOS Dram ODT Impedance DQS_RTT_PARK Use this feature to set the DRAM On-die termination impedance for RTT_PARK. The options are Auto, RTT_OFF, RZQ (240), RZQ/2 (120), RZQ/3 (80), RZQ/4 (60), RZQ/5 (48), RZQ/6 (40), and RZQ/7 (34). DDR Controller Configuration ...
  • Page 124 Super H13SRA-(T)F User's Manual UCLK DIV1 MODE Use this feature to set the UCLK DIV mode. The options are Auto, UCLK=MEMCLK, and UCLK=MEMCLK/2. Precision Boost Overdrive  Precision Boost Overdrive Use this feature to set the Precision Boost Overdrive (PBO). The options are Auto, Dis- able, Enable, and Advanced.
  • Page 125 Chapter 4: UEFI BIOS CPU Boost Clock Overdrive (Available when "Precision Boost Overdrive" is set to Advanced) Use this feature to set the maximum CPU frequency that might be automatically achieved by the CPU Boost Algorithm. The options are Disabled, Enabled (Positive), and Enabled (Negative).
  • Page 126 Super H13SRA-(T)F User's Manual When "Curve Optimizer" is set to Per Core, the features below will be available for configuration. • Core 0 Curve Optimizer Sign – Core 95 Curve Optimizer Sign: Use this feature to set the direction of the curve shift on this core. The option of Positive shifts the curve to the higher voltages.
  • Page 127 Chapter 4: UEFI BIOS VDDP Voltage Adjust (Available when "VDDP Voltage Control" is set to Manual) Use this feature to set the VDDP voltage, which is derived from your DRAM voltage (VDDIO_Mem). The default setting is 0. SoC/Uncore OC Mode ...
  • Page 128 Super H13SRA-(T)F User's Manual LCLK Frequency Control  LCLK Frequency Control Use this feature to set the LCLK frequency. The options are Auto and Manual. Set this feature to Auto to have the system default settings. The option of Manual allows you to configure the LCLK frequency.
  • Page 129 Chapter 4: UEFI BIOS Enable Platform PMIC Control The options are Auto, Enable, and Disable. If this feature is set to Enable, the DDR PMIC voltages are not adjusted by the processor firmware, and could be by EC or other platform based mechanism. VPP Voltage Control The following information is displayed: Current VPP Voltage VPP Ctrl...

  • Page 130: Bmc

    Super H13SRA-(T)F User's Manual 4.4 BMC Use this feature to configure BMC settings. BMC Firmware Revision This feature indicates the BMC firmware revision used in your system. BMC STATUS This feature indicates the status of the BMC firmware installed in your system. System Event Log Enabling/Disabling Options SEL Components...
  • Page 131 Chapter 4: UEFI BIOS When SEL is Full (Available when "SEL Components" is set to Enabled) This feature allows you to determine what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full.
  • Page 132 Super H13SRA-(T)F User's Manual Station MAC Address (Available when "Configuration Address Source" is set to Static) This feature displays the Station MAC address for this computer. Mac addresses are six two-digit hexadecimal numbers. Gateway IP Address (Available when "Configuration Address Source" is set to Static) This feature displays the Gateway IP address for this computer.
  • Page 133 Chapter 4: UEFI BIOS Preferred DNS server IP (Available when "Advanced Settings" above is set to Manually obtain DNS server IP) This feature allows you to set the preferred DNS server IP. Alternative DNS server IP (Available when "Advanced Settings" above is set to Manually obtain DNS server IP) This feature allows you to set the alternative DNS server IP.

  • Page 134: Event Logs

    Super H13SRA-(T)F User's Manual 4.5 Event Logs Use this feature to configure Event Logs settings. Note: After you've made any changes in this section, please be sure to reboot the system for the changes to take effect. Change SMBIOS Event Log Settings Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable System Management BIOS (SMBIOS) Event Logging during system...
  • Page 135 Chapter 4: UEFI BIOS SMBIOS Event Log Standard Settings Log System Boot Event (Available when "SMBIOS Event Log" is set to Enabled) Select Enabled to log system boot events. The options are Enabled and Disabled. MECI (Available when "SMBIOS Event Log" is set to Enabled) Enter the increment value for the multiple event counter.

  • Page 136: Security

    Super H13SRA-(T)F User's Manual 4.6 Security This feature allows you to configure the following security settings for the system. Lockdown Mode (Available when the DCMS key is activated) Select Enabled to support Lockdown Mode that will prevent the existing data or keys stored in the system from being altered or changed in an effort to preserve system integrity and security.
  • Page 137 This section allows you to configure the Supermicro-proprietary Security Erase settings. When this section is selected, the following information is displayed. Please note that the order of the following information may differ based on the storage devices being detected.
  • Page 138 New Password (Available when "Password" above has been set) Use this feature to set the new user password for the storage device which allows you to configure the Supermicro Security Erase settings by using this new user password. P4: (Storage Device Name) This section is available when the storage device is detected by the BIOS.
  • Page 139 Secure Boot Note: For detailed instructions on how to configure Security Boot settings, please refer to the Security Boot Configuration User's Guide posted on the web page under the link: https://www.supermicro.com/support/manuals/. The following information is displayed: • System Mode •...
  • Page 140 Super H13SRA-(T)F User's Manual Provision Factory Defaults Select Enabled to install provision factory default settings after a platform reset while the system is in the Setup Mode. The options are Disabled and Enabled. Restore Factory Keys (Available when any secure keys have been installed) Select Yes to restore manufacturer default keys to ensure system security.
  • Page 141 Chapter 4: UEFI BIOS Authorized Signatures (db) Use this feature to enter and configure a set of values to be used as Authorized Signatures for the system. These values also indicate the sizes, keys numbers, and the sources of the authorized signatures. Select Update to update your "Authorized Signatures". Select Append to append your "Authorized Signatures".
  • Page 142 Super H13SRA-(T)F User's Manual • Security Enabled: • Security Locked: • Security Frozen: • User Pwd Status: • Admin Pwd Status: Set Admin Password Use this feature to set the administrator password for this storage device. Set User Password (Available when the administrator password has been set) Use this feature to set the user password for this storage device.

  • Page 143: Boot

    Chapter 4: UEFI BIOS 4.7 Boot Use this feature to configure Boot settings: FIXED BOOT ORDER Priorities This feature prioritizes the order of a bootable device from which the system will boot. Press <Enter> on each item sequentially to select devices. The features below are displayed for configuration.
  • Page 144 Super H13SRA-(T)F User's Manual  Delete Boot Option This feature allows you to select a boot device to delete from the boot priority list. Delete Boot Option This feature allows you to remove an EFI boot option from the boot priority list. ...

  • Page 145: Save & Exit

    Chapter 4: UEFI BIOS 4.8 Save & Exit Select Save & Exit from the BIOS Setup screen to configure the settings below. Save Options Discard Changes and Exit Use this feature to exit from the BIOS Setup utility without making any permanent changes to the system configuration and reboot the computer.
  • Page 146 Super H13SRA-(T)F User's Manual Default Options Restore Optimized Defaults Select this feature and press <Enter> to load manufacturer optimized default settings which are intended for maximum system performance but not for maximum stability. Note: Please reboot the system for the changes to take effect to ensure that your system has the optimized default settings.

  • Page 147: Appendix A Bios Post Codes

    Appendix A: BIOS Codes Appendix A BIOS POST Codes A.1 BIOS POST Codes The AMI BIOS supplies additional checkpoint codes, which are documented online at https:// www.supermicro.com/support/manuals/ ("AMI BIOS POST Codes User's Guide"). For information on AMI updates, please refer to https://www.ami.com/products/.

  • Page 148: Appendix B Software

    1. Create a method to access the Microsoft Windows installation ISO file. That can be a USB flash or media drive. 2. Retrieve the proper RST/RSTe driver. Go to the Supermicro web page for your motherboard and click on "Download the Latest Drivers and Utilities", select the proper driver, and copy it to a USB flash drive.
  • Page 149 Appendix B: Software 4. During Windows Setup, continue to the dialog where you select the drives on which to install Windows. If the disk you want to use is not listed, click on “Load driver” link at the bottom left corner. To load the driver, browse the USB flash drive for the proper driver files.

  • Page 150: Driver Installation

    Super H13SRA-(T)F User's Manual B.2 Driver Installation The Supermicro website that contains drivers and utilities for your system is at https://www. supermicro.com/wdl/driver. Some of these must be installed, such as the chipset driver. After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard.

  • Page 151: Superdoctor 5

    Appendix B: Software B.3 SuperDoctor 5 The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 152: Bmc

    When logging in to the BMC for the first time, please use the unique password provided by Supermicro to log in. You can change the unique password to a user name and password of your choice for subsequent logins.

  • Page 153: Appendix C Standardized Warning Statements

    The following statements are industry standard warnings, provided to warn the user of situations where a potential bodily injury may occur. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.
  • Page 154 Super H13SRA-(T)F User's Manual Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant. ¡Advertencia! Existe peligro de explosión si la batería se reemplaza de manera incorrecta.
  • Page 155 Appendix C: Standardized Warning Statements Product Disposal Warning! Ultimate disposal of this product should be handled according to all na- tional laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、 国の関係する全ての法律 ・ 条例に従い処理する必要があります。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

This manual is also suitable for:

H13sra-tf

Table of Contents
