H13DSG-O-CPU
USER'S MANUAL
Revision 1.0a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H13DSG-O-CPU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supermicro H13DSG-O-CPU

Summary of Contents for Supermicro H13DSG-O-CPU

  • Page 1 H13DSG-O-CPU USER’S MANUAL Revision 1.0a...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 About This Manual This manual is written for system integrators, IT technicians and knowledgeable end users. It provides information for the installation and use of the H13DSG-O-CPU motherboard. About This Motherboard Built upon the functionality and capability of the Dual AMD EPYC...

  • Page 4: Contacting Supermicro

    H13DSG-O-CPU User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support)

  • Page 5: Table Of Contents

    Preface Table of Contents Contacting Supermicro ......................4 Chapter 1 Introduction 1.1 Quick Reference ........................9 Quick Reference Table ......................10 Motherboard Features .......................12 Block Diagram ........................14 1.2 Processor and Chipset Overview ..................15 1.3 Special Features ........................15 Recovery from AC Power Loss ..................15 1.4 System Health Monitoring ....................16...
  • Page 6 H13DSG-O-CPU User's Manual 2.6 Connectors .........................38 Power Supply Connections ....................38 Headers ..........................40 2.7 Jumper Settings .........................41 How Jumpers Work ......................41 2.8 LED Indicators ........................42 Chapter 3 Troubleshooting 3.1 Troubleshooting Procedures ....................43 Before Power On ......................43 No Power ..........................43 No Video ...........................44 System Boot Failure ......................44...

  • Page 7: Chapter 1 Introduction

    • If you have any questions, please contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level.

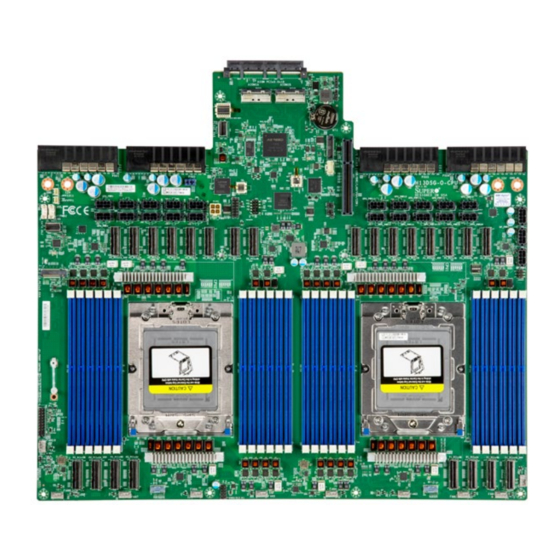

  • Page 8 H13DSG-O-CPU User's Manual Figure 1-1. H13DSG-O-CPU Motherboard Image Note: All graphics shown in this manual were based upon the latest PCB revision available at the time of publication of the manual. The motherboard you received may or may not look...

  • Page 9: Quick Reference

    JNCSI1 PSU2 JSLOT1 PSU1 JNCSI1 JPW_STBY1 PSU3 PSU4 JNCSI2 JPW1 JPW2 JPW4 JNCSI2 PWR4 PWR3 PWR1 PWR2 H13DSG-O-CPU JTPM1 REV:1.01 JNVI2C1 BAR CODE JPFR3 IPMI CODE DESIGNED IN USA JNVVPP1 JNVI2C1 JPWR9 JTPM1 JPWR7 BIOS LICENSE P1_PCIe4B JNVVPP1 JPW_STBY1 JIPMB1...

  • Page 10: Quick Reference Table

    Description JIPMB1 4-pin External I C Header (for an IPMI card) AIOM Supermicro Advanced I/O Module JSLOT1 Supermicro I/O Riser Slot (AOM-PIO-i2G) JMCIO-RA1/JMCIO-RA2 AIOM Input. Connection to any JSA/JSB. USB2/3 (2.0) USB2/3 (2.0) Front Side Pin Header P1-PCIe1A P1-PCIe1B P1-PCIe2A...
  • Page 11 Chapter 1: Introduction Connector Description JNCSI1~2 NCSI Chassis Intrusion Header JPW1~JPW4 Serverboard Main Power Supply Connector GPU_PWR1~20 12V 8-pin Power Connector for Riser Card GPU BP PWR1~3 12V 8-pin Power Connector for Backplane JTPM1 Trusted Platform Module/Port 80 Connector Note: Jumpers, connectors, switches, and LED indicators that are not described in the preceding tables are for manufacturing testing purposes only, and are not covered in this manual.

  • Page 12: Motherboard Features

    H13DSG-O-CPU User's Manual Motherboard Features • Dual AMD EPYC 9004 series processors in SP5 sockets Memory • Up to 6TB registered ECC DDR5 4800 MT/s speed, LRDIMM memory in 24 slots DIMM Size • Up to 256GB Chipset • System on Chip (SoC) Expansion Slots •...
  • Page 13 Chapter 1: Introduction System Health Monitoring • Onboard voltage monitoring for +3.3V, +5V, +12V, +3.3VStb, +5Stb • Onboard temperature monitoring for CPU, System, Memory, and Peripheral • CPU Thermal Trip support Fan Control • Ten 4-pin fan headers • Fan speed control System Management •...

  • Page 14: Block Diagram

    H13DSG-O-CPU User's Manual Block Diagram H13DSG-O-CPU REV 1.00 JIO1 JMC4A,B PCIE G3 BY4 MPLINK M.2 GEN3 BY4 100MHz CLK MPLINK JMC3A,B JMC10A,B JMC2A,B MPLINK JMC9A,B MPLINK MPLINK JMC1A,B JMC8A,B MPLINK JMC5A,B JMC7A,B MPLINK PCIE G3 BY4 JIO1 JMC11A,B REAR I/O...

  • Page 15: Processor And Chipset Overview

    5-nm process architecture, and is optimized for embedded storage solutions, networking applications, or cloud-computing platforms. With support of the new microarchitecture 5nm process technology, the H13DSG-O-CPU drastically increases system performance for a multitude of server applications.

  • Page 16: System Health Monitoring

    H13DSG-O-CPU User's Manual 1.4 System Health Monitoring This section describes the health monitoring features of the H13DSG-O-CPU motherboard. The motherboard has an onboard chip that supports system health monitoring. Once a voltage becomes unstable, a warning is given or an error message is sent to the screen. The user can adjust the voltage thresholds to define the sensitivity of the voltage monitor.

  • Page 17: Acpi Features

    Chapter 1: Introduction 1.5 ACPI Features ACPI stands for Advanced Configuration and Power Interface. The ACPI specification defines a flexible and abstract hardware interface that provides a standard way to integrate power management features throughout a computer system including its hardware, operating system and application software.

  • Page 18: Chapter 2 Installation

    H13DSG-O-CPU User's Manual Chapter 2 Installation 2.1 Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent damage to your motherboard, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.

  • Page 19: Motherboard Installation

    Chapter 2: Installation 2.2 Motherboard Installation All motherboards have standard mounting holes to fit different types of chassis. Make sure that the locations of all the mounting holes for both the motherboard and the chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly recommended because they ground the motherboard to the chassis.
  • Page 20 H13DSG-O-CPU User's Manual Figure 2-1. Motherboard Mounting Holes...

  • Page 21: Installing The Motherboard

    Chapter 2: Installation Installing the Motherboard Note: Always connect the power cord last, and always remove it before adding, removing, or changing any hardware components. Install the I/O shield into the chassis. 1. Install the I/O shield into the back of the chassis. 2.

  • Page 22: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support. Installing the Processor and Heatsink 1. Unscrew the screw #1 holding down the force frame.
  • Page 23 Chapter 2: Installation 2. The spring-loaded force frame will raise up after the screw securing it (#1) is removed. Gently allow it to lift up to its stopping position. Force Frame 3. Lift the rail frame up by gripping the lift tabs near the front end of the rail frame. While keeping a secure grip of the rail frame, lift it to a position so you can do the next step of removing the external cap.
  • Page 24 H13DSG-O-CPU User's Manual 4. Remove the external cap from the rail frame by pulling it upwards through the rail guides on the rail frame. External Cap 5. The CPU package is shipped from the factory with the carrier frame pre-assembled.
  • Page 25 Chapter 2: Installation Note: You can only install the CPU inside the socket in one direction with the handle at the top. Make sure that it is properly inserted into the CPU socket before closing the rail frame plate. If it doesn't close properly, do not force it as it may damage your CPU. Instead, open the rail frame plate again, and double-check that the CPU is aligned properly.
  • Page 26 H13DSG-O-CPU User's Manual 8. Gently lower the rail frame down onto the socket until the latches on the rail frame engage with the socket housing and it rests in place. DO NOT force it into place! 9. The force frame is spring loaded and has to be held in place before it is secured.
  • Page 27 Chapter 2: Installation 10. Place and re-screw the screw in the middle to the way you removed it. When finished, the force frame will be secure over both the rail frame and CPU package. 11. After the force frame is secured and the CPU package is in place, now you must install the heatsink to the frame.
  • Page 28 H13DSG-O-CPU User's Manual 12. Using a diagonal pattern, tighten the six screws down on the heatsink in a clockwise fashion till it is secure. The heatsink will now be secured and you have finished installing the processor and heatsink onto the motherboard. Repeat this procedure for any remaining CPU sockets on the motherboard.
  • Page 29 Chapter 2: Installation Un-installing the Processor and Heatsink 1. Remove the heatsink attached to the top of the CPU package by reversing the installation procedure. 2. Clean the thermal grease left by the heatsink on the CPU package lid to limit the risk of it contaminating the CPU package land pads or contacts in the socket housing.

  • Page 30: Memory Support And Installation

    Memory Support The H13DSG-O-CPU supports up to 6TB of ECC DDR5 4800 MT/s speed, RDIMM/ LRDIMM/3DS memory in 24 slots. Refer to the table below for additional memory information. Note: Check the Supermicro website for possible updates to memory support.
  • Page 31 Chapter 2: Installation Populating RDIMM/RDIMM 3DS DDR5 Memory Modules with AMD EPYC 9004 series Processor DIMM Population Maximum DIMM Capacity Type Maximum Frequency (MT/s) DIMM1 1 Channel 12 Channels 1R (1 rank) 32GB 384GB 4800 RDIMM 2R (2 ranks) 64GB 768GB 4800 2S2R (4 ranks)

  • Page 32: Dimm Module Population Sequence

    H13DSG-O-CPU User's Manual DIMM Module Population Sequence There is no specific order or sequence required when installing memory modules. However do keep the following in mind: • It is recommended that DDR5 DIMM modules of the same type, size and speed should be installed.

  • Page 33: Dimm Installation

    Chapter 2: Installation DIMM Installation 1. Insert the desired number of DIMMs into the memory slots, see Memory Support for details on momory population guidelines. 2. Push the release tabs outwards on both ends of the DIMM slot to unlock it. Receptive Point 3.

  • Page 34: Front Control Panel

    JF1 contains header pins for various buttons and indicators located on a control panel at the front of the chassis. This connector is designed specifically for use with Supermicro chassis. See the figure below for the descriptions of the front control panel buttons and LED indicators.
  • Page 35 Chapter 2: Installation Power Switch The Power Switch connection is located on pins 1 and 2 of JF1. Attach it to a hardware power switch on the computer case to power on/off the system. To force the system to be powered off, press the button for at least 4 seconds.
  • Page 36 Note: UID can also be triggered via IPMI on the serverboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website at http://www.supermicro.com. UID LED Pin Definitions (JF1)
  • Page 37 Chapter 2: Installation Power LED The Power LED connection is located on pins 15 and 16 of JF1. Attach a cable to Pin 15 and Pin 16 to show system power status. Refer to the table below for pin definitions. Power LED Pin Definitions (JF1) Pin#...

  • Page 38: Connectors

    2.6 Connectors Power Supply Connections Power Supply Connectors JPW1~JPW4 are the 12V power sources for the H13DSG-O-CPU motherboard. Backplane 12V 8-pin Power Connectors BP_PWR1, BP_PWR2, and BP_PWR3 are 8-pin 12V DC power inputs for the system's backplane. Refer to the table below for pin definitions.
  • Page 39 Front Panel Connector (JF1) JF1 contains various buttons and indicators that are normally located on a control panel at the front of the chassis. The JF1 connector is designed specifically for use with the Supermicro chassis. TPM Header/Port 80 Connector A Trusted Platform Module (TPM)/Port 80 header is located at JTPM1 to provide TPM support and Port 80 connection.

  • Page 40: Headers

    H13DSG-O-CPU User's Manual Headers Fan Headers There are ten fan headers on the motherboard. These are 4-pin fan headers; pins 1-3 are backward compatible with traditional 3-pin fans. The onboard fan speeds are controlled by Fan Mode in the BMC. When using Fan Mode setting, please use all 4-pin fans.

  • Page 41: Jumper Settings

    Chapter 2: Installation 2.7 Jumper Settings How Jumpers Work To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin #1 is identified with a square solder pad on the printed circuit board. See the diagram below for an example of jumping pins 1 and 2.

  • Page 42: Led Indicators

    H13DSG-O-CPU User's Manual 2.8 LED Indicators UID LED Indicator (LED1) A UID LED is located at LED1. The front UID LED is located on the front panel. When you press the UID switch, both rear LED1 and front UID LED indicators will turn on. Press the UID switch again to turn off the LED indicators.

  • Page 43: Chapter 3 Troubleshooting

    Chapter 3: Troubleshooting Chapter 3 Troubleshooting 3.1 Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/ or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any non hot-swap hardware components.

  • Page 44: No Video

    H13DSG-O-CPU User's Manual No Video 1. Check that the VGA cable is connected properly, and the monitor is on. 2. Check if you follow the guidelines to install the memory module (see DIMM Module Population in chapter 2). 3. Reseat the memory DIMM module.

  • Page 45: When The System Becomes Unstable

    2. Memory support: Make sure that the memory modules are supported by testing the modules using memtest86 or a similar utility. Note: Refer to the product page on our website at http://www.supermicro.com for memory and CPU support and updates. 3. HDD support: Make sure that all hard disk drives (HDDs) work properly. Replace the bad HDDs with good ones.

  • Page 46: Technical Support Procedures

    H13DSG-O-CPU User's Manual 6. To find out if a component is good, swap this component with a new one to see if the system will work properly. If so, then the old component is bad. You can also install the component in question in another system.

  • Page 47: Frequently Asked Questions

    Chapter 3: Troubleshooting 3.3 Frequently Asked Questions Question: What type of memory does my motherboard support? Answer: The H13DSG-O-CPU motherboard supports up to 6TB of ECC DDR5 4800 MT/s speed, LRDIMM memory in 24 slots. See Section 2.4 for details on installing memory.

  • Page 48: Returning Merchandise For Service

    H13DSG-O-CPU User's Manual 3.4 Returning Merchandise for Service A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number.

  • Page 49: Proper Battery Disposal

    Chapter 3: Troubleshooting Proper Battery Disposal Please handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.

  • Page 50: Chapter 4 Uefi Bios

    UEFI BIOS 4.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the H13DSG-O-CPU motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 51: Main Setup

    Chapter 4: UEFI BIOS 4.2 Main Setup When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen. The Main BIOS setup screen is shown below.
  • Page 52 H13DSG-O-CPU User's Manual Supermicro H13DSG-O-CPU BIOS Version This item displays the version of the BIOS ROM used in the system. Build Date This item displays the date when the version of the BIOS ROM used in the system was built.

  • Page 53: Advanced

    Chapter 4: UEFI BIOS 4.3 Advanced Use the arrow keys to select Boot Setup and press <Enter> to access the submenu items. Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable.
  • Page 54 H13DSG-O-CPU User's Manual Bootup NumLock State Use this feature to set the Power on state for the <Numlock> key. The options are On and Off. Wait For "F1" If Error Use this feature to force the system to wait until the 'F1' key is pressed if an error occurs.
  • Page 55 Chapter 4: UEFI BIOS CPU Configuration CPU Configuration SMT Control Use this setting to specify Simultaneous Multithreading. Options include Disabled, Enabled and Auto. Core Performance Boost This setting is used to configure for Core Performance Boost. Options include Disabled and Auto.
  • Page 56 H13DSG-O-CPU User's Manual Monitor and MWAIT Disable Select Enable to support Monitor and Mwait. MWAIT instruction provides hints to allow the processor to enter an implementation-dependent optimized state options include Enabled, Disabled and Auto. L1 Stream HW Prefetcher / L2 Stream HW Prefetcher This setting is used to enable or disable the L1/L2 Stream Hardware Prefetcher.
  • Page 57 Chapter 4: UEFI BIOS CPU1 PCIe Package Group G2 This setting selects the PCIe port bifurcation configuration for the selescted slot. The options include Auto, x4x4x4x4, x4x4x8, x8x4x4, x8x8 and x16. CPU1 PCIe Package Group P3 This setting selects the PCIe port bifurcation configuration for the selescted slot. The options include Auto, x4x4x4x4, x4x4x8, x8x4x4, x8x8 and x16.
  • Page 58 H13DSG-O-CPU User's Manual CPU1 PCIe Package Group P2 This setting selects the PCIe port bifurcation configuration for the selescted slot. The options include Auto, x4x4x4x4, x4x4x8, x8x4x4, x8x8 and x16. CPU1 PCIe Package Group G2 This setting selects the PCIe port bifurcation configuration for the selescted slot. The options include Auto, x4x4x4x4, x4x4x8, x8x4x4, x8x8 and x16.
  • Page 59 Chapter 4: UEFI BIOS DMA Protection Enable DMA remap support in IVRS IVinfo Field. Options include Auto, Enabled and Disabled. DRTM VIrtual Device Support Enable DRTM ACPI virtual device. Options include Disabled, Enabled and Auto. ACS Enable Use this setting to enable/disable ACS. Options include Enabled, Disabled and Auto. TDP Control Use this setting to configure the TDP Control.
  • Page 60 H13DSG-O-CPU User's Manual Memory Interleaving This setting controls fabric level memory interleaving. Note that the channel, die and socket have requirements on memory populations and it will be ignored if the memory doesn't support the selected option. Options include Disabled and Auto.
  • Page 61 Chapter 4: UEFI BIOS CPU1 Memory Information CPU1 Memory Information These sections are for informational purposes. They will display some details about the detected memory according to each CPU on the motherboard, such as: • Detected Size (per slot, in MB) •...
  • Page 62 H13DSG-O-CPU User's Manual ACPI SRAT L3 Cache As NUMA Domain Use this setting to enabe/disable ACPI SRAT L3 Cache As NUMA Domain. The options are Disabled, Enabled and Auto. Super IO Configuration Super IO Configuration The following Super IO information will display: •...
  • Page 63 Chapter 4: UEFI BIOS Serial Port Console Redirection COM1 Console Redirection Select Enabled to enable console redirection support for a serial port specified by the user. The options are Disabled and Enabled. SOL/COM2 Console Redirection Select Enabled to enable console redirection support for a serial port specified by the user. The options are Disabled and Enabled.
  • Page 64 H13DSG-O-CPU User's Manual Stop Bits A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.
  • Page 65 Chapter 4: UEFI BIOS Serial Port for Out-of-Band Management/ Windows Emergency Management Services (EMS) Console Redirection EMS Select Enabled to enable EMS console redirection support for a serial port specified by the user. The options are Disabled and Enabled. PCIe/PCI/PnP Configuration This menu provides PCIe/PCI/PnP configuration settings and information.
  • Page 66 H13DSG-O-CPU User's Manual PCIe ARI Enumeration Use this setting to Disable, Enable or Auto control the ARI Forwarding Enable for each downstream port. Relaxed Ordering Select Enable to enable Relaxed Ordering support, which will allow certain transactions to violate the strict-ordering rules of PCI bus for a transaction to be completed prior to other transactions that have already been enqueued.
  • Page 67 Chapter 4: UEFI BIOS SLOT3 PCI-E 5.0 x16 OPROM This setting enables or disables SLOT3 OPROM option. Options include Disabled and EFI. SLOT4 PCI-E 5.0 x16 OPROM This setting enables or disables SLOT4 OPROM option. Options include Disabled and EFI. USB Configuration USB Configuration USB Module Version...
  • Page 68 H13DSG-O-CPU User's Manual IPv6 PXE Support This setting allows you to Disable or Enable IPv6 PXE boot support. If disabled, IPv6 PXE boot support will not be available. IPv6 HTTP Support This setting allows you to Disable or Enable IPv4 HTTP boot support. If disabled, IPv4 HTTP boot support will not be available.
  • Page 69 Chapter 4: UEFI BIOS Policy Use this feature to select how the policy is to be configured. The options are automatic and manual. Save Changes and Exit This setting saves changes for interface ID, DAD transmit count, policy, and data in ad- vanced configuration.
  • Page 70 H13DSG-O-CPU User's Manual SATA Configuration SATA Enable Use this feature to disable or enable OnChip SATA controller. The options include Disabled, Enabled and Auto. ASMedia SATA Controller ASMedia SATA Controller Use this setting to enable or disable the ASMedia SATA controller. The options include Disabled, IDE and AHCI.
  • Page 71 Supermicro KMS Server Configuration Supermicro KMS Server IP address Enter IP4 address in dotted-decimal notation. Second Supermicro KMS Server IP address Enter IP4 address in dotted-decimal notation. Supermicro KMS TCP Port number Use this feature to enter the SMCI KMS TCP port number. The valid range is 100 - 9999.
  • Page 72 H13DSG-O-CPU User's Manual Client Password Press <Enter> to set the client identity (Password). The length is 0 - 31 characters. KMS TLS Certifiicate / Size CA Certificate For the CA certificate, use this feature to enroll factory defaults or load the KMS TLS certificates from the file.
  • Page 73 Chapter 4: UEFI BIOS Blink LEDs Blink LEDs for a duration up to 15 seconds. The default value is 0. Intel(R) Ethernet Controller X710 for 10GBASE-T- 3C:EC:EF:FC:B9:AB Firmware Image properties Option ROM version Unique NVM/EEPROM ID NVM Version NIC Configuration Link Speed Wake On LAN Use this setting to enable power on of the system via LAN.
  • Page 74 H13DSG-O-CPU User's Manual Certification GUID Use this feature to enroll to input the certification GUID. Commit Changes and Exit Use this feature to save all changes and exit TLS settings. Discard Changes and Exit Use this feature to enroll to discard all changes and exit TLS settings.

  • Page 75: Bmc

    Chapter 4: UEFI BIOS 4.4 BMC This tab allows you to configure the following IPMI settings for the system. Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status This item indicates the status of the IPMI firmware installed in your system.
  • Page 76 H13DSG-O-CPU User's Manual Erasing Settings Erase SEL Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot.
  • Page 77 Chapter 4: UEFI BIOS Station MAC Address This item displays the Station MAC address for this computer. Mac addresses are 6 two-digit hexadecimal numbers. Gateway IP Address This item displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 172.31.0.1).

  • Page 78: Event Logs

    H13DSG-O-CPU User's Manual 4.5 Event Logs This tab allows the user to configure the following event logs settings for the system. Change SMBIOS Event Log Settings This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 79 Chapter 4: UEFI BIOS When Log is Full Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full. The options are Do Nothing and Erase Immediately. SMBIOS Event Log Standard Settings Log System Boot Event Select Enabled to log system boot events.

  • Page 80: Security

    H13DSG-O-CPU User's Manual 4.6 Security This tab allows you to configure the following security settings for the system. Administrator Password Press <Enter> to create a new, or change an existing Administrator password. Note that if the Administrator Password is erased, the User Password will be cleared as well.
  • Page 81 Chapter 4: UEFI BIOS Secure Boot This option allows you specify when the Platform Key (PK) is enrolled. When enabled, the System Mode is user deployed, and the CSM function is disabled. Options include Disabled and Enabled. Secure Boot Mode Use this item to select the secure boot mode.
  • Page 82 H13DSG-O-CPU User's Manual Platform Key (PK) This feature allows the user to enter and configure a set of values to be used as platform firmware keys for the system. The sizes, keys numbers, and key sources of the platform keys will be indicated as well. Select Update to update the platform key. Select Yes to load a factory default PK or No to load from a file on an external media.
  • Page 83 Chapter 4: UEFI BIOS OsRecovery Signature (dbr) This item uploads and installs an OSRecovery Signature. Use this feature to export NVRAM content of secure boot variables to files in a root folder on a file system device. The file formats accepted are: 1) Public Key Certificate a.

  • Page 84: Boot Settings

    H13DSG-O-CPU User's Manual 4.7 Boot Settings Use this tab to configure Boot Settings: Boot Mode Select Use this item to select the type of device that the system is going to boot from. The options are Legacy, UEFI, and DUAL. The default setting is UEFI.
  • Page 85 Chapter 4: UEFI BIOS Add New Boot Option Add boot option Use this seting to specify a name for a new boot option. Path for boot option Enter the path to the boot option in the format. Boot option File Path Create Creates the newly formed boot option.

  • Page 86: Save & Exit

    H13DSG-O-CPU User's Manual 4.8 Save & Exit Select the Save & Exit tab to enter the Save & Exit BIOS Setup screen. Save Options Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer.
  • Page 87 Chapter 4: UEFI BIOS Default Options Restore Optimized Defaults To set this feature, select Restore Defaults from the Save & Exit menu and press <Enter>. These are factory settings designed for maximum system stability, but not for maximum performance. Save as User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <Enter>.

  • Page 88: Appendix A Software

    1. Create a method to access the Microsoft Windows installation ISO file. That can be a USB flash or media drive. 2. Go to the Supermicro web page for your motherboard and click on "Download the Latest Drivers and Utilities", select the proper driver, and copy it to a USB flash drive.
  • Page 89 Appendix A: Software 4. During Windows Setup, continue to the dialog where you select the drives on which to install Windows. If the disk you want to use is not listed, click on “Load driver” link at the bottom left corner. Figure A-2.
  • Page 90 A.2 Driver Installation The Supermicro website contains drivers and utilities for your system at https://www.supermicro.com/wdl/. Some of these must be installed, such as the chipset driver. After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard.
  • Page 91 Appendix A: Software A.3 SuperDoctor® 5 The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 92: Appendix B Standardized Warning Statements

    The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.
  • Page 93 Appendix B: Warning Statements Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant. ¡Advertencia! Existe peligro de explosión si la batería se reemplaza de manera incorrecta.
  • Page 94 H13DSG-O-CPU User's Manual B.2 Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、 国の関係する全ての法律 ・ 条例に従い処理する必要があります。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.
