2.4 Connect Your ADSL Cable(s)
2.4.1 Local Connection
2.4.1.1 12-Slot IP DSLAM
AIM24000 Installation 210-0000056 rev 01
2.4.1.1.1 Identify the Correct RJ21 Port(s) for Connection
Subscriber lines must be connected according to the IP DSLAM slot in
which the AIM24000 was installed. Interface module slots 1-12 run from
left to right when you are facing the front of the chassis; the corresponding
RJ21 ports are directly behind each slot on the back of the chassis (1-12,
right to left, when you are facing the back of the chassis). Each interface
module slot on Net to Net's IPD12000E has two [2] corresponding female
RJ21 connectors: the bottom row of connectors (A) provides the ADSL
connection for AIM24000 ports 1-24 and the top row of RJ21 connectors
(B) provides the ADSL connection for ports 25-48.
N OTE Net to Net's IPD12000 has only one female RJ21 connector for each interface module slot. These
connectors support ports 1-24 (only) on your AIM24000; ports 25-48 cannot be connected in an
IPD12000.

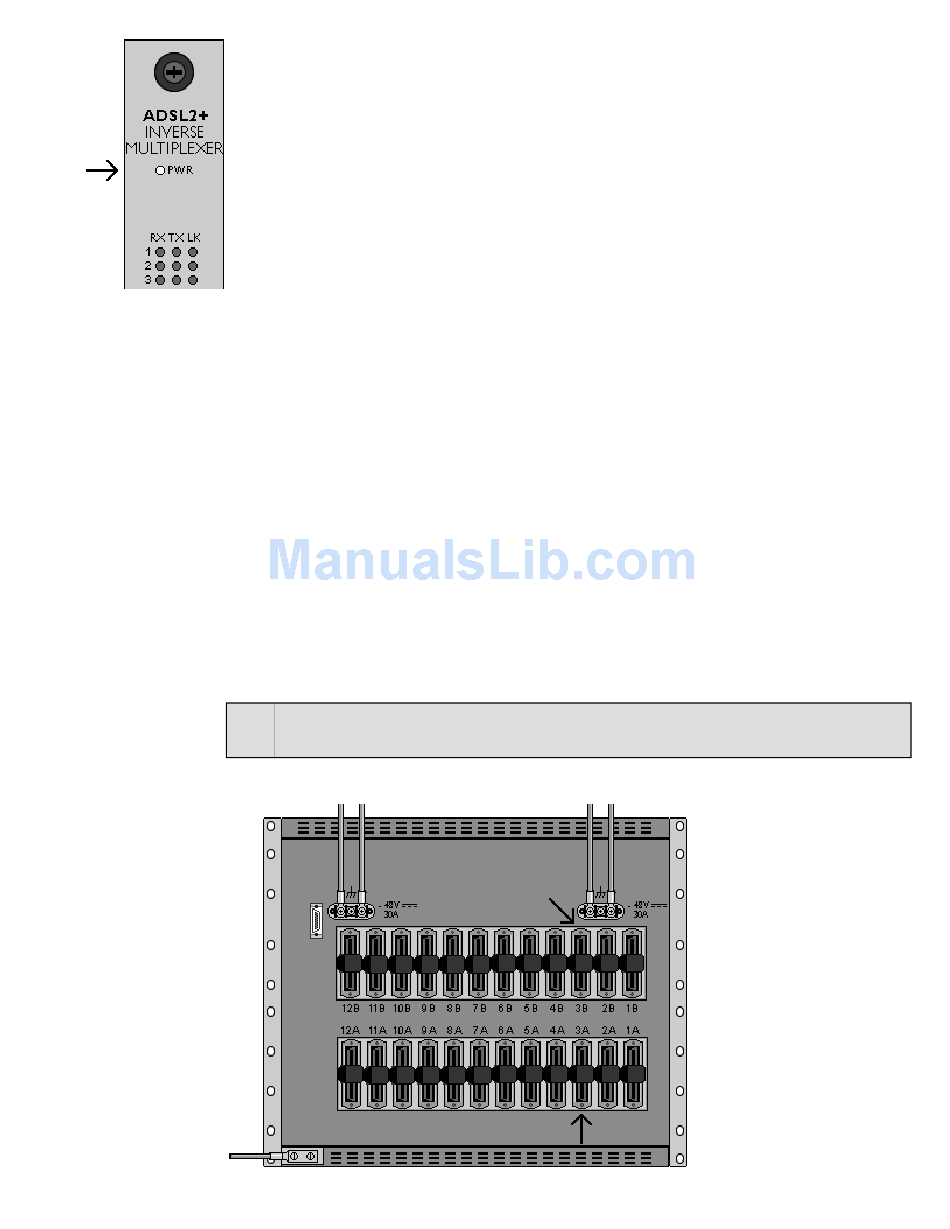

IPD12000E Rear View
In previous illustrations, the
AIM24000 was installed in Slot
3 of an IPD12000E and, as
such, the ADSL cable would
require connection to the
following RJ21 ports:
Female RJ21 Connector 3B
for AIM24000 ports 25-48
Female RJ21 Connector 3A
for AIM24000 ports 1-24
