2.2.1 12-Slot IP DSLAM
The IPD12000 and IPD12000E are fourteen [14] slot chassis; slots 1-12 are reserved
for interface modules (such as the AIM24000) and slots U1 and U2 are reserved for
management modules.
N
OTE Although the AIM24000 can be installed in both the IPD12000 and the IPD12000E, the IPD12000 has the
capability to support AIM24000 ports 1-24 only; in order to make use of all 48 ports, you must install the
AIM24000 in an IPD12000E.
2.2.1.1 Select a Slot for Installation
The AIM24000 may be placed in any slot, 1-12. Remove the blank plate from the
chosen slot by turning the fastening screws counter-clockwise with a screwdriver
and then gently sliding the blank plate out of the chassis.

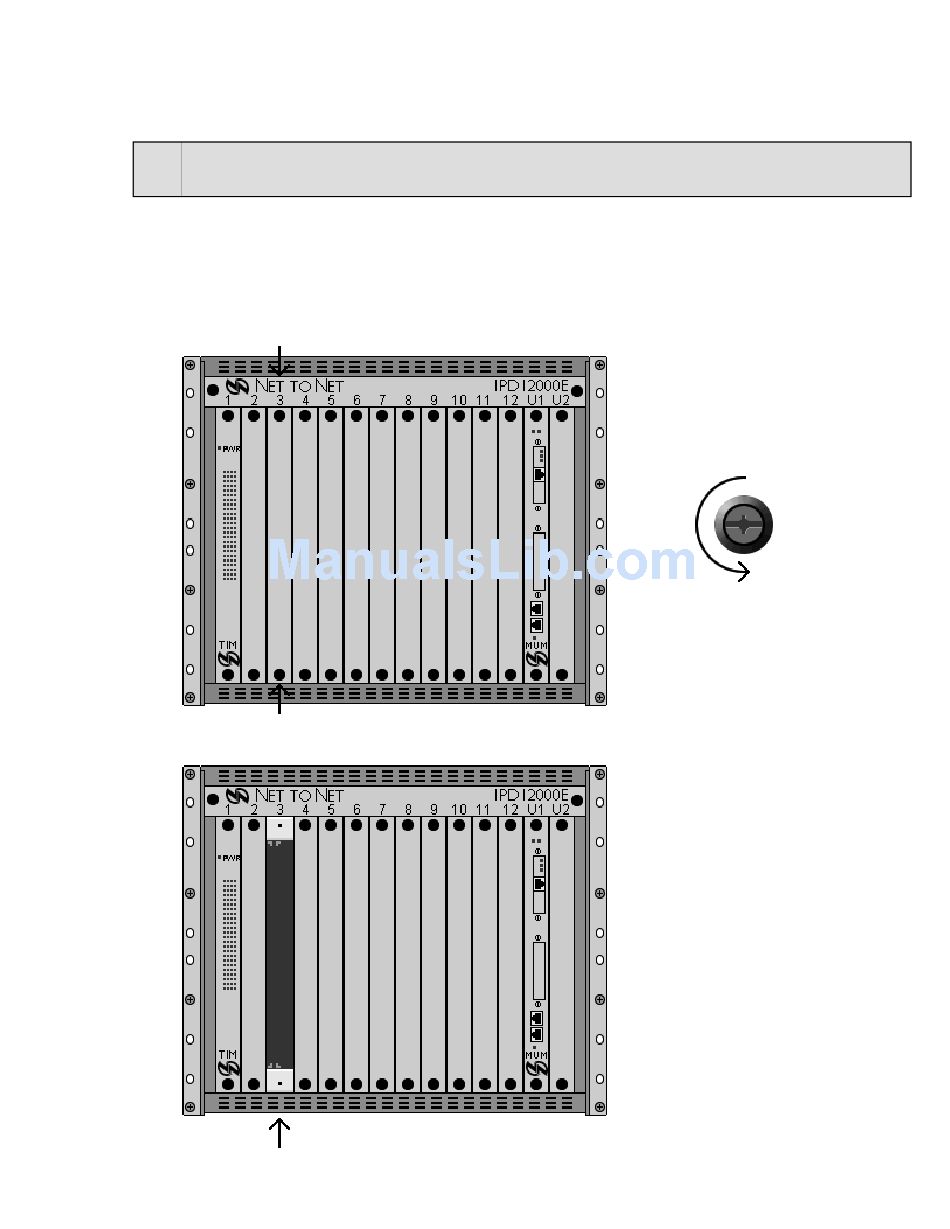

Blankplate Fastening Screws
Empty Interface Module Slot
AIM24000 Installation 210-0000056 rev 01
12-SLOT IP DSLAM
FASTENING SCREW
(turn counter-clockwise
to loosen)
Page 5 of 44
