AIM24000 Fastening Screws
2.2.2 4-Slot IP DSLAM
The IPD4000 and IPD4000E are five [5] slot chassis, slots 1-4 are reserved for
interface modules (such as the AIM24000) and slot U1 is reserved for a management
module.
N OTE Although the AIM24000 can be installed in both the IPD4000 and the IPD4000E, the IPD4000 has the capability to
support AIM24000 ports 1-24 only; in order to make use of all 48 ports, you must install the AIM24000 in an
IPD4000E.

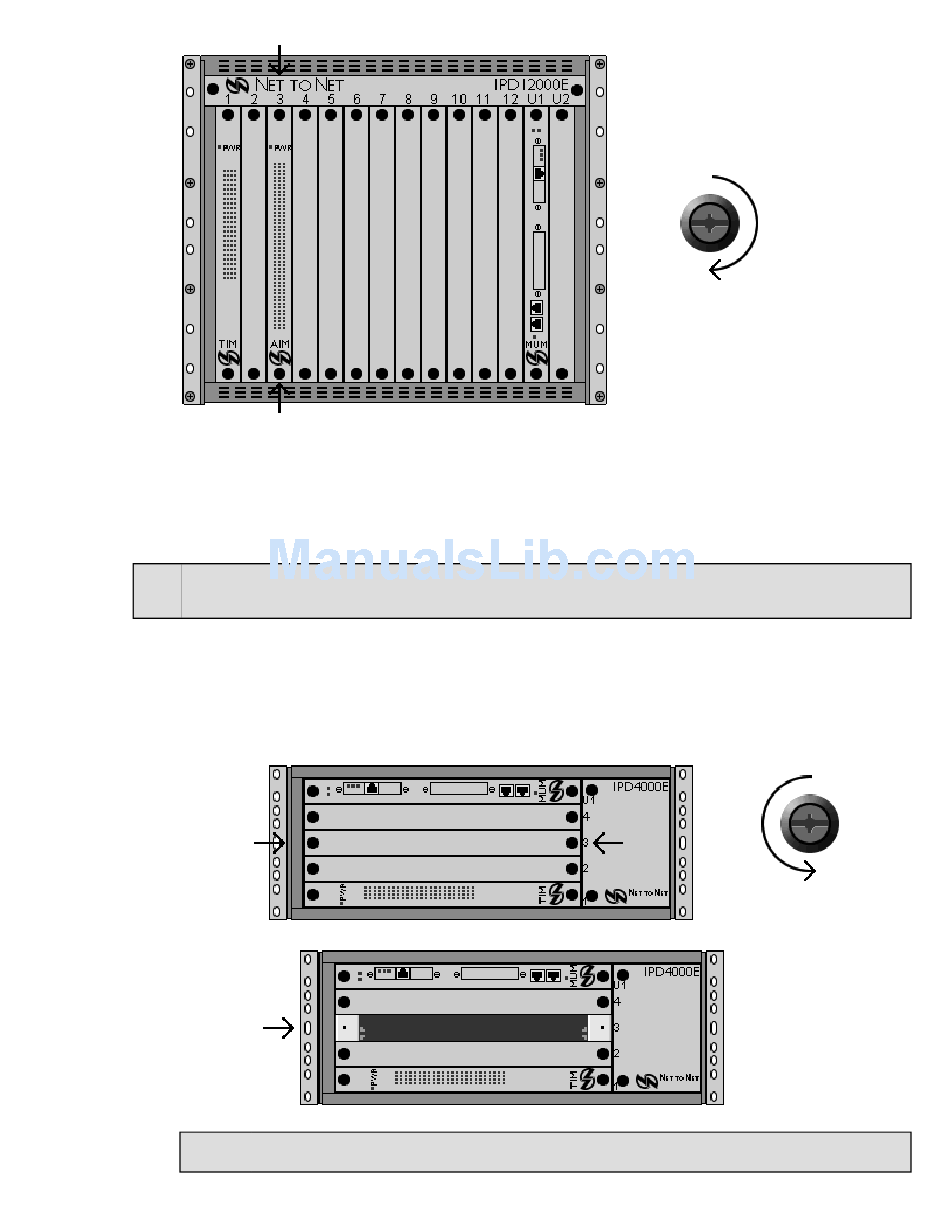

2.2.2.1 Select a Slot for Installation
The AIM24000 may be placed in any slot, 1-4. Remove the blank plate from the
chosen slot by turning the fastening screws counter-clockwise with a Phillips
screwdriver and then gently sliding the blank plate out of the chassis
Blankplate
Fastening
Screws
Empty
Interface
Module Slot
C AUTION If a blank plate is removed from slot 1-4 on Net to Net's IPD4000 or IPD4000E, it must be replaced with
AIM24000 Installation 210-0000056 rev 01
4-SLOT IP DSLAM
an interface module. DO NOT OPERATE YOUR IP DSLAM WITH AN EMPTY SLOT.
FASTENING SCREW
(turn clockwise
to tighten)
FASTENING SCREW
(turn counter-clockwise
to loosen)
