of the chassis, leaving it looped under the top side of the connector
frame.

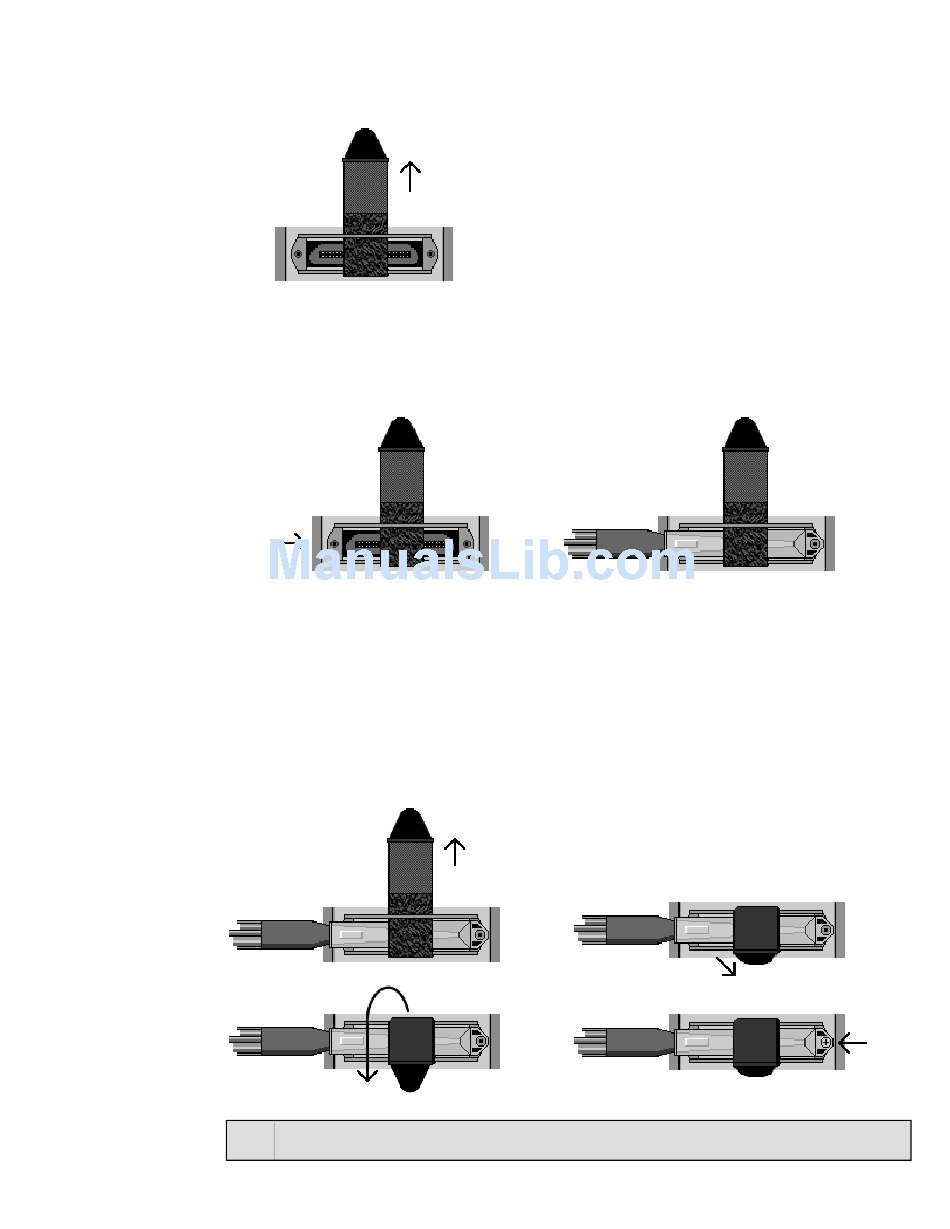

FEMALE RJ21 CONNECTOR PORT
2.4.1.2.2.2 Position the RJ21 Connector
Slide the male RJ21 connector of your ADSL cable underneath the
Velcro, from the left, and press it firmly into the female RJ21
connector port on the chassis.
2.4.1.2.3 Secure the Cable(s)
Pull the Velcro strap upward, making sure that it is snug against the
connector, then pull the strap back down, such that the Velcro layers stick
to one another across the top of the connector. Tuck the tab at the end of
the strap down between the connector frames so that it is out of the way of
other connections and then screw the right side of the RJ21 cable
connector into the jack screw on the right side of the RJ21 connector frame
on the chassis.
N OTE If you are using a 120 or 180 degree cable, both the left and right sides of the RJ21 cable connector
should be screwed to the connector frame on the chassis.
MALE RJ21 CONNECTOR OF YOUR ADSL CABLE
