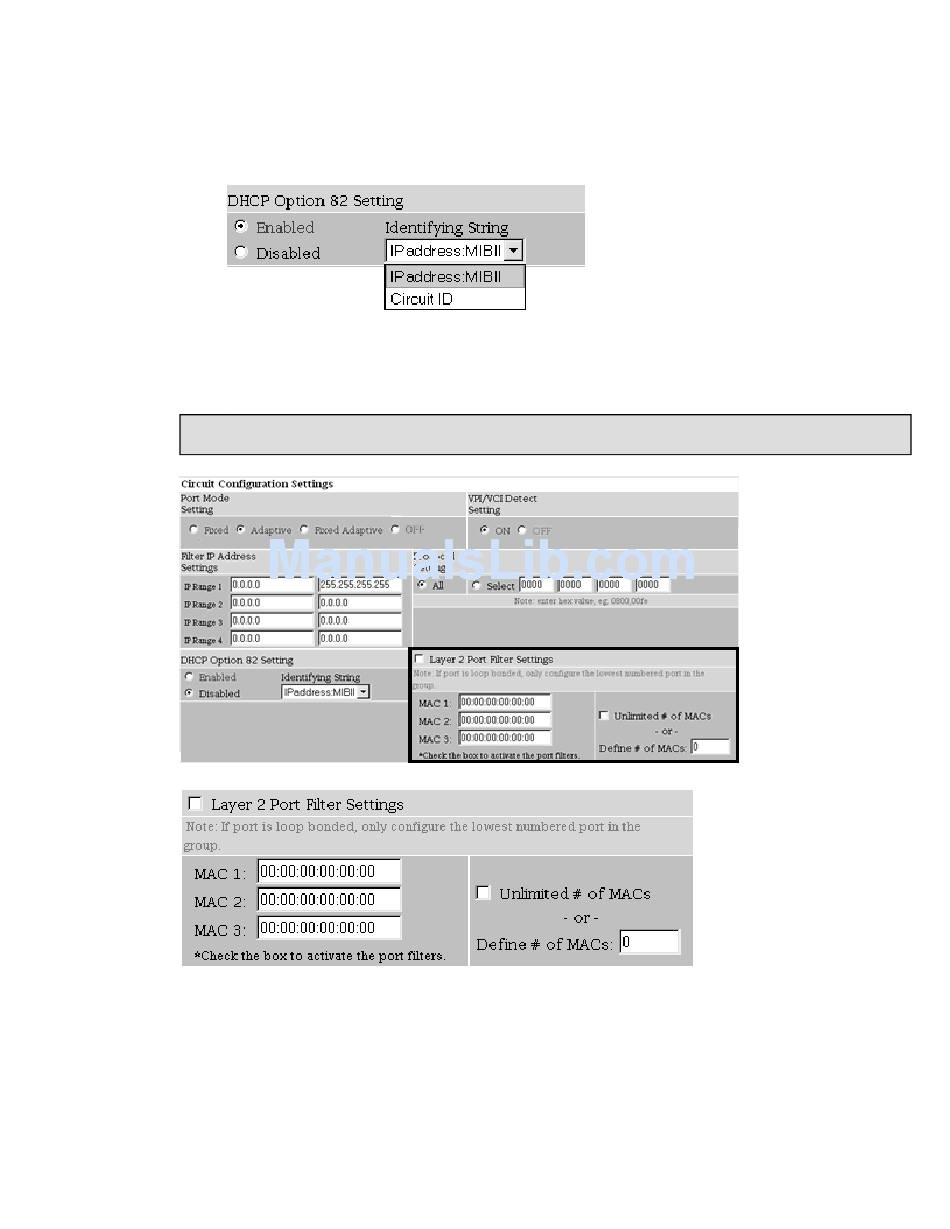

4.1.2.8 Layer 2 Port Filters
Options: Enabled or Disabled
Default: Disabled
N OTE Layer 2 Port Filters are available for configuration in NMS only; they cannot yet be configured via CLI or
AIM24000 Installation 210-0000056 rev 01
4.1.2.7.1 Enabled
Option: IPaddress:MIBII or CircuitID
Default: IPaddress:MIBII
Use the pull-down menu to select the identifying string.
SNMP.
4.1.2.8.1 Static MAC Address(es)
Proper Syntax: xx:xx:xx:xx:xx:xx
Value Range: 0x00 - 0xFF (hexadecimal value) for each double-digit
segment
Default: 00:00:00:00:00:00
Click the box to activate Layer 2 Port Filters, then specify up to three [3]
MAC addresses. Packets containing a MAC Address that has been specified
as a Layer 2 Filter for an AIM24000 port will not be allowed to enter any
