2.4.1.1.2 Connect Your ADSL Cable(s)
N OTE No configuration is necessary for the AIM24000 to operate at default settings. However, if you wish
to run your subscriber connections at settings other than the factory defaults, Net to Net
recommends configuring the AIM24000 prior to ADSL connection. Refer to Section 4.0 for further
information.

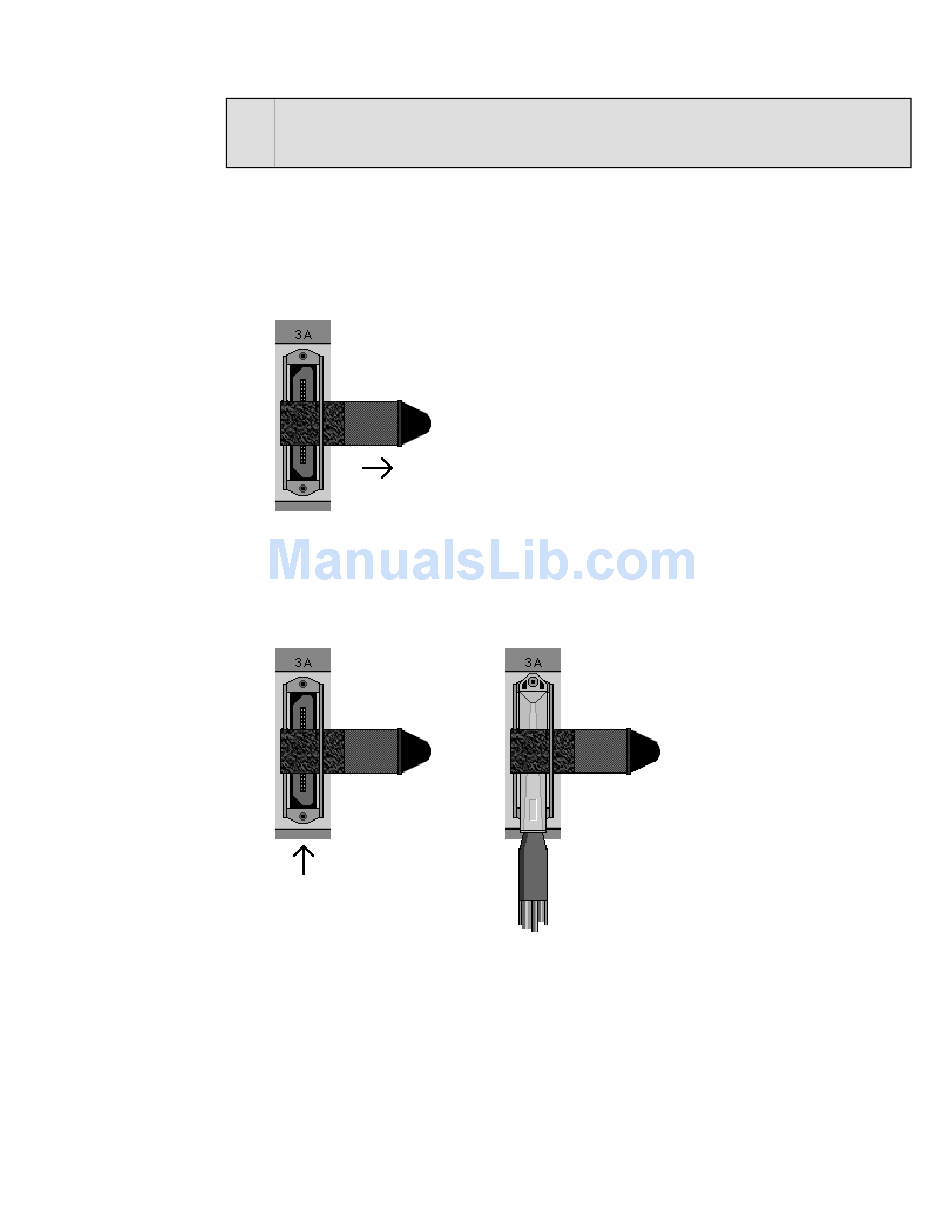

2.4.1.1.2.1 Detach the Velcro Strap
Detach the Velcro Strap from the female RJ21 connector port: lift the
Velcro tab on the left and pull the strap open towards the right,
leaving it looped under the right side of the connector frame.
FEMALE RJ21 CONNECTOR PORT
2.4.1.1.2.2 Position the RJ21 Connector
Slide the male RJ21 connector of your ADSL cable underneath the
Velcro, from the bottom, and press it firmly into the female RJ21
connector port on the chassis.
2.4.1.1.3 Secure the Cable(s)
Pull the Velcro strap to the right, making sure that it is snug against the
connector, then pull the strap back towards the left, such that the Velcro
layers stick to one another across the top of the connector. Tuck the tab at
the end of the strap down to the left of the connector frame so that it is
out of the way of other connections. Screw the top of the RJ21 cable
connector into the jack screw at the top of the RJ21 connector frame on the
chassis.
MALE RJ21 CONNECTOR OF
YOUR ADSL CABLE
