Net to Net Technologies AIM24000 User Manual page 6

C
AUTION If a blank plate is removed from slot 1-12 on Net to Net's IPD12000 or IPD12000E, it must be replaced

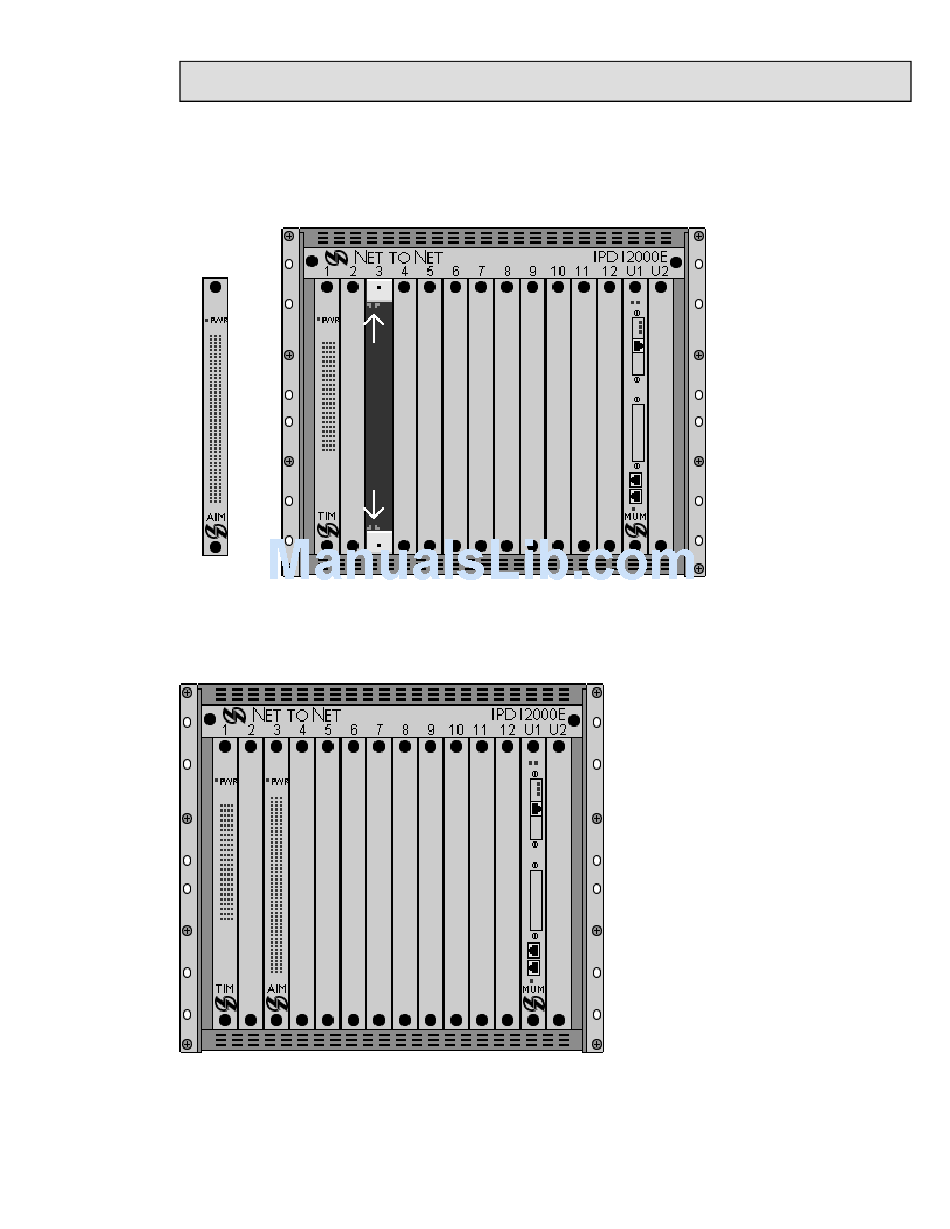

2.2.1.2 Align the AIM24000 with the Slot Module Guides
With the AIM24000 Printed Circuit Board (PCB) facing RIGHT and the AIM24000
model name, and Net to Net logo, on the LOWER edge of the faceplate, align the
upper and lower edges of the PCB with the slot module guides.
AIM24000
2.2.1.3 Slide the AIM24000 Firmly into the Chassis
DO NOT USE EXCESS FORCE.
2.2.1.4 Secure the AIM24000 in the Chassis
Tighten the fastening screws on the AIM24000 faceplate by turning them
clockwise with a screwdriver, just until snug. DO NOT OVER-TIGHTEN the
fastening screws.
AIM24000 Installation 210-0000056 rev 01
with an interface module. DO NOT OPERATE YOUR IP DSLAM WITH AN EMPTY SLOT.
Slot Module Guides
Page 6 of 44
