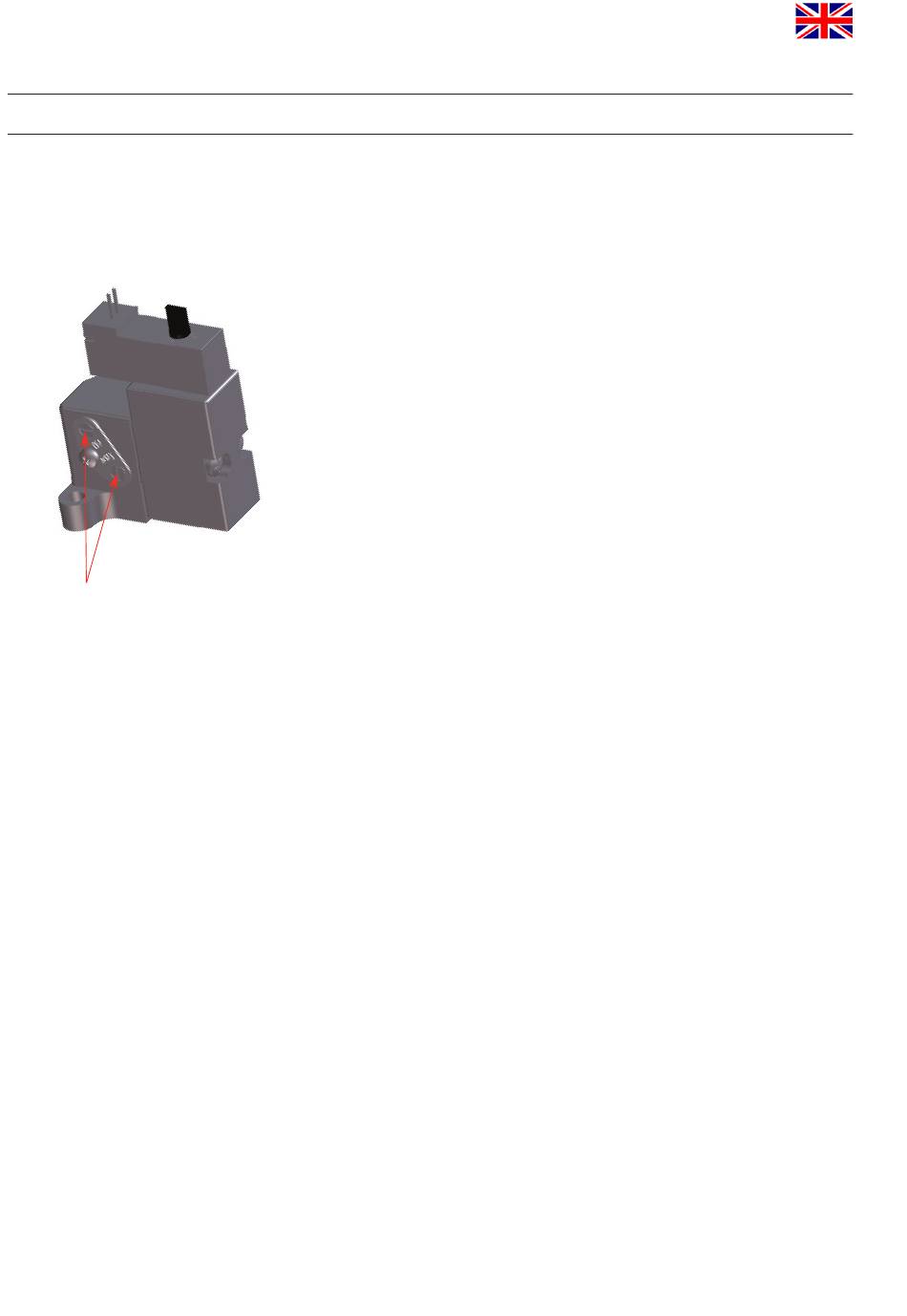

throttle screws
20
4. Mechanics and Pneumatics
4.5. Solenoid valves
In the base of the control unit max. 3 solenoid valves are installed.
The 3/2-way solenoid valves are connected with the electronic
module by moulded cables and plug connector.
control:
handle:
4.6. Throttling function
The operating speed of the valve actuator can be varied or
reduced. This may be necessary to slacken the actuation of the
valve in order to prevent pressure hammers in the piping
installation. For this purpose, the supply and exhaust air of the
first solenoid valve can be adjusted via the throttling screws
respectively allocated in the interface of the solenoid valve.
By turning the screws in anticlockwise direction, the inlet or
outlet air is throttled.
PWM signal
rotary switch at valve
