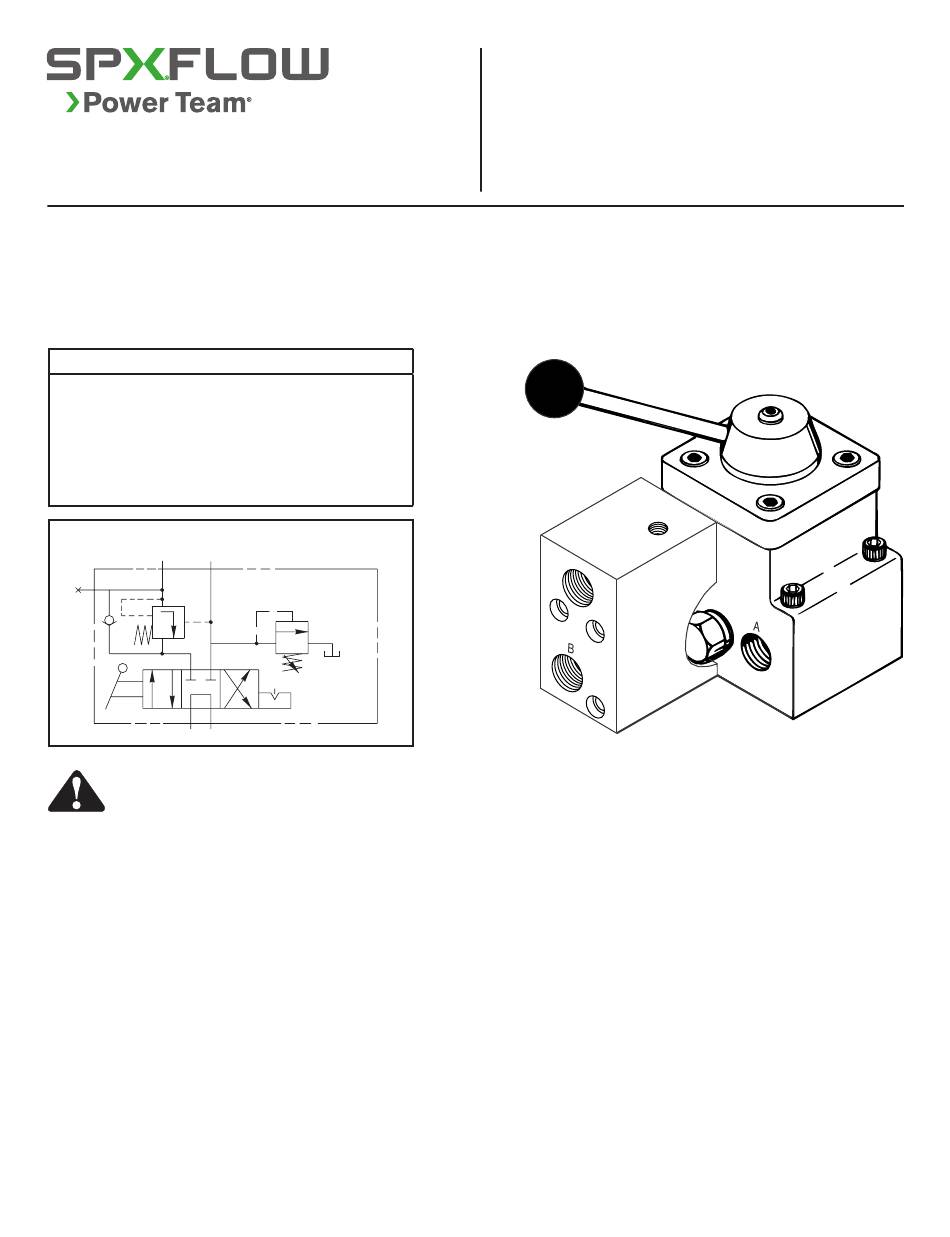

3 position, 4-way manual control valve (with “b” port pressure control & release system) max. capacity: 10,000 psi
Hide thumbs
1
2

Advertisement

Table of Contents

SPX Hydraulic Technologies
5885 11th Street
Rockford, IL 61109-3699 USA
powerteam.com

Specifications

Max. Working Pressure
"B" Port Return Pressure
Max. Flow Rating
Max. Valve Case Pressure
(Return Tank Line)
Port Sizes
Hydraulic Schematic
"B"
"A"
"P"
"T"
WARNING:
• All hose connections must be tightened with the proper tools before operating the pump. Do not
overtighten. Connections should only be tightened securely and leak-free. Overtightening can cause
premature thread failure or high pressure fittings to split at pressures lower than their rated
capacities.
• Should a hydraulic hose ever rupture, burst or need to be disconnected, immediately shut off the
pump and shift the control valve twice to release all pressure. Never attempt to grasp a leaking
pressurized hose with your hands. The force of escaping hydraulic fluid could cause serious injury.
• Do not subject the hose to potential hazard such as fire, heavy impact, sharp surfaces, or extreme
heat or cold. Do not allow the hose to kink, twist, curl, or bend so tightly that the oil flow within the
hose is blocked or reduced. Periodically inspect the hose for wear, because any of these conditions
can damage the hose and possibly result in personal injury.
• Do not use the hose to move attached equipment. Stress can damage the hose and possibly cause
personal injury.
• Hose material and coupler seals must be compatible with the hydraulic fluid used. Hoses also must
not come in contact with corrosive materials such as creosote-impregnated objects and some
paints.Consult the manufacturer before painting a hose. Never paint the couplers. Hose deterioration
due to corrosive materials can result in personal injury.
© SPX FLOW, Inc.
Tech Services: (800) 477-8326
Fax: (800) 765-8326
Order Entry: (800) 541-1418
Fax: (800) 288-7031
MODELS A, B, C, D, & F
3 POSITION, 4-WAY MANUAL
CONTROL VALVE
(With "B" Port Pressure Control & Release System)
Max. Capacity: 10,000 PSI
10,000 PSI
5,800 - 6,400 PSI
5 GPM
500 PSI
3/8 NPTF
5800
P.S.I.
6400

SAFETY PRECAUTIONS

To help prevent personal injury,
Operating Instructions for:
1
9628
Form No. 102557
Rev. 4
March 1, 2017
