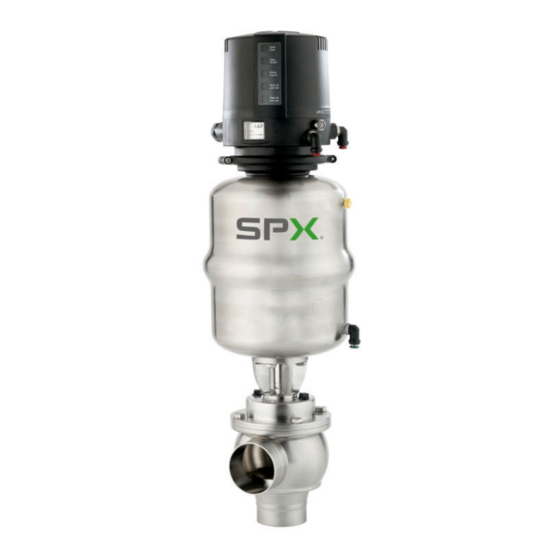

APV DELTA MS4
D I A P H R A G M VA LV E W I T H " FA N S U P P O R T "
F O R M N O . : H 3 2 3 2 7 8
R E V I S I O N : U K - 3
Scan for MS4 Valve
Maintenance Video
R E A D A N D U N D E R S TA N D T H I S M A N U A L P R I O R TO O P E R AT I N G O R S E RV I C I N G T H I S P R O D U C T.
I N S T R U C T I O N M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APV DELTA MS4 and is the answer not in the manual?

Questions and answers

Related Manuals for SPX FLOW APV DELTA MS4

Summary of Contents for SPX FLOW APV DELTA MS4

  • Page 1 I N S T R U C T I O N M A N U A L APV DELTA MS4 D I A P H R A G M VA LV E W I T H “ FA N S U P P O R T ”...
  • Page 3 Directives 2006/42/EC (superseding 89/392/EEC and 98/37/EC) and ProdSG (superseding GPSG - 9.GPSGV). For official inspections, SPX FLOW presents a technical documentation according to Appendix VII of the Machinery Directive, this documentation consisting of documents of the development and construction, description of measures taken to meet the conformity and to correspond with the basic requirements on safety and health, incl.

  • Page 5: Table Of Contents

    APV_MS4_UK-3_102018.indd Contents Page General Terms Safety Instructions Intended Use Mode of Operation Auxiliary Equipment 5–6 5.1. Valve position indication (proximity switches) 5.2. Control Unit 5.3. Tank bottom welding flange (option) 5.4. Connections Cleaning Installation 7.1. Welding Instructions Dimensions / Weights 9–11 8.1. Sinlge seat diaphragm valve 8.2.

  • Page 7: General Terms

    Safety Instructions The valve must be assembled, operated, dismantled, maintained and serviced only by competent, trained personnel. Please contact your local SPX FLOW site if necessary. Danger! The technical safety symbol draws your attention to important directions for operating safety. You will find it wherever the activities described are bearing health hazards or risks for persons or material assets.

  • Page 8: Safety Instructions

    Actuators which are no longer used and / or defective must be disposed in professional manner. Defective actuators must be returned to your SPX FLOW company for their professional disposal and free of charge for you. Contact your local SPX FLOW company.

  • Page 9: Mode Of Operation

    APV_MS4_UK-3_102018.indd Mode of Operation 4.1. General terms DELTA MS4 DELTA MS4 diaphragm valves have been designed for use in the brewing and beverage industries, in the dairy and food industries as well as for chemical and pharmaceutical applications. CU4 control unit The field of application of the DELTA MS4 valve comprises the safe shut-off of pipeline sections.

  • Page 10: Auxiliary Equipment

    APV_MS4_UK-3_102018.indd Auxiliary Equipment 5.1. Valve position indication (fig. 5.1.) fig. 5.1. For the valve position indication a proximity switch support can be installed direct at the actuator. Proximity switches to signal the limit position of the valve seat can be installed at the proximity switch holder (PSH) if required. We recommend to use one of our APV standard types: operating distance : 5mm / diameter: 11mm.

  • Page 11: Tank Bottom Welding Flange (Option

    APV_MS4_UK-3_102018.indd Auxiliary Equipment 5.3. Tank bottom welding flange for the valve series MST4 and MSTP4 tank bottom welding flange The tank bottom welded flange does not form part of the scope of (option) supply of a valve and can be ordered with the following reference / ID number: Inch ∅ C ∅ E Reference number 31B 15-01-391/42 1"...

  • Page 12: Cleaning

    APV_MS4_UK-3_102018.indd Cleaning 6.1. Cleaning recommendation Flow areas The passages of the valve are cleaned by the cleaning liquid during cleaning of the connected pipelines. Depending on the degree and constituents of soiling, the cleaning liquids, times and processes must be scheduled for the individual application.

  • Page 13: Installation

    APV_MS4_UK-3_102018.indd Installation Installation has to be undertaken in such a way that fluids can drain off the valve housing and should preferably be done in vertical position. The valve housing can be welded direct into the pipeline (completely dismantable valve insert). Attention! Observe welding instructions. 7.1. Welding Instructions Before welding of the valve, the valve insert must be dismantled from the housing.

  • Page 14: Dimensions / Weights

    APV_MS4_UK-3_102018.indd Dimensions / Weights 8.1. Single seat diaphragm valve Ø 134 Ø 134 housing variants Ø K Ø K MS 41 MS 42 MSE 41 MSE 42 MSE 43 MSE 44 Dimensions in mm Weight in kg ∅ Di ∅ K 466,5 394,5 533,5...

  • Page 15: Change-Over Diaphragm Valve

    APV_MS4_UK-3_102018.indd Dimensions / Weights 8.2. Change-over diaphragm valves MSES4 Ø 134 Ø K housing variants MES45 MES46 MES47 MES48 Dimensions in mm Weight in kg ∅ Di ∅ K 29,5 512,5 466,5 394,5 37,5 11,8 472,5 400,5 45,5 12,8 52,0 14,5 59,5 779,5...

  • Page 16: Tank Outlet Valve

    APV_MS4_UK-3_102018.indd Dimensions / Weights 8.3. Tank outlet valve MST4 housing variants MST41 Ø K MST42 Ø 134 Dimensions in mm Weight in kg ∅ Di ∅ K 38,0 466,5 43,5 11,8 472,5 51,5 12,8 62,0 14,5 69,5 21,8 83,0 27,7 Inch 1"...

  • Page 17: Technical Data

    APV_MS4_UK-3_102018.indd Technical Data 9.1. General Product-wetted parts: 1.4404 (DIN EN 10088) Other parts: 1.4301 (DIN EN 10088) Seals: standard design EPDM Option: HNBR, VMQ, FPM Diaphragm: PTFE (TFM 1705) Actuator: 1.4301 (DIN EN 10088) max. line pressure: 10 bar max. operating temperature: 135 °C EPDM, HNBR *FPM, *VMQ short-term load:...

  • Page 18: Opening And Closing Times

    APV_MS4_UK-3_102018.indd Technical Data 9.3. Closing times for single seat and change-over valves DELTA MS4 For valves equipped with a control unit DELTA CU, the opening and closing times Can be increased by adjustment of the throttling screw at the solenoid valve. closing times in sec.

  • Page 19: Valve Stroke / Opening Cross Section

    APV_MS4_UK-3_102018.indd Technical Data 9.6. Valve stroke / Opening cross section (X) Dimensions in mm Stroke 22,5 19,5 Inch 1" 1,5" 2" 2,5" 3" 4" 10. Maintenance The maintenance intervals depend on the corresponding application and are to be determined by the user himself carrying out temporary checks.

  • Page 20: Maintenance

    APV_MS4_UK-3_102018.indd 10. Maintenance Required tools: Scan for MS4 Valve - 1x wrench SW13 Maintenance Video - 1x wrench SW17 - 1x wrench SW19 - 1x wrench SW30 - 1x strap wrench - cleaning rag as well as a low solution of a suitable cleaning agent (observe safety data sheet of cleaning liquid manufacturer).

  • Page 21: Service Instructions

    APV_MS4_UK-3_102018.indd Service Instructions 11.1. Dismantling from the line system - MS4 control unit The reference numbers refer to the spare parts drawings MS4: DIN design RN 01.064.9 Inch design RN 01.064.9-1 actuator screw 3A- Inch design RN 01.064.9-2 centering washer 1.

  • Page 22: Installation Of Seals And Assembly Of Valve

    APV_MS4_UK-3_102018.indd Service Instructions 11.3. Installation of seals and assembly of valve yoke All seals must be provided with a thin layer of grease before their installation. guide bushing 1. Insert the guide bush (11) and o-ring (13) in the yoke (9). Insert the o-ring (15) in the groove of the yoke.

  • Page 23: Installation Of Ms4 Valve

    APV_MS4_UK-3_102018.indd Service Instructions 11.4. Installation of MS4 valve 1. Design with control unit: Fasten the adapter on the actuator. Place the control unit (26) on the adapter (27) and fasten it with the ring. Design with valve position indication: Fasten the housing of the valve position indication (24). 2.

  • Page 24: Service Instructions - Actuator

    APV_MS4_UK-3_102018.indd 12. Service Instructions - Actuator 12.1. Maintenance of Actuator seal screw 1. Remove the air hoses from the actuator. piston rod v-seal 2. Remove the inner hexagon screws from the adapter of the control unit. - Remove the adapter. o-ring 12.2.

  • Page 25: Installation Of Seat Seal For Change-Over Valve

    APV_MS4_UK-3_102018.indd 13. Service Instructions - Assembly Tool Attention: By means of the assembly tool the seat seal of single seat valves can be installed, only. The assembly tool consists of: thrust ring thrust ring ring with venting plug housing threaded bolt ring 13.1.
  • Page 26 APV_MS4_UK-3_102018.indd 14. Service Instructions - Change-over valves Change-over valves DELTA MSES 4 Change-over valve The item numbers refer to the spare parts drawings DELTA MSES4 MSES4: DN design : RN 01.064.12 (NC design) Inch design: RN 01.064.12-1 14.1. Dismantling from the line system 1.

  • Page 27: Installation Of Seals And Assembly Of Valve

    APV_MS4_UK-3_102018.indd 14. Service Instructions - Change-over valves 6. Remove the housing screws (17). yoke 7. Lift the actuator (23) with yoke (12) to the top and out of the housing. guide bushing 8. Remove the middle valve shaft (6), diaphragm (8), fan (9), diaphragm support (10) and upper valve shaft (7).
  • Page 28 APV_MS4_UK-3_102018.indd 14. Service Instructions - Change-over valves 9. Design NC: Control the actuator with air. Fasten the actuator with the hex. screws (13) on the yoke. Shut off pneumatic air. 10. Insert the lower valve shaft (3) with guide rod (11) from the bottom into the housing, push it up and keep hold of it.

  • Page 29: Trouble Shooting

    APV_MS4_UK-3_102018.indd 15. Trouble Shooting Failure Remedy Valve closed and pressure in upper housing Valve is untight. Replace seat seal (2). Check line pressure (max. 10bar). Leakage at the leakage bore Check tightening torque of lock nut. in the area of the valve yoke Replace diaphragm (5) and o-ring (16).

  • Page 31: Spare Parts Lists

    10.06.16 Name: Trytko Trytko Trytko Trytko Geprüft: Schulz Schulz Ersatzteilliste: spare parts list SPX FLOW Germany Membranventil fan support MS4, MSE4, MST4 FS-CU und VSM Blatt Diaphragm valve fan support MS4, MSE4, MST4 FS-CU and PSH RN 01.064.9 DN 25-100...
  • Page 39 Trytko Trytko Trytko Trytko Geprüft: Schulz Schulz Ersatzteilliste: spare parts list SPX FLOW Germany Membranventil fan support MS4, MSE4, MST4 FS-CU und VSM Blatt Diaphragm valve fan support MS4, MSE4, MST4 FS-CU and PSH RN 01.064.9-1 1-4 zoll / inch...
  • Page 45 10.06.16 Name: Trytko Trytko Trytko Trytko Geprüft: Schulz Schulz Ersatzteilliste: spare parts list SPX FLOW Germany Membranventil fan support MSP4, MSEP4, MSTP4 FS-CU und VSM Blatt Diaphragm valve fan support MSP4, MSEP, MSTP4 FS-CU and PSH RN 01.064.10 DN 25-100...
  • Page 53 Trytko Trytko Trytko Trytko Geprüft: Schulz Schulz Ersatzteilliste: spare parts list SPX FLOW Germany Membranventil fan support MSP4, MSEP4, MSTP4 FS-CU und VSM Blatt Diaphragm valve fan support MSP4, MSEP, MSTP4 FS-CU and PSH RN 01.064.10-1 1-4 zoll / inch...
  • Page 61 18.09.14 10.06.16 Name: Trytko Trytko Trytko Trytko Trytko Geprüft: Schulz Schulz Schulz Schulz Ersatzteilliste: spare parts list SPX FLOW Germany Membranventil fan support MSES4 FS-CU und VSM Blatt Diaphragm valve fan support MSES4 FS-CU and PSH RN 01.064.12 DN 25-100...
  • Page 67 Trytko Trytko Trytko Trytko Trytko C.Keil Geprüft: Schulz Schulz Schulz Schulz Ersatzteilliste: spare parts list SPX FLOW Germany Membranventil fan support MSES4 FS-CU und VSM Blatt Diaphragm valve fan support MSES4 FS-CU and PSH RN 01.064.12-1 1-4 zoll / inch...
  • Page 75 Trytko Trytko Trytko Trytko Trytko C.Keil Geprüft: Schulz Schulz Ersatzteilliste: spare parts list SPX FLOW Germany Membranventil fan support MS4, MSE4 FS-CU und VSM Blatt Diaphragm valve fan support MS4, MSE4 FS-CU and PSH RN 01.064.9-2 1-4 zoll / inch...
  • Page 82 P: (+48) 52 566 76 00 F: (+49) (0) 2301-9186-300 F: (+48) 52 525 99 09 SPX FLOW reserves the right to incorporate the latest design and material changes without notice or obligation. Scan for MS4 Valve Maintenance Video Design features, materials of construction and dimensional data, as described in this manual, are provided for your information only and should not be relied upon unless confirmed in writing.
