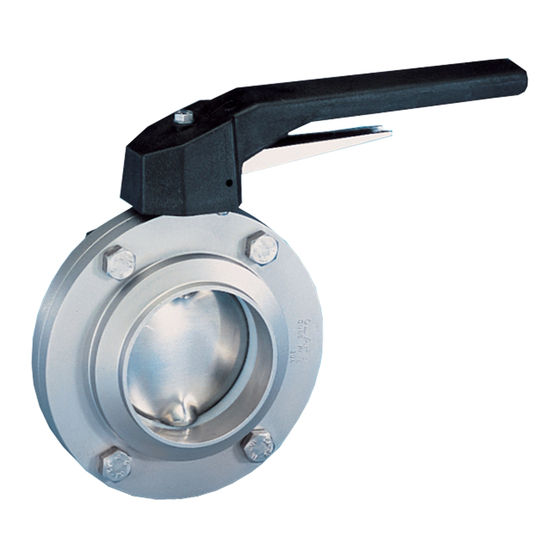

APV DELTA SV1
B U T T E R F LY VA LV E
F O R M N O . : H 1 7 0 7 2 6
R E V I S I O N : U K - 8
Scan for SV1/SVS1F Valve
Maintenance Video
R E A D A N D U N D E R S TA N D T H I S M A N U A L P R I O R TO O P E R AT I N G O R S E RV I C I N G T H I S P R O D U C T.
I N S T R U C T I O N M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APV DELTA SV1 and is the answer not in the manual?

Questions and answers

Related Manuals for SPX FLOW APV DELTA SV1

Summary of Contents for SPX FLOW APV DELTA SV1

  • Page 1 I N S T R U C T I O N M A N U A L APV DELTA SV1 B U T T E R F LY VA LV E F O R M N O . : H 1 7 0 7 2 6 R E V I S I O N : U K - 8 R E A D A N D U N D E R S TA N D T H I S M A N U A L P R I O R TO O P E R AT I N G O R S E RV I C I N G T H I S P R O D U C T.
  • Page 3 Directives 2006/42/EC (superseding 89/392/EEC and 98/37/EC) and ProdSG (superseding GPSG - 9.GPSGV). For official inspections, SPX FLOW presents a technical documentation according to Appendix VII of the Machinery Directive, this documentation consisting of documents of the development and construction, description of measures taken to meet the conformity and to correspond with the basic requirements on safety and health, incl.

  • Page 5: Table Of Contents

    APV_SV1_UK-8_082017.qxp Table of Contents Page General Terms Safety Instructions 2 - 3 Intended Use Mode of Operation 4.1. General Terms Auxiliary Equipment 5 - 7 5.1. Valve position indication - actuated valve 5.2. Valve position indication - manually operated valve 5.3.

  • Page 7: General Terms

    Safety Instructions The valve must only be assembled, disassembled and reassembled by persons who have been trained in APV valves or by SPX FLOW service team members. If necessary, contact your local SPX FLOW representative. DANGER! - The technical safety symbol draws your attention to important directions for operating safety.

  • Page 8: Safety Instructions

    Defective actuators must be returned to your SPX FLOW representative for their professional disposal and free of charge for you. Please address to your local SPX FLOW representative. Intended Use The intended use as field of application of the butterfly valve is the shut-off of pipeline sections.

  • Page 9: Mode Of Operation

    APV_SV1_UK-8_082017.qxp Mode of Operation 4.1. General Terms Use of high-quality stainless steel and seal materials to the specified requirements, the butterfly valve range DELTA SV1 is applicable in the food and beverage industries as well as in the chemical and pharmaceuticl industries. Valves of the series DELTA SV1 can either be operated manually or remote controlled via a pneumatic actuator.

  • Page 10: Auxiliary Equipment

    APV_SV1_UK-8_082017.qxp Auxiliary Equipment 5.1. Valve position indication - valve with pneumatic actuator Proximity switches to signal the limit position of the valve disc can be installed in the yoke area if required. We recommend to use our APV standard proximity switches. Type: three-wire proximity switch (ref.-No.

  • Page 11: Control Unit

    APV_SV1_UK-8_082017.qxp Auxiliary Equipment 5.4. Control unit (CU, fig. 5.4.) Fig. 5.4. Units with feedback switch and magnet valve for the pneumatic control of the valve for assembly on the actuator are also available in fieldbus technology. control unit The assembly of a control unit on a pneumatic actuator is possible.

  • Page 12: Turning Actuator For Control Unit

    APV_SV1_UK-8_082017.qxp Auxiliary Equipment 5.5.1. Adapter for control unit (fig. 5.5.1.) CU41-T-Direct Connect, CU41-T-AS-i extended Fig. 5.5.1. The following adapters are required to install the control unit on the SV1 valve: Spare parts for CU4 T-adapter reference No. Item Pcs. Designation ID - No.

  • Page 13: Cleaning

    APV_SV1_UK-8_082017.qxp Cleaning 6.1. Cleaning recommendation The valve passage is cleaned by the cleaning liquids during cleaning of the connected pipelines. Depending on the degree and constituents of soiling, the cleaning liquids, times and processes must be scheduled for the individual application.

  • Page 14: Welding Instructions

    APV_SV1_UK-8_082017.qxp Installation / Connections 7.2. Welding Instructions - Welding may only be carried out by certified welders (DIN EN ISO 9606-1). (seam quality DIN EN ISO 5817) - The welding of the housing halves must be effected in such a way that deformation strain cannot be transfered to the housing halves.
  • Page 15 APV_SV1_UK-8_082017.qxp Dimensions / Weights SV1 with CU41 control unit SV1 with turning actuator Ø C Ø C Weights in kg Dimensions in mm butterfly valve butterfly valve with with turning actuator Ø C Ø D Ø E turning actuator and control unit 271,5 451,5 52,4...

  • Page 16: Dimensions / Weights

    APV_SV1_UK-8_082017.qxp Dimensions / Weights SV1 with manual actuation Dimensions in mm Ø D Ø E Weights in kg 96,5 101,5 52,4 52,4 117,5 52,4 127,5 Inch 1” 22,6 1,5” 96,5 34,8 2” 101,5 47,8 2,5” 52,4 60,3 63,3 3” 52,4 113,5 72,9 76,1...

  • Page 17: Technical Data

    APV_SV1_UK-8_082017.qxp Technical Data 9.1. General data max. line pressure : 10bar elbow union - G1/8" slewable : 135 o C EPDM, HNBR max. operating temperature tightening torque 2 Nm * VMQ, * FPM : 140 o C EPDM, HNBR short-term load * VMQ, * FPM * (no steam) vacuum tightness...

  • Page 18: Opening / Closing Times

    APV_SV1_UK-8_082017.qxp Technical Data 9.4. Opening and closing times The actuating times depend on the length of the air line between the magnet valve to the air control and the actuator. For air lines with a length of up to 1 m, the opening time for butterfly valves DN 25/1”...

  • Page 19: Materials

    APV_SV1_UK-8_082017.qxp Materials - Valve disc 1.4571/1.4404 (DIN EN 10088) - Housing flange DN 25 - 100 1.4301/1.4404 (DIN EN 10088) 1” - 4” 1.4404 (DIN EN 10088) - SV seal standard: EPDM option: HNBR, VMQ, FPM - bearing bush polyamide PA 12 - handle polyamide PA 6.6 Actuator...

  • Page 20: Maintenance

    APV_SV1_UK-8_082017.qxp Maintenance The maintenance intervals depend on the application of the valve Scan for SV1/SVS1F Valve and should be determined by the operator carrying out regular Maintenance Video checks of the valve. - There are a few wear parts on SV1 butterfly valves, principally the SV seal and bearings.

  • Page 21: Service Instructions

    APV_SV1_UK-8_082017.qxp Service Instructions 12.1. Dismantling from the line system Attention! The valve can only be dismantled via an additional separate connection in the continuing pipeline. Danger! 1. Shut off connecting lines, let down line pressure and drain pipeline if possible. 2.

  • Page 22: 12.4. Replacement Of Seals

    DELTA SV1 - DE - 7.qxp 16.09.2010 Service Instructions 12.4. Replacement of seals 1. Turn the disc (5) in the seal ring (3) into open position. 2. Remove bearings (2). 3. By a slight pressing, the seal ring (3) is deformed in its longitudinal axis, and, thus, can be pulled off via the short bearing spindle.

  • Page 23: Service Instructions

    APV_SV1_UK-8_082017.qxp Service Instructions 12.6. Installation of the actuating device 1. Observe the steps mentioned in 12.2. in reverse order. 2. With manual butterfly valves, the disc (5) and the handle (8) are in a line. 3. Attach the position indicator (11) to align with the valve disc onto the square of the actuating spindle of the disc (5).

  • Page 24: Spare Parts Lists

    APV_SV1_UK-8_082017.qxp Spare Parts Lists The reference numbers of the spare parts for the different valve designs and sizes are included in the attached spare parts drawings with corresponding lists. Please indicate the following data to place an order for spare parts: number of parts required reference number designation.

  • Page 25: Dn25 - 100, 1

    Datum: 30.01.14 30.10.14 06.07.16 Name: Trytko Trytko Trytko Geprüft: Ersatzteilliste: spare parts list SPX FLOW Scheibenventil SV1-FZ-CU Germany Blatt Butterfly valve SV1-A-CU RN01.037-14 DN25-100 1-4 inch 1+2S...
  • Page 31 Datum: 31.01.14 06.07.16 Name: Trytko Trytko Geprüft: Ersatzteilliste: spare parts list SPX FLOW Scheibenventil SV1 - Handbetätigung Germany Blatt Butterfly valve SV1- handle RN01.037.5-9 DN25-100 ; 1-4 inch 1+2S...

  • Page 44: Butterfly Valve

    P: (+48) 52 566 76 00 F: (+49) (0) 2301-9186-300 F: (+48) 52 525 99 09 SPX FLOW reserves the right to incorporate the latest design and material changes without notice or obligation. Scan for SV1/SVS1F Valve Maintenance Video Design features, materials of construction and dimensional data, as described in this manual, are provided for your information only and should not be relied upon unless confirmed in writing.
