4. Mechanics and Pneumatics
4.1. Air connections seat valves and double seat mix proof valves

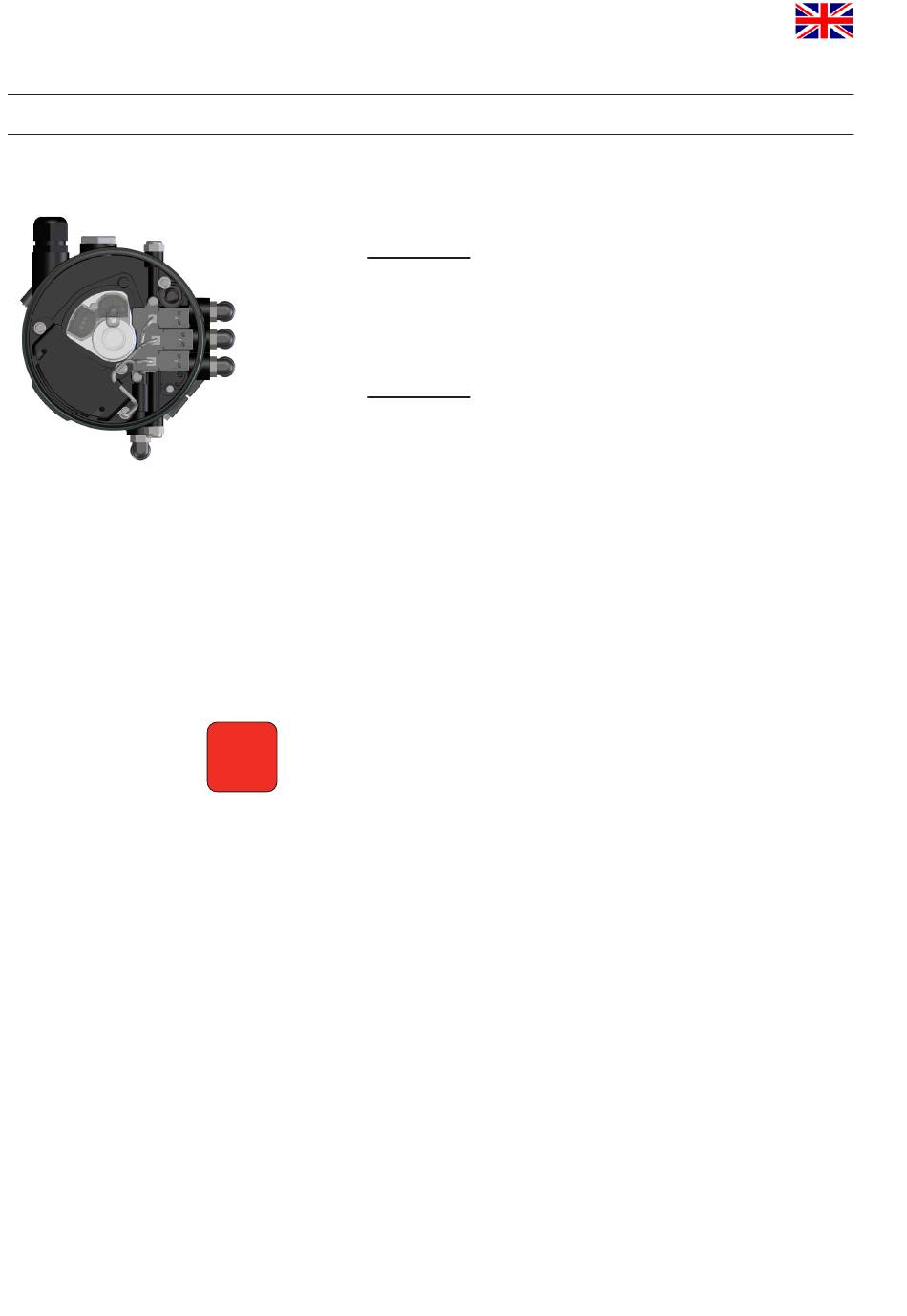

4.1.1. Function
CU41plus-D4
design for D4 double seat mix proof valves
without seat lift function
Y3
P air supply with integrated particle filter
Y1
control air connection for main actuator
Y2
A1
exhaust air, with exhaust silencer
Y1
CU43plus-D4
design for D4 SL double seat mix proof valves with seat lift
function
P
air supply with integrated particle filter
Y1 control air connection for main actuator
Y2 pneumatic air connection for seat lift actuator of upper seat lifting
Y3 pneumatic air connection for seat lift actuator of lower seat lifting
A1/A2 exhaust air, with exhaust silencer
4.2. Pressure relief valve
The base of the control unit is equipped with a pressure relief
valve which prevents an inadmissible pressure build-up in the
inner control unit.
If required, the pressure relief valve vents into the clearance
between the base and the adapter of the control unit.
The pressure relief valve must not be mechanically blocked
under any circumstances.
