The 2220 Handset

The 2220 Handset is a control point for the Envoy Transceiver. The user
interface provides an icon-based menu structure for easy setup and
operation of the transceiver.

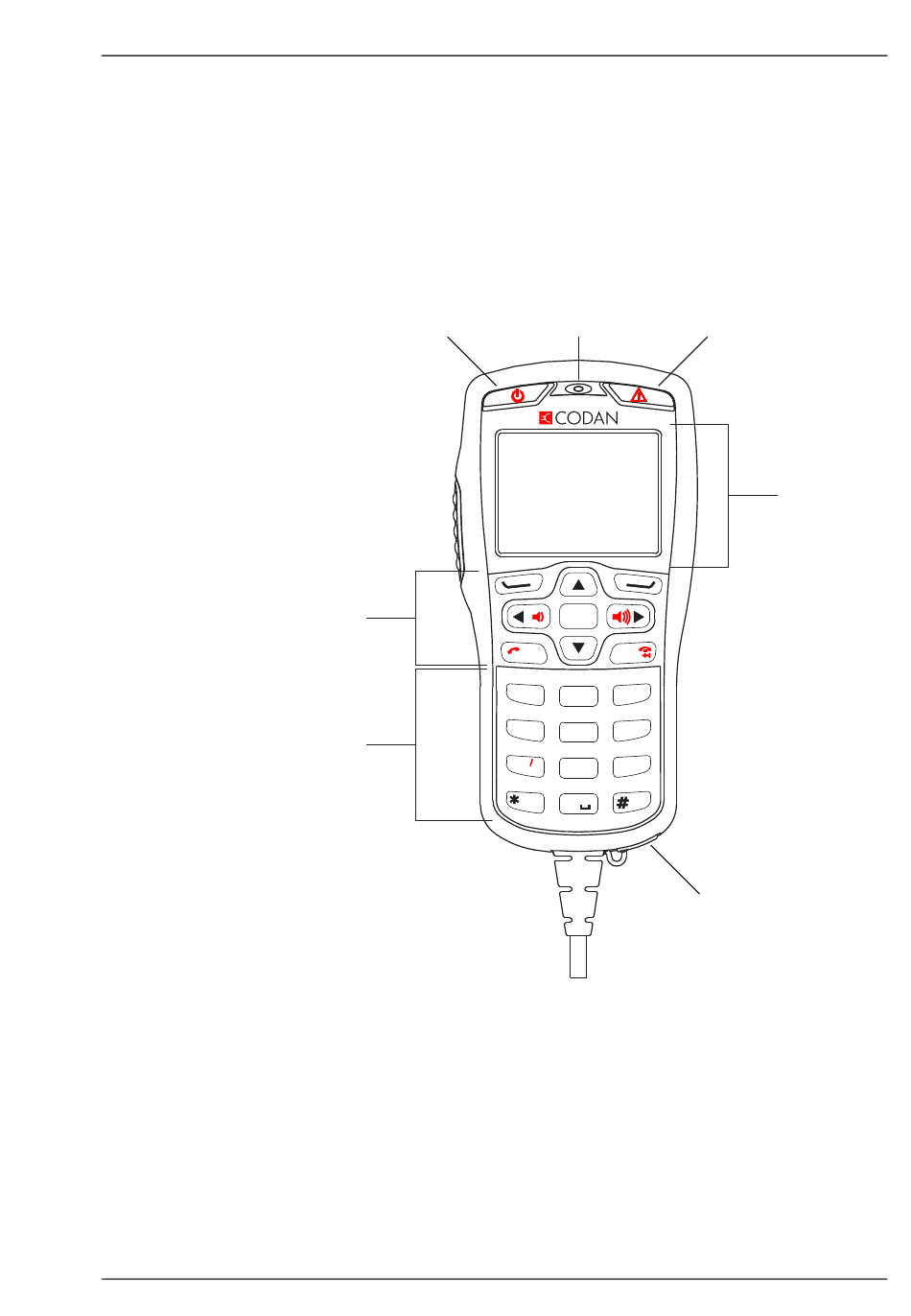

Figure 1:
navigation and
software keys
numeric keys
The 2220 Handset is a hand-held device that has a microphone, a PTT
button, a screen, navigation keys, and numeric keys. The keypad
enables you to control and configure the transceiver system via the user
interface. The handset and an external speaker connect to the RFU via
a special interface cable.
