Industrial Electronic Devices
SET COMMUNICATION:
This section defines the fundamental communication parameter of two Buses, PROFIBUS and DeviceNet.
By Pressing the
"Set
Communication" button from the main window for SW67574 (Fig. 2) the window
"SET COMMUNICATION" appears (Fig. 3).
The window is divided in two sections, one for the PROFIBUS and the other for the DeviceNet.
The means of the fields for "PROFIBUS" are:
In the field
"ID
Dev." the address for the PROFIBUS side is defined;
In the field
"N Byte
IN" the number of byte from the slave PROFIBUS to the gateway is defined
(at maximum it is possible to use 244 byte);
In the field
"N Byte
OUT" the number of byte from the gateway to the slave PROFIBUS is defined
(at maximum it is possible to use 244 byte).
The means of the fields for "DeviceNet" are:
In the field
"ID
Dev." the address of the DeviceNet is defined;
In the field
"Baud
rate" the velocity of the DeviceNet bus is defined.
GSD FILE:
By pressing the
"GSD
File" button it is possible to save the GSD file for the PROFIBUS side.
With this feature you can save the configuration of the gateway of the PROFIBUS side.
Note:
When you import the .gsd file on your Master PROFIBUS you have to add all the modules that are present inside it.
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual DeviceNet Slave / PROFIBUS Slave
Document code: MN67574_ENG
Revision 1.001

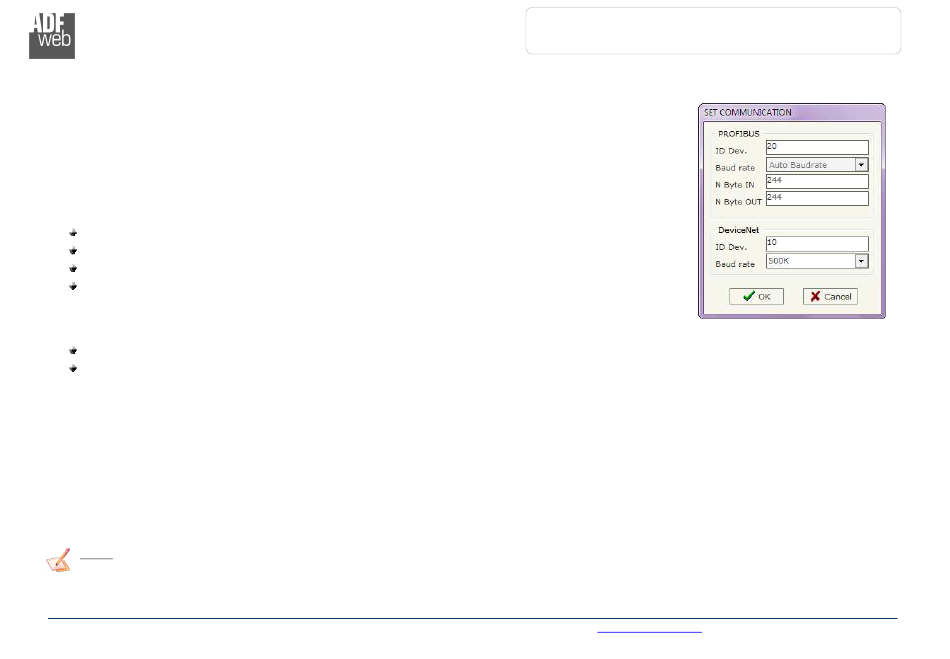

Figure 3: "Set Communication"
window
INFO:
www.adfweb.com
Page 13 of 18
Phone +39.0438.30.91.31
