USE OF COMPOSITOR SW67574:

To configure the Converter, use the available software that runs with
Windows, called SW67574.
www.adfweb.com and its operation is described in this document.
(This manual is referenced to the last version of the software present
on our web site). The software works with MSWindows (MS 2000, XP,
Vista, Seven, 8; 32/64bit).
When launching the SW67574 the right window appears (Fig. 2).

NEW PROJECT / OPEN PROJECT:

The "New Project" button creates the folder which contains the entire device configuration.
ADFweb.com Srl – IT31010 – Mareno – Treviso
It is downloadable on the
A device configuration can also be imported or exported:
To clone the configurations of a programmable "DeviceNet Slave / PROFIBUS Slave –
Converter" in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the button
"Open Project".
User Manual DeviceNet Slave / PROFIBUS Slave
Document code: MN67574_ENG
site

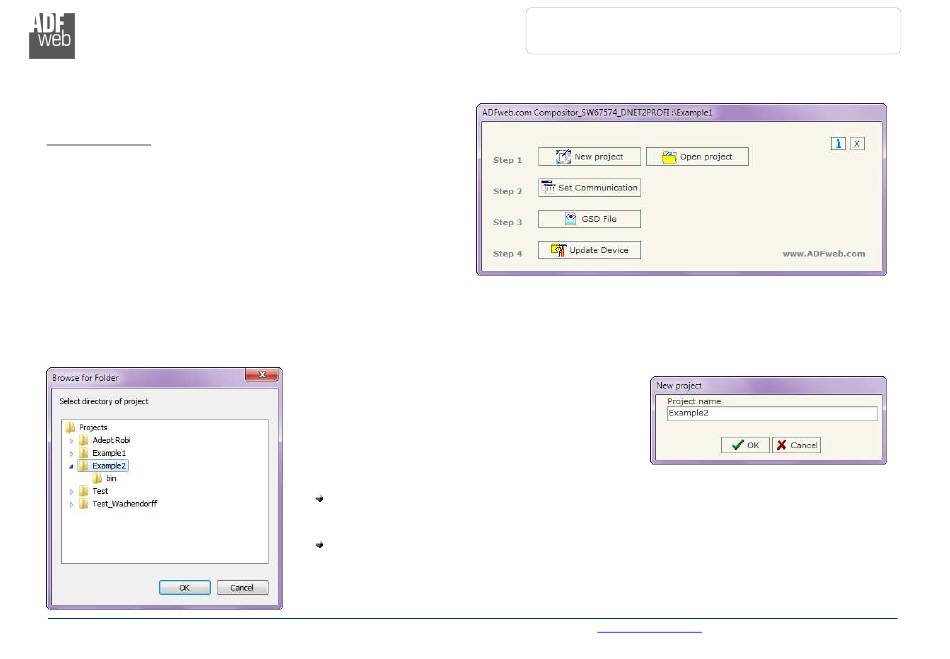

Figure 2: Main window for SW67574
