MECHANICAL DIMENSIONS:
ORDER CODE:
Order Code: HD67574-A1 -
ACCESSORIES:
Order Code: AC34107
-
Order Code: AC34114
-
Order Code: AC34001
-
Order Code: AC34002
-
ADFweb.com Srl – IT31010 – Mareno – Treviso

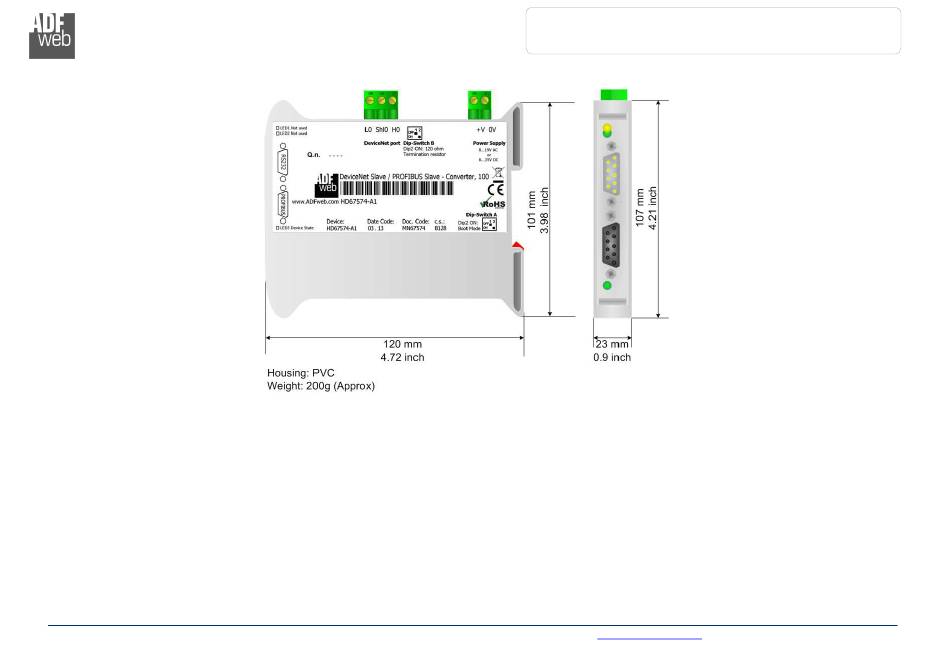

Figure 7: Mechanical dimensions scheme
DeviceNet Slave / PROFIBUS Slave - Converter
Null Modem Cable Fem/Fem DSub 9 Pin 1,5 m
Null Modem Cable Fem/Fem DSub 9 Pin 5 m
Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V AC
Rail DIN - Power Supply 110V AC 50/60Hz – 12 V AC
User Manual DeviceNet Slave / PROFIBUS Slave
Document code: MN67574_ENG
Revision 1.001
