Industrial Electronic Devices
User Manual
Revision 1.002
English

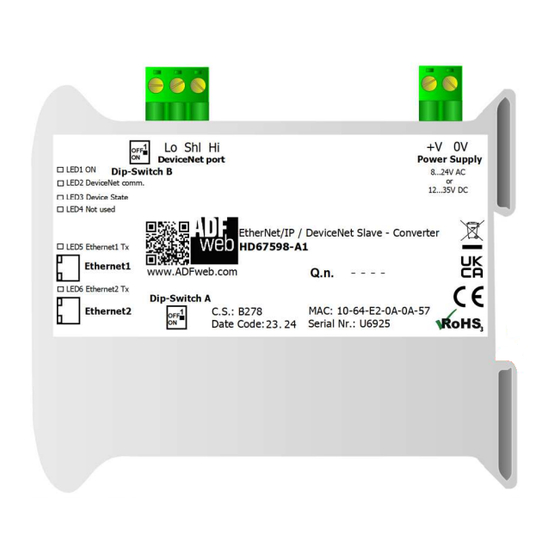

EtherNet/IP / DeviceNet Slave -
Converter
(Order Code: HD67598-A1)
For Website information:
www.adfweb.com?Product=HD67598
For Price information:
www.adfweb.com?Price=HD67598-A1
Benefits and Main Features:
Electrical isolation
Two EtherNet/IP ports
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual EtherNet/IP / DeviceNet Slave - Converter
Document code: MN67598_ENG
Revision 1.002
For others Ethernet/IP products see also the following link:
Converter EtherNet/IP to
www.adfweb.com?Product=HD67077
www.adfweb.com?Product=HD67091
www.adfweb.com?Product=HD67159
www.adfweb.com?Product=HD67174
www.adfweb.com?Product=HD67588
www.adfweb.com?Product=HD67589
www.adfweb.com?Product=HD67590
www.adfweb.com?Product=HD67591
www.adfweb.com?Product=HD67592
www.adfweb.com?Product=HD67593
www.adfweb.com?Product=HD67594
www.adfweb.com?Product=HD67595
www.adfweb.com?Product=HD67596
www.adfweb.com?Product=HD67597
www.adfweb.com?Product=HD67599
www.adfweb.com?Product=HD67627
www.adfweb.com?Product=HD67660
www.adfweb.com?Product=HD67663
www.adfweb.com?Product=HD67664
www.adfweb.com?Product=HD67682
www.adfweb.com?Product=HD67722
www.adfweb.com?Product=HD67744
www.adfweb.com?Product=HD67771
www.adfweb.com?Product=HD67807
www.adfweb.com?Product=HD67840
www.adfweb.com?Product=HD67871
www.adfweb.com?Product=HD67906
www.adfweb.com?Product=HD67945
www.adfweb.com?Product=HD67974
www.adfweb.com?Product=HD67B16
www.adfweb.com?Product=HD67B39
www.adfweb.com?Product=HD67B78
www.adfweb.com?Product=HD67C63
www.adfweb.com?Product=HD67D25
www.adfweb.com?Product=HD67E27
www.adfweb.com?Product=HD67E77
www.adfweb.com?Product=HD67F25
INFO:
www.adfweb.com
Pagina 1 di 26
(M-Bus)
(M-Bus Wireless)
(SNMP Agent)
(SNMP Manager)
(DMX)
(NMEA2000)
(Serial)
(Modbus Master)
(Modbus Slave)
(PROFIBUS Master)
(PROFIBUS Slave)
(CAN)
(CANopen)
(DeviceNet Master)
(J1939)
(S7comm)
(PROFINET Slave)
(Modbus TCP Slave)
(Modbus TCP Master)
(BACnet Slave)
(BACnet Master)
(IEC 61850 Server)
(IEC 61850 Client)
(KNX)
(DALI)
(IO-Link Master)
(HART)
(MQTT)
(IO-Link Slave)
(OPC UA Client)
(OPC UA Server)
(PROFINET Master)
(EnOcean)
(LoRaWAN)
(EtherCAT Slave)
(EtherCAT Master)
(LoRaWAN Gateway)
Phone +39.0438.30.91.31
Advertisement
Related Manuals for ADF Web HD67598-A1
Summary of Contents for ADF Web HD67598-A1
- Page 1 Converter EtherNet/IP to www.adfweb.com?Product=HD67077 (M-Bus) www.adfweb.com?Product=HD67091 (M-Bus Wireless) EtherNet/IP / DeviceNet Slave - www.adfweb.com?Product=HD67159 (SNMP Agent) Converter www.adfweb.com?Product=HD67174 (SNMP Manager) www.adfweb.com?Product=HD67588 (DMX) (Order Code: HD67598-A1) www.adfweb.com?Product=HD67589 (NMEA2000) www.adfweb.com?Product=HD67590 (Serial) www.adfweb.com?Product=HD67591 (Modbus Master) For Website information: www.adfweb.com?Product=HD67592 (Modbus Slave) www.adfweb.com?Product=HD67598 www.adfweb.com?Product=HD67593 (PROFIBUS Master) www.adfweb.com?Product=HD67594...
-
Page 2: Updated Documentation
User Manual EtherNet/IP / DeviceNet Slave - Converter Document code: MN67598_ENG Revision 1.002 Pagina 2 di 26 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: Page ... -
Page 3: Security Alert
User Manual EtherNet/IP / DeviceNet Slave - Converter Document code: MN67598_ENG Revision 1.002 Pagina 3 di 26 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for each individual application, legal and safety regulation. -
Page 4: Example Of Connection
User Manual EtherNet/IP / DeviceNet Slave - Converter Document code: MN67598_ENG Revision 1.002 Pagina 4 di 26 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual EtherNet/IP / DeviceNet Slave - Converter Document code: MN67598_ENG Revision 1.002 Pagina 5 di 26 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67598-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... - Page 6 Pagina 6 di 26 Industrial Electronic Devices CHARACTERISTICS: The HD67598-A1 is a EtherNet/IP / DeviceNet Master Converter. It allows the following characteristics: Up to 455 bytes in reading and 455 bytes in writing; Two-directional information between DeviceNet bus and EtherNet/IP bus;...
-
Page 7: Power Supply
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67598-A1 Caution: Not reverse the polarity power HD67598-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 8: Function Modes
User Manual EtherNet/IP / DeviceNet Slave - Converter Document code: MN67598_ENG Revision 1.002 Pagina 8 di 26 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’: The first, with Dip1 in Off position (factory setting), is used for the normal working of the device. The second, with Dip1 in On position, is used for upload the Project/Firmware. - Page 9 User Manual EtherNet/IP / DeviceNet Slave - Converter Document code: MN67598_ENG Revision 1.002 Pagina 9 di 26 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode 1: ON (green)
- Page 10 ETHERNET/IP: The EtherNet/IP connection must be made using Connector3 and/or Connector4 of HD67598-A1 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps.
- Page 11 User Manual EtherNet/IP / DeviceNet Slave - Converter Document code: MN67598_ENG Revision 1.002 Pagina 11 di 26 Industrial Electronic Devices DEVICENET: For terminate the CAN line with a 120Ω resistor it is necessary that the Dip1 of ‘Dip-Switch A’ is at ON position. Cable characteristics: DC parameter: Impedance...
- Page 12 User Manual EtherNet/IP / DeviceNet Slave - Converter Document code: MN67598_ENG Revision 1.002 Pagina 12 di 26 Industrial Electronic Devices USE OF COMPOSITOR SW67598: To configure the Converter, use the available software that runs with Windows called SW67598. It is downloadable on the site www.adfweb.com and its operation is described in this document.
-
Page 13: New Configuration / Open Configuration
User Manual EtherNet/IP / DeviceNet Slave - Converter Document code: MN67598_ENG Revision 1.002 Pagina 13 di 26 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “EtherNet/IP / DeviceNet Slave - Converter”... -
Page 14: Software Options
User Manual EtherNet/IP / DeviceNet Slave - Converter Document code: MN67598_ENG Revision 1.002 Pagina 14 di 26 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. - Page 15 User Manual EtherNet/IP / DeviceNet Slave - Converter Document code: MN67598_ENG Revision 1.002 Pagina 15 di 26 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
-
Page 16: Set Communication
User Manual EtherNet/IP / DeviceNet Slave - Converter Document code: MN67598_ENG Revision 1.002 Pagina 16 di 26 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, EtherNet/IP and DeviceNet. By Pressing the “Set Communication” button from the main window for SW67598 (Fig. 2) the window “Set Communication”... -
Page 17: Update Device
User Manual EtherNet/IP / DeviceNet Slave - Converter Document code: MN67598_ENG Revision 1.002 Pagina 17 di 26 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. If you don’t know the actual IP address of the device you have to use this procedure: Turn OFF the Device;... - Page 18 User Manual EtherNet/IP / DeviceNet Slave - Converter Document code: MN67598_ENG Revision 1.002 Pagina 18 di 26 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67598 device. Warning: If Fig.
-
Page 19: Mechanical Dimensions
User Manual EtherNet/IP / DeviceNet Slave - Converter Document code: MN67598_ENG Revision 1.002 Pagina 19 di 26 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 6: Mechanical dimensions scheme for HD67598-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 20: Ordering Informations
Enclosure Type A: 1M, 35mm DIN Rail mounting Device Family HD67598: EtherNet/IP / DeviceNet Slave - Converter Order Code: HD67598-A1 Converter EtherNet/IP / DeviceNet Slave Converter ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V DC Order Code: AC34012 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –... -
Page 21: Plc Configuration
User Manual EtherNet/IP / DeviceNet Slave - Converter Document code: MN67598_ENG Revision 1.002 Pagina 21 di 26 Industrial Electronic Devices PLC CONFIGURATION: The configuration and commissioning of the EtherNet/IP Converter as described on the following pages was accomplished with the help of the “RSLogix 5000”... - Page 22 “HD67598” and the IP-address assigned is 192.168.0.5. For the Comm Format “Data – SINT” shall be selected as the data type. The HD67598-A1 can uses up to 500 bytes for input assembly instance 101 and 500 bytes for output assembly instance 100.
- Page 23 User Manual EtherNet/IP / DeviceNet Slave - Converter Document code: MN67598_ENG Revision 1.002 Pagina 23 di 26 Industrial Electronic Devices 4) After the configuration is completed, the controller tags are created. ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
- Page 24 User Manual EtherNet/IP / DeviceNet Slave - Converter Document code: MN67598_ENG Revision 1.002 Pagina 24 di 26 Industrial Electronic Devices 5) With “RSLinks Classic Lite”, after have done a network scan (RSWho), and finding the EtherNet/IP device, it is possible to load the EDS file for the device in order to have the “Module Info”...
-
Page 25: Other Regulations And Standards
User Manual EtherNet/IP / DeviceNet Slave - Converter Document code: MN67598_ENG Revision 1.002 Pagina 25 di 26 Industrial Electronic Devices DISCLAIMER All technical content within this document can be modified without notice. The content of the document content is a recurring audit. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 26: Warranties And Technical Support
User Manual EtherNet/IP / DeviceNet Slave - Converter Document code: MN67598_ENG Revision 1.002 Pagina 26 di 26 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
