UPDATE DEVICE:
By pressing the
"Update
Device" button it is possible to load the created Configuration into the device; and also the Firmware, if is
necessary.
In order to load the parameters or update the firmware in the gateway, follow these instructions:
Turn off the Device;
Connect the Null Modem Cable form your PC to the Gateway;
Put Dip2 of Dip-Switch A at "ON" position (see "FUNCTION MODES" section);
Select the
"COM
port" and press the "Connect" button;
Turn on the device;
Check the BOOT Led. It must blink quickly (see "LEDS" section);
Press the "Next" button;
Select which operations you want to do.
Press the
"Execute update
When all the operations are "OK" turn off the device;
Put Dip2 of Dip-Switch A at "OFF" position;
Disconnect the RS232 Cable;
Turn on the device.
At this point the configuration/firmware on the device is correctly update.
ADFweb.com Srl – IT31010 – Mareno – Treviso
firmware" button to start the upload;
User Manual DeviceNet Slave / PROFIBUS Slave
Document code: MN67574_ENG
Revision 1.001

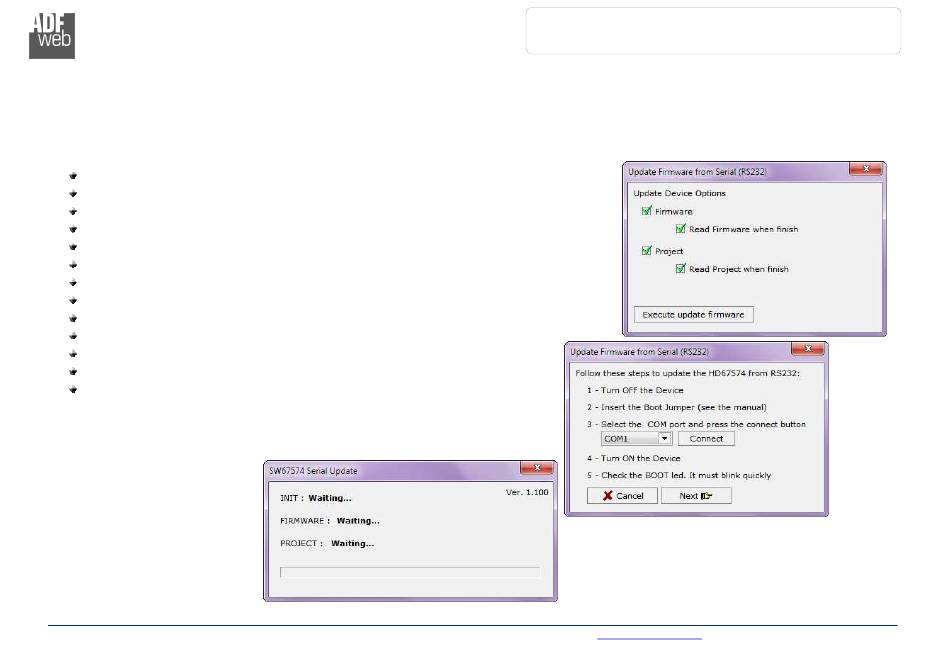

Figure 4: "Update Device" windows
