Industrial Electronic Devices
User Manual
Revision 1.002
English

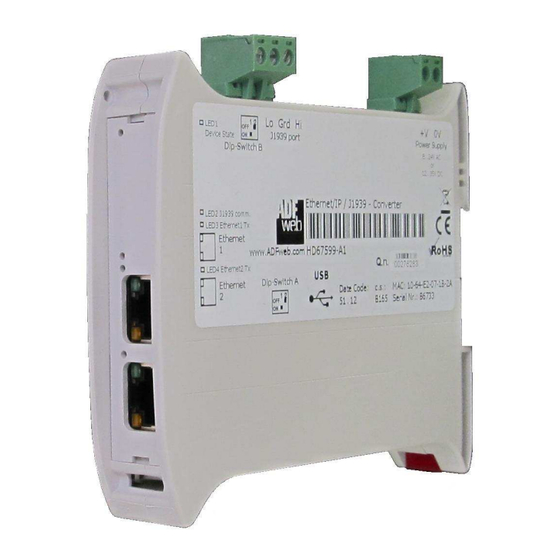

EtherNet/IP / NMEA 2000 - Converter
(Order Code: HD67589-A1)
for Website information:
www.adfweb.com?Product=HD67589
for Price information:
www.adfweb.com?Price=HD67589-A1
Benefits and Main Features:
Very easy to configure
Electrical isolation
Two EtherNet/IP ports
Temperature range: -40°C/85°C (-40°F/185°F)
ADFweb.com Srl – IT31010 – Mareno – Treviso
Other
Products
Axis Solutions Pvt Ltd is the Authorized Distributor of
Axis Solutions Pvt Ltd is the Authorized Distributor of
Axis Solutions Pvt Ltd is the Authorized Distributor of
Axis Solutions Pvt Ltd is the Authorized Distributor of
www.axisindia.in | info@axisindia.in
www.axisindia.in | info@axisindia.in
www.axisindia.in | info@axisindia.in
www.axisindia.in | info@axisindia.in
User Manual EtherNet/IP / NMEA 2000
Document code: MN67589_ENG
For others Ethernet/IP products see also the following link:
Converter EtherNet/IP to
www.adfweb.com?Product=HD67077
www.adfweb.com?Product=HD67595
www.adfweb.com?Product=HD67597
www.adfweb.com?Product=HD67598
www.adfweb.com?Product=HD67599
www.adfweb.com?Product=HD67590
www.adfweb.com?Product=HD67590
www.adfweb.com?Product=HD67591
www.adfweb.com?Product=HD67591
www.adfweb.com?Product=HD67592
www.adfweb.com?Product=HD67592
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
in India
in India
in India
in India
Revision 1.002
Pagina 1 di 25
(M-Bus)
(CAN)
(DeviceNet Master)
(DeviceNet Slave)
(J1939)
(Serial RS232)
(Serial RS485)
(Modbus Master RS232)
(Modbus Master RS485)
(Modbus Slave RS232)
(Modbus Slave RS485)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Related Manuals for ADF Web HD67589-A1
Summary of Contents for ADF Web HD67589-A1
- Page 1 Revision 1.002 Pagina 1 di 25 Industrial Electronic Devices User Manual Revision 1.002 English EtherNet/IP / NMEA 2000 - Converter (Order Code: HD67589-A1) for Website information: www.adfweb.com?Product=HD67589 for Price information: www.adfweb.com?Price=HD67589-A1 Benefits and Main Features: Very easy to configure Electrical isolation...
-
Page 2: Updated Documentation
User Manual EtherNet/IP / NMEA 2000 Document code: MN67589_ENG Revision 1.002 Pagina 2 di 25 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: Page Updated INDEX... -
Page 3: Security Alert
User Manual EtherNet/IP / NMEA 2000 Document code: MN67589_ENG Revision 1.002 Pagina 3 di 25 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for each individual application, legal and safety regulation. -
Page 4: Example Of Connection
User Manual EtherNet/IP / NMEA 2000 Document code: MN67589_ENG Revision 1.002 Pagina 4 di 25 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual EtherNet/IP / NMEA 2000 Document code: MN67589_ENG Revision 1.002 Pagina 5 di 25 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67589-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... - Page 6 Pagina 6 di 25 Industrial Electronic Devices CHARACTERISTICS: The HD67589-A1 is a EtherNet/IP / NMEA 2000 Converter. It allows the following characteristics: Up to 500 bytes in reading and 500 bytes in writing; Two-directional information between NMEA 2000 bus and EtherNet/IP bus;...
-
Page 7: Power Supply
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67589-A1 Caution: Not reverse the polarity power HD67589-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 8: Function Modes
User Manual EtherNet/IP / NMEA 2000 Document code: MN67589_ENG Revision 1.002 Pagina 8 di 25 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip2 of Dip-Switch B’: The first, with ‘Dip2 of Dip-Switch B’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip2 of Dip-Switch B’... - Page 9 User Manual EtherNet/IP / NMEA 2000 Document code: MN67589_ENG Revision 1.002 Pagina 9 di 25 Industrial Electronic Devices LEDS: The device has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state...
- Page 10 ETHERNET/IP: The EtherNet/IP connection must be made using Connector3 and/or Connector4 of HD67589-A1 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps.
- Page 11 User Manual EtherNet/IP / NMEA 2000 Document code: MN67589_ENG Revision 1.002 Pagina 11 di 25 Industrial Electronic Devices NMEA 2000: For terminate the NMEA 2000 line with a 120Ω resistor it is necessary that the Dip1 of ‘Dip-Switch A’ is at ON position. Cable characteristics: DC parameter: Impedance...
-
Page 12: New Project / Open Project
User Manual EtherNet/IP / NMEA 2000 Document code: MN67589_ENG Revision 1.002 Pagina 12 di 25 Industrial Electronic Devices USE OF COMPOSITOR SW67589: To configure the Converter, use the available software that runs with Windows, called SW67589. downloadable site www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on our web site). -
Page 13: Set Communication
User Manual EtherNet/IP / NMEA 2000 Document code: MN67589_ENG Revision 1.002 Pagina 13 di 25 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, EtherNet/IP and NMEA 2000. By Pressing the “Set Communication” button from the main window for SW67589 (Fig. 2) the window “Set Communication”... -
Page 14: Receive Frames
User Manual EtherNet/IP / NMEA 2000 Document code: MN67589_ENG Revision 1.002 Pagina 14 di 25 Industrial Electronic Devices RECEIVE FRAMES: By pressing the “Receive Frames” button from the main window for SW67589 (Fig. 2) the window “Receive Frames” appears (Fig. 4). The data of the columns have the following meanings: In the field “PGN”... -
Page 15: Send Frames
User Manual EtherNet/IP / NMEA 2000 Document code: MN67589_ENG Revision 1.002 Pagina 15 di 25 Industrial Electronic Devices SEND FRAMES: By pressing the “Transmit Frames” button from the main window for SW67589 (Fig. 2) the window “Transmit Frames” appears (Fig. 5). The data of the columns have the following meanings: In the field “Priority”... - Page 16 User Manual EtherNet/IP / NMEA 2000 Document code: MN67589_ENG Revision 1.002 Pagina 16 di 25 Industrial Electronic Devices UPDATE DEVICE VIA UDP: By pressing the “Update Device via UDP” button it is possible to load the created Configuration into the device; and also the Firmware, if is necessary. If you don’t know the actual IP address of the device you have to use this procedure: Turn off the Device;...
- Page 17 At this point the configuration/firmware on the device is correctly update. Note: When you install a new version of the software it is better if the first time you do the update of the Firmware in the HD67589-A1 device. Note: When you receive the device, for the first time, you have to update also the Firmware in the HD67589-A1 device.
-
Page 18: Mechanical Dimensions
User Manual EtherNet/IP / NMEA 2000 Document code: MN67589_ENG Revision 1.002 Pagina 18 di 25 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 10: Mechanical dimensions scheme for HD67589-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 19: Ordering Informations
User Manual EtherNet/IP / NMEA 2000 Document code: MN67589_ENG Revision 1.002 Pagina 19 di 25 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67589 – A 1 Connectors Type 1: Removable 5mm Screw Terminal Enclosure Type A: 1M, 35mm DIN Rail mounting Device Family... -
Page 20: Plc Configuration
User Manual EtherNet/IP / NMEA 2000 Document code: MN67589_ENG Revision 1.002 Pagina 20 di 25 Industrial Electronic Devices PLC CONFIGURATION: The configuration and commissioning of the EtherNet/IP Converter as described on the following pages was accomplished with the help of the “RSLogix 5000”... - Page 21 “HD67589” and the IP-address assigned is 192.168.0.5. For the Comm Format “Data – SINT” shall be selected as the data type. The HD67589-A1 can uses up to 500 bytes for input assembly instance 101 and 500 bytes for output assembly instance 100.
- Page 22 User Manual EtherNet/IP / NMEA 2000 Document code: MN67589_ENG Revision 1.002 Pagina 22 di 25 Industrial Electronic Devices 4) After the configuration is completed, the controller tags are created. ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
- Page 23 User Manual EtherNet/IP / NMEA 2000 Document code: MN67589_ENG Revision 1.002 Pagina 23 di 25 Industrial Electronic Devices 5) With “RSLinks Classic Lite”, after have done a network scan (RSWho), and finding the EtherNet/IP device, it is possible to load the EDS file for the device in order to have the “Module Info”...
-
Page 24: Other Regulations And Standards
User Manual EtherNet/IP / NMEA 2000 Document code: MN67589_ENG Revision 1.002 Pagina 24 di 25 Industrial Electronic Devices DISCLAIMER All technical content within this document can be modified without notice. The content of the document content is a recurring audit. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 25: Warranties And Technical Support
User Manual EtherNet/IP / NMEA 2000 Document code: MN67589_ENG Revision 1.002 Pagina 25 di 25 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: 1) Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
