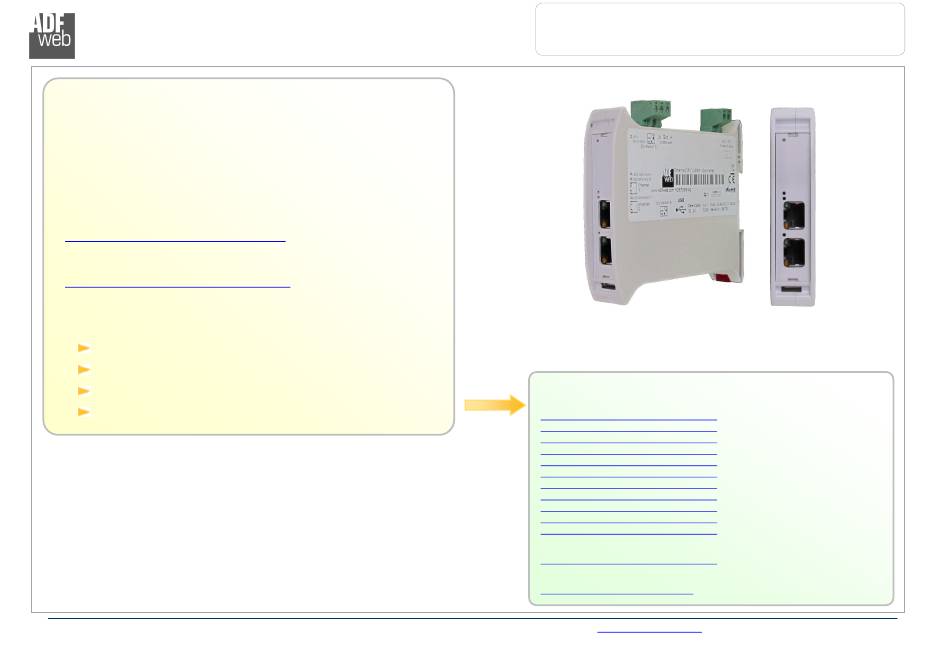

Industrial Electronic Devices
User Manual
Revision 1.012
English
EtherNet/IP / CAN - Converter
(Order Code: HD67595-A1)
for Website information:
www.adfweb.com?Product=HD67595
for Price information:
www.adfweb.com?Price=HD67595-A1
Benefits and Main Features:
Very easy to configure
Electrical isolation
Two EtherNet/IP ports
Temperature range: -40°C/85°C (-40°F/185°F)
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual EtherNet/IP / CAN - Converter
Document code: MN67595_ENG
Other
For others EtherNet/IP products see also the following link:
Products
Converter EtherNet/IP to
www.adfweb.com?Product=HD67077
www.adfweb.com?Product=HD67597
www.adfweb.com?Product=HD67598
www.adfweb.com?Product=HD67599
www.adfweb.com?Product=HD67589
www.adfweb.com?Product=HD67590
www.adfweb.com?Product=HD67590
www.adfweb.com?Product=HD67591
www.adfweb.com?Product=HD67591
www.adfweb.com?Product=HD67592
www.adfweb.com?Product=HD67592
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Revision 1.012
Pagina 1 di 27
(M-Bus)
(DeviceNet Master)
(DeviceNet Slave)
(J1939)
(NMEA2000)
(Serial RS232)
(Serial RS485)
(Modbus Master RS232)
(Modbus Master RS485)
(Modbus Slave RS232)
(Modbus Slave RS485)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Related Manuals for ADF Web HD67595-A1
Summary of Contents for ADF Web HD67595-A1
- Page 1 Revision 1.012 Pagina 1 di 27 Industrial Electronic Devices User Manual Revision 1.012 English EtherNet/IP / CAN - Converter (Order Code: HD67595-A1) for Website information: www.adfweb.com?Product=HD67595 for Price information: www.adfweb.com?Price=HD67595-A1 Benefits and Main Features: Very easy to configure Electrical isolation...
-
Page 2: Table Of Contents
User Manual EtherNet/IP / CAN - Converter Document code: MN67595_ENG Revision 1.012 Pagina 2 di 27 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX Updated UPDATED DOCUMENTATION... -
Page 3: Security Alert
User Manual EtherNet/IP / CAN - Converter Document code: MN67595_ENG Revision 1.012 Pagina 3 di 27 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for each individual application, legal and safety regulation. -
Page 4: Example Of Connection
User Manual EtherNet/IP / CAN - Converter Document code: MN67595_ENG Revision 1.012 Pagina 4 di 27 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual EtherNet/IP / CAN - Converter Document code: MN67595_ENG Revision 1.012 Pagina 5 di 27 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67595-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 6: Characteristics
Pagina 6 di 27 Industrial Electronic Devices CHARACTERISTICS: The HD67595-A1 is a EtherNet/IP / CAN Converter. It allows the following characteristics: Up to 500 bytes in reading and 500 bytes in writing; Triple isolation between CAN - Power Supply, CAN - Ethernet, Power Supply - Ethernet. -
Page 7: Power Supply
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67595-A1 Caution: Not reverse the polarity power HD67595-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 8: Function Modes
User Manual EtherNet/IP / CAN - Converter Document code: MN67595_ENG Revision 1.012 Pagina 8 di 27 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip2 of Dip-Switch B’: The first, with ‘Dip2 of Dip-Switch B’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip2 of Dip-Switch B’... -
Page 9: Leds
User Manual EtherNet/IP / CAN - Converter Document code: MN67595_ENG Revision 1.012 Pagina 9 di 27 Industrial Electronic Devices LEDS: The device has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 10: Ethernet/Ip
ETHERNET/IP: The EtherNet/IP connection must be made using Connector3 and/or Connector4 of HD67595-A1 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. -
Page 11: Can
User Manual EtherNet/IP / CAN - Converter Document code: MN67595_ENG Revision 1.012 Pagina 11 di 27 Industrial Electronic Devices CAN: For terminate the CAN line with a 120Ω resistor it is necessary that the Dip1 of ‘Dip-Switch A’ is at ON position. Cable characteristics: DC parameter: Impedance... -
Page 12: Use Of Compositor Sw67595
User Manual EtherNet/IP / CAN - Converter Document code: MN67595_ENG Revision 1.012 Pagina 12 di 27 Industrial Electronic Devices USE OF COMPOSITOR SW67595: To configure the Converter, use the available software that runs with Windows, called SW67595. downloadable site www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on our web site). -
Page 13: Set Communication
User Manual EtherNet/IP / CAN - Converter Document code: MN67595_ENG Revision 1.012 Pagina 13 di 27 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, EtherNet/IP and CAN. By Pressing the “Set Communication” button from the main window for SW67595 (Fig. 2) the window “Set Communication”... -
Page 14: Receive Frames
User Manual EtherNet/IP / CAN - Converter Document code: MN67595_ENG Revision 1.012 Pagina 14 di 27 Industrial Electronic Devices RECEIVE FRAMES: By pressing the “Receive Frames” button from the main window for SW67595 (Fig. 2) the “Receive Frames” window appears (Fig. 4). The COB inserted in this table contains the Output data of EtherNet/IP. -
Page 15: Info Receive
User Manual EtherNet/IP / CAN - Converter Document code: MN67595_ENG Revision 1.012 Pagina 15 di 27 Industrial Electronic Devices INFO RECEIVE: By pressing the “Info Receive” button from the main window for SW67595 (Fig. 2) the “Receive Frames Info” window appears (Fig. 5). In the “COB ID”... -
Page 16: Send Frame
User Manual EtherNet/IP / CAN - Converter Document code: MN67595_ENG Revision 1.012 Pagina 16 di 27 Industrial Electronic Devices SEND FRAMES: By pressing the “Send Frames” button from the main window for SW67595 (Fig. 2) the “Send frames” window appears (Fig. 6). The COB inserted in this table contains the Input data of EtherNet/IP. -
Page 17: Info Send
User Manual EtherNet/IP / CAN - Converter Document code: MN67595_ENG Revision 1.012 Pagina 17 di 27 Industrial Electronic Devices INFO SEND: By pressing the “Info Send” button from the main window for SW67595 (Fig. 2) the “Send Frames Info” window appears (Fig. 7). In the “COB ID”... -
Page 18: Update Device
User Manual EtherNet/IP / CAN - Converter Document code: MN67595_ENG Revision 1.012 Pagina 18 di 27 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button it is possible to load the created Configuration into the device; and also the Firmware, if is necessary. If you don’t know the actual IP address of the device you have to use this procedure: Turn off the Device;... - Page 19 At this point the configuration/firmware on the device is correctly update. Note: When you install a new version of the software it is better if the first time you do the update of the Firmware in the HD67595-A1 device. Note: When you receive the device, for the first time, you have to update also the Firmware in the HD67595-A1 device.
-
Page 20: Mechanical Dimensions
User Manual EtherNet/IP / CAN - Converter Document code: MN67595_ENG Revision 1.012 Pagina 20 di 27 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 12: Mechanical dimensions scheme for HD67595-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
