3. Terminate the Speaker Cables from the
PVCA 452 Amplifier.

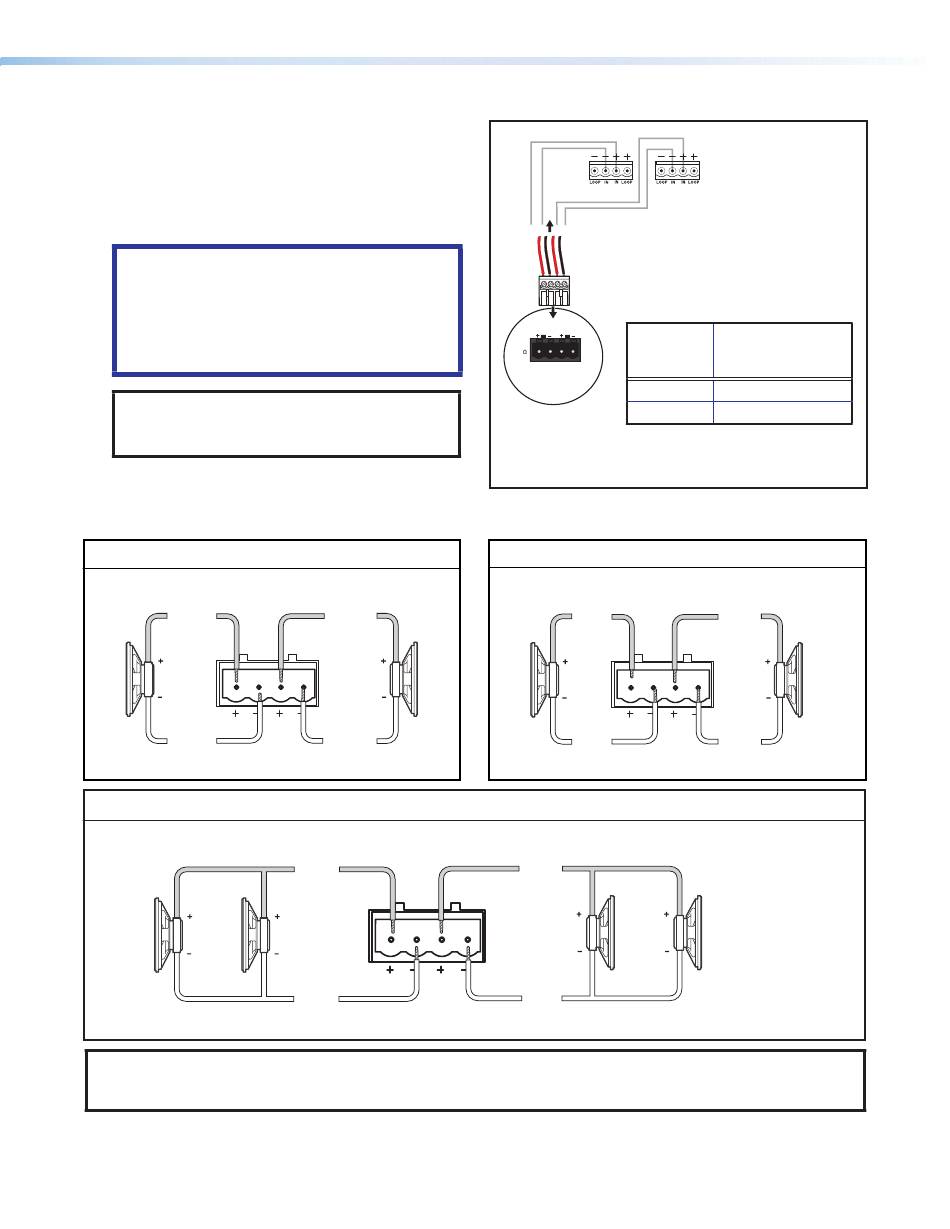

To terminate the cable, strip the end of the cable
0.2 inch (5 mm) and secure the wires into the
supplied 4-pole captive screw connector (see
image at right).
ATTENTION:
• DO NOT short the speaker wires together
as it may damage the controller amplifier.
• NE créez PAS de court-circuit entre
les fils de l'enceinte ; vous risqueriez
d'endommager l'amplificateur/contrôleur.
NOTE: The correct speaker impedance loading
must be observed when setting up a speaker
system. See images below for examples.
Stereo output
AMPLIFIED OUTPUTS
Stereo L+
L
Stereo L–
8
ohms
4 Ohm Total Load
NOTE: By default, the amplifier is set for dual mono output. Use the Product Configuration Software change
the setting to stereo if desired. For full details, see the PVCA 452 User Guide, available online at
www.extron.com.
8 Ohms
Stereo R+
R
Stereo R–
8 Ohm Load
Stereo or dual mono output using parallel speaker wiring
AMPLIFIED OUTPUTS
Mono +
or
Stereo L+
8
ohms
L R
Mono –
or
Stereo L-
PlenumVault Direct View Systems • Installing the FF 120 Ceiling Speakers
Speaker 1 Speaker 2
Audio output
to speakers
4-pole Captive
Screw Connector
AMPLIFIED OUTPUT
Speaker
Wire Color
4/8
L R
PVCA 452
Red
Rear Panel
Black
Wire the captive screw connector.
Dual mono output
AMPLIFIED OUTPUTS
8 Ohms
Mono +
L R
Mono –
Two 8 ohm speakers
wired in parallel
Mono +
equal a 4 ohm load.
or
Stereo R+
8
ohms
Mono –
or
Stereo R-
4 Ohm Total Load
To PVCA 452
Terminal
(Left and Right)
Positive (+)
Negative (-)
Mono +
Mono –
8 Ohm Load
8
ohms
