Inventory — PlenumVault Direct View System

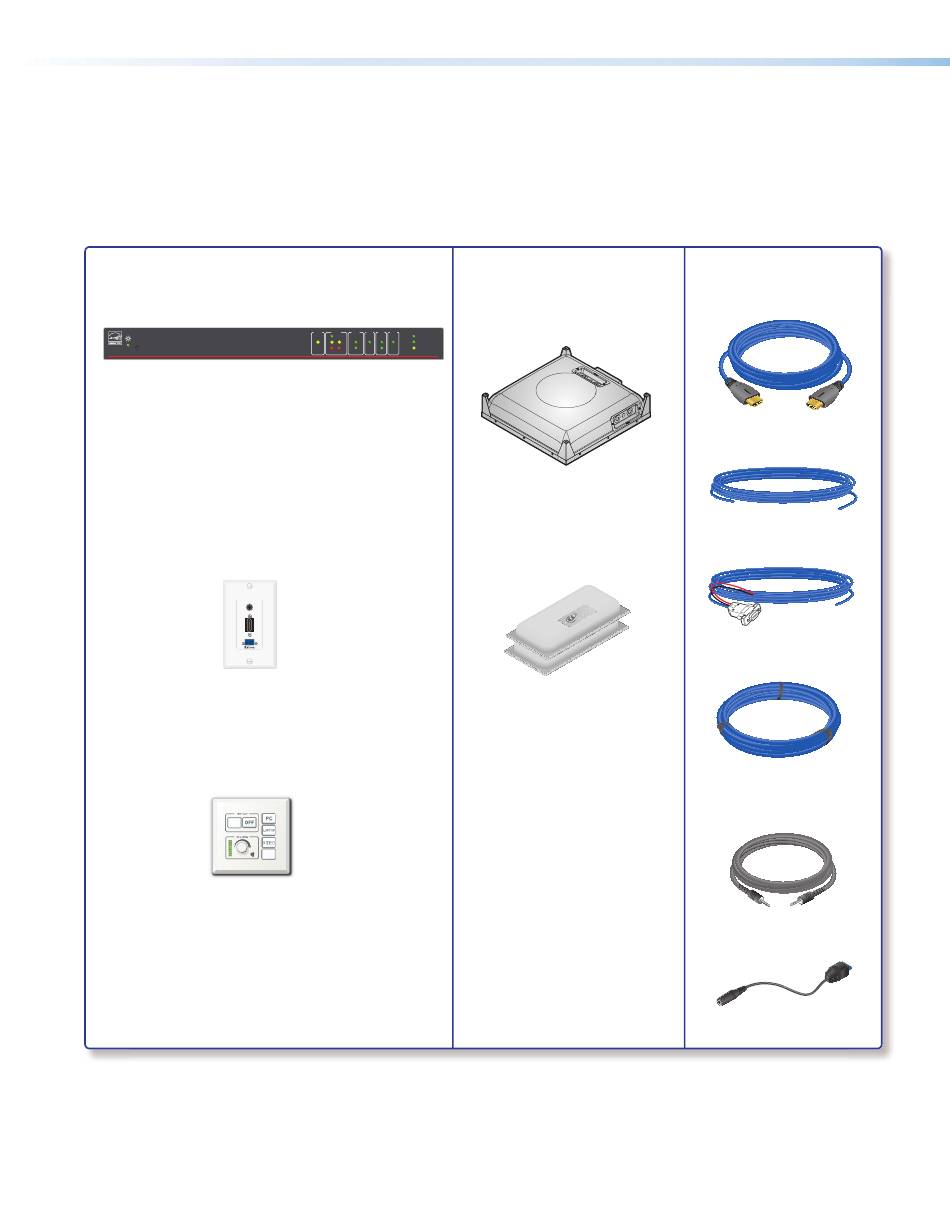

The standard PVDV 101 PlenumVault Direct View System (part number 42-300-01)
contains the following items and their corresponding hardware. Check to ensure that all
items have been received. Actual products included in each kit may vary as system kits are
customizable.
PVCA 452 Controller Amplifier
(60-1865-01)
R CONFIG
e
WPD 110 A
HDMI Pass-Thru Wallplate
(70-726-63)
HDMI
A B C
EBP 100 Button Panel EBP 100 Button Panel
(60-1388-01)
ON ON
LAPTOP
Extron Extron
6 PlenumVault Direct View Systems • Introduction
PAGE eBUS COM IR/S I/O CEC
SENSOR
L 1000
LIMIT
B Tx 1 LINK
E Rx 2 ACT
OVER
PVCA 452
MUTE
PVM 220
PlenumVault Enclosure
(70-901-01)
FF 120 Speakers (1 Pair)
(42-120-03)
HDMI Pro Plenum, 15 ft
(26-692-15)
STP20-2P, 35 ft (26-707-35)
MLC IR, 35 ft (26-708-35)
SPK 18, 35ft (Qty. 2) (26-627-35)
3.5 mm Audio Cable, 12ft
(26-571-06)
CSM 6 Captive Screw Adapter
(26-620-01)
