Before You Begin — Planning the Installation
Before installation is started, you must consider several major factors to ensure that the
installation process is as smooth and trouble free as possible, and so that the final finished
project meets the needs of the customers, users, audiences, and installer.
The installation considerations on the following pages, though not comprehensive, should be
consulted to help ensure that key installation aspects have been considered.

Americans with Disabilities Act (ADA) Compliance

When planning where to install the PlenumVault Direct View System, consider factors
affecting accessibility of the system such as the height of devices from the floor (for example
the EBP button panels), distance from obstructions, and how far a user must reach to press
any device buttons.
For guidelines, see sections 307 ("Protruding Objects") and 308 ("Reach Ranges") of the
2010 ADA Standards for Accessible Design available at:
https://archive.ada.gov/regs2010/2010ADAStandards/2010ADAStandards.pdf

Room Considerations

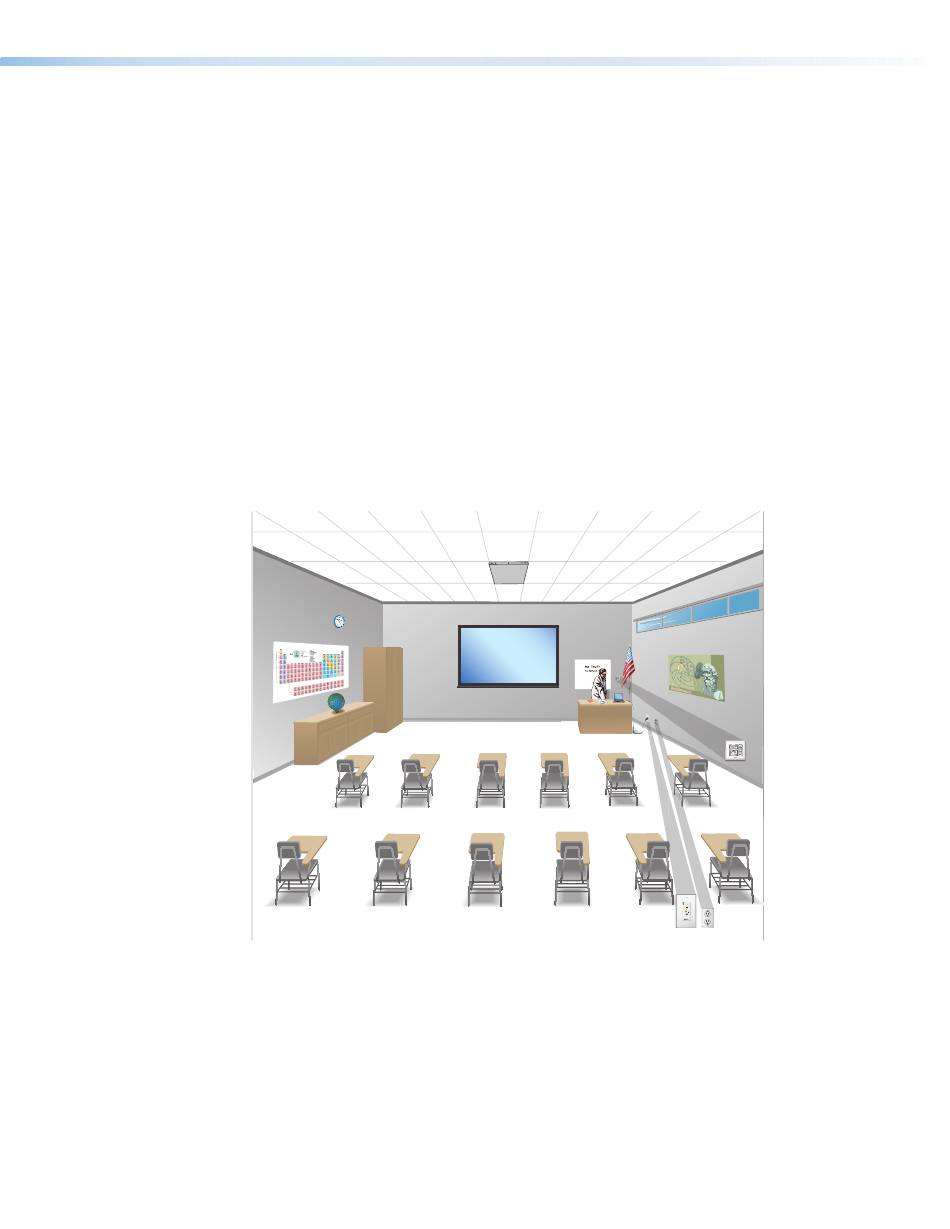

The application diagram below shows a typical classroom installation.
Figure 9.
Room factors to be considered should include, but are not confined to:
•
Typical Classroom Installation
Room size, orientation, and layout:
Audience factors (for example: number, ADA requirements, seating
•
arrangements)
Existing installed furniture (bookcases, racks, cabinets, workbenches, sinks, and
•
so forth)
Windows, doors, and support pillar locations in relationship to the proposed
•
display location
